Onkyo TX-NR1010 Quick Start Manual

Quick Start Guide

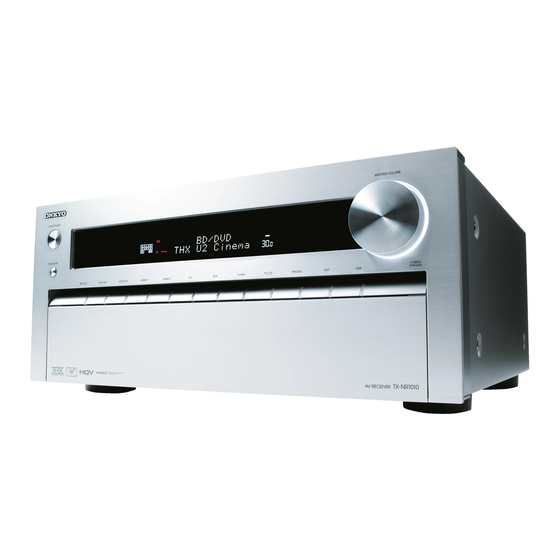

TX-NR1010
Supplied Accessories
Make sure you have the following accessories:
a Indoor FM antenna *1
b AM loop antenna *1
c Speaker cable labels
d Remote controller and two batteries (AA/R6)
e Power cord
(Plug type varies from country to country.)
f Speaker setup microphone
The AV receiver can automatically perform speaker
and surround settings, so that you can easily enjoy a
surround sound tailored to your listening environment.
Connect the supplied microphone to the AV receiver
and follow the on-screen instructions.
When performing automatic speaker setup, connect
your TV to the AV receiver and make the room as
quiet as possible.
*1 (North American models)
Two AM loop antennas and two Indoor FM antennas
are supplied.
Note
Before connecting the power cord, connect all of your speakers and AV components.
1. Connecting Your Speakers
1 2 3 9 10 11 12 6
4 5 7 8
SN 29401234
(C) Copyright 2012 Onkyo Sound & Vision Corporation Japan. All rights reserved.
a Using the Remote Controller
b
c
Batteries (AA/R6)
d
Remote control sensor
e
f
Approx. 16 ft. (5 m)
1 2 Front speakers
3 Center speaker
4 5 Surround speakers
6
Subwoofer(s)
7 8 Surround back speakers
9 10
Front high speakers
11 12 Front wide speakers
Speaker Configuration
5.2-channel: 1 2 3 4 5 6
7.2-channel: 1 2 3 4 5 6 + 7 8
7.2-channel: 1 2 3 4 5 6 + 9 10
7.2-channel: 1 2 3 4 5 6 +
11 12
9.2-channel *2 : 1 2 3 4 5 6 + 7 8 + 9
10
9.2-channel *2 : 1 2 3 4 5 6 + 7 8 +
11 12
9.2-channel *2 : 1 2 3 4 5 6 + 9 +
10 11 12
*2 By adding an external amplifier to the 7.2-channel configuration,
you can enjoy 9.2-channel playback. For details, please refer to
the instruction manual.
* 2 9 4 0 1 2 3 4 *
Please connect 1 , 2 , 3 , 4 , 5 and 6 for 5.1-channel surround.
10
Front high
speaker R
Red
AV receiver
Powered
subwoofer
6
*3 The level and distance can be set individually for each output. If you're using only one subwoofer, connect it to SW1 PRE OUT.
E
n
12 2
Front wide Front
speaker R speaker R
3
Center speaker
Red Red Green
*3
Gray Tan Brown
Surround Surround back Surround back
speaker R speaker R speaker L
5 8 7
1/2''-5/8'' (12-15mm)
- 2 -
1 11 9
Front Front wide Front high
speaker L speaker L speaker L
White White White
Blue The number of
terminals/jacks and
their shapes vary
from country to
country.
Surround
speaker L
4
