Onkyo TX-NR5010 Specifications

2012 NEW PRODUCT RELEASE

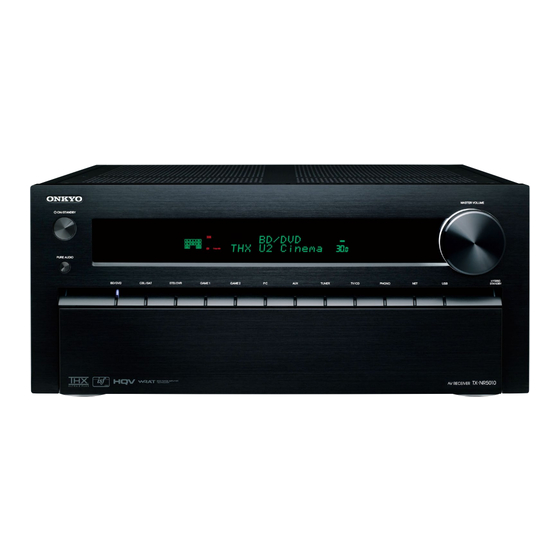

TX-NR5010
Tradition Meets Technology in Our Stunning New Flagship Model
The culmination of nearly 70 years' audio engineering experience, our flagship model celebrates Onkyo's proud heritage while pushing the
boundaries of technology even further. Behind the thick anti-resonant exterior panels, you'll find a massive toroidal transformer—assisted by
separate transformers for audio and video processing—to power the Three-Stage Inverted Darlington Circuitry. Both are fundamental to achieving
THX Ultra2 Plus certification. Crucial details such as the premium 192 kHz/32-bit DACs, gold-plated speaker posts and terminals, and differential
®
DAC mode will not escape the audiophile's attention. Nor will the Audyssey MultEQ
is incomparably good, with technology from HQV
11.4-channel pre-outs, and powered audio in three zones, your entertainment options extend throughout the home, yet are easily managed with
our convenient remote apps and HDMI-enabled GUI. A total of 11 HDMI ports (including MHL
connections allow your media to be played with exhilarating power and accuracy. This iconic blend of phenomenal sound and advanced technology
is why more home cinema experts own an Onkyo.
ADVANCED FEATURES
• THX Ultra2 Plus Certified
® ™
• Massive Toroidal Transformer and Two Separate Transformers
for Audio and Video Processing
• Anti-Vibration Construction with Separate Aluminum Side Panels
• VLSC (Vector Linear Shaping Circuitry)
™
• High-Quality HQV Vida VHD1900 Video Processor
® ™
• HDMI Video Upscaling to 4K with Qdeo Technology by
® ™
Marvell
• ISF (Imaging Science Foundation) Video Calibration for Optimal
Video Performance
• DTS Neo:X , Audyssey DSX , and Dolby Pro Logic
™ ® ®
Expanded Surround Channels
• Input Source Preview with InstaPrevue Technology
™
• Audyssey MultEQ XT32 for Room Acoustic Correction
®
• Internet Radio and Cloud Music Streaming Service
Connectivity (Last.fm, Spotify, AUPEO!, Simfy, vTuner)*
• Supports Onkyo Remote Apps for iPod touch/iPhone*
Android Phone*
3
• Zone 2 HDMI Output for HD Video in a Second Room
• Digital Processing Crossover Network to Cancel Crossover
Interference
• Gold-Plated, Machined Solid Brass, 19 mm-Pitch Audio Inputs
(TV/CD and Phono)
• Gold-Plated Speaker Posts and A/V Terminals
• Gold-Plated HDMI Terminals (2 Inputs and 1 Output Only)
*1 Availability of services depends on region. Some services may require a firmware
update. Availability of third-party services advertised here is accurate at the time of
printing, but may be subject to change without notice. *2 Compatible with iPod touch
(3rd generation or later) and iPhone 3GS or later. All models require iOS 4.2 or later.
*3 Requires Android OS 2.1 or later.
9.2-Channel Network A/V Receiver
, Qdeo , and ISF upscaling video sources to 4K. With HDMI
® ™
AMPLIFIER FEATURES
• 220 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC);
280 W/Ch (6 Ω, 1 kHz, 1 Channel Driven, JEITA)
• Isolated Power-Amp and Pre-Amp Block
• WRAT (Wide Range Amplifier Technology)
• Three-Stage Inverted Darlington Circuitry
• H.C.P.S. (High Current Power Supply) Massive High Power
Transformer
• Discrete Output Stage Circuitry
• Optimum Gain Volume Circuitry
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology
IIz for
®
• Bi-Amping Capability
PROCESSING FEATURES
• HDMI Support for 3D, Audio Return Channel, DeepColor
x.v.Color , LipSync, Dolby TrueHD, DTS-HD Master Audio
™ ®
1 DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
and • 7 x TI Burr-Brown 192 kHz/32-Bit DACs
2
• Differential DAC Mode to Double Processing Power for up to
5.1 Channels
• Advanced 32-Bit Processing DSP Chip
• 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
• Advanced Music Optimizer for Compressed Digital Music Files
CONNECTION FEATURES
• 9 HDMI Inputs (1 Front/8 Rear) and 2 Outputs
• MHL (Mobile High-Definition Link) for Smart Phone Content
™
on HDTV
• 2 USB Ports (1 Front/1 Rear)
XT32 and DTS Neo:X systems. Video processing
® ™
support for two displays,
®
for smart phone), DLNA, and ample legacy
™
• Direct Digital Connection of iPod/iPhone via Front-Panel
USB Port
• Compatible with Optional UWF-1 Wireless LAN Adapter and
UBT-1 Bluetooth USB Adapter
• Playback of Audio Files Through Local Network
(MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC,
Apple Lossless, DSD, LPCM)
• 2 Component Video Inputs and 1 Output
• 5 Composite Video Inputs and 1 Output
• 7 Digital Audio Inputs (4 Optical and 3 Coaxial)
• 7 Analog Audio Inputs and 1 Phono Input
• Powered Zone 2/3 and Zone 2/3 Line-Outs for Distributed
Audio Playback in Multiple Rooms
• 11.4 Multichannel Pre-Outs
• Zone 2 Video Output (Composite)
,
™
• Analog RGB Video Input (D-sub, 15 pin) for PC
,
™
• RS-232 Port, IR Input/Output, and 12 V Trigger Outs (Zone 2/3)
OTHER FEATURES
• Audyssey Dynamic EQ and Audyssey Dynamic Volume
®
• Dolby Volume for Reference-Quality Listening at Any Volume
®
• Overlaid On-Screen Display (OSD) with Quick Set-Up and
Home Menu
• Hybrid Standby to Reduce Power Consumption
• Independent Crossover Adjustment for Each Channel
(40/45/50/55/60/70/80/90/100/110/120/130/150/200 Hz)
• A/V Sync Control (Up to 800 ms at 48 kHz)
• Tone Control (Bass/Treble) for All Channels (except Zone 2/3)
• RDS (PS/RT/PTY/TP) (European Model only)
• Bi-Directional, Preprogrammed, and Customizable RI Remote
Control with Macro Presets for Four Activities

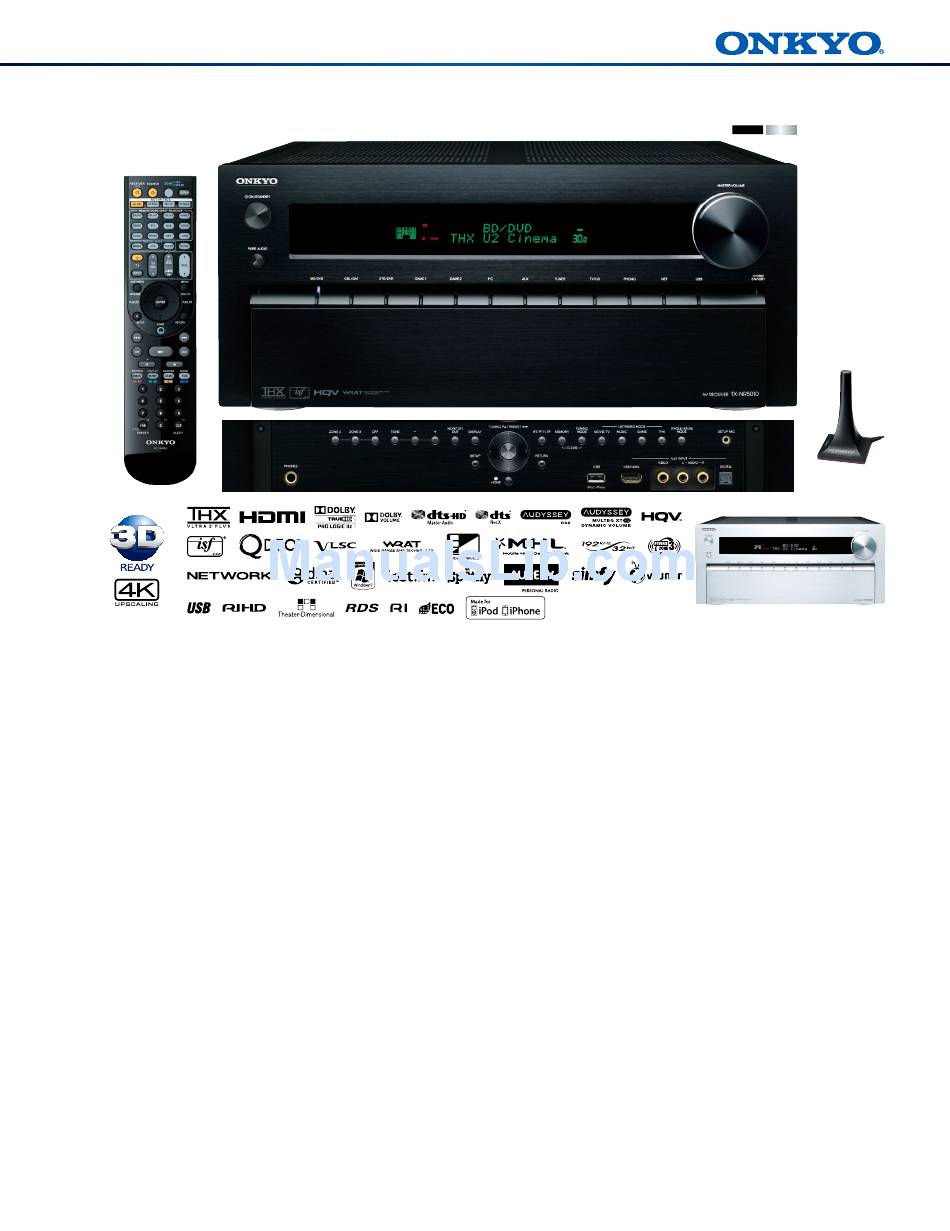

BLACK SILVER
Microphone for
Audyssey
®
