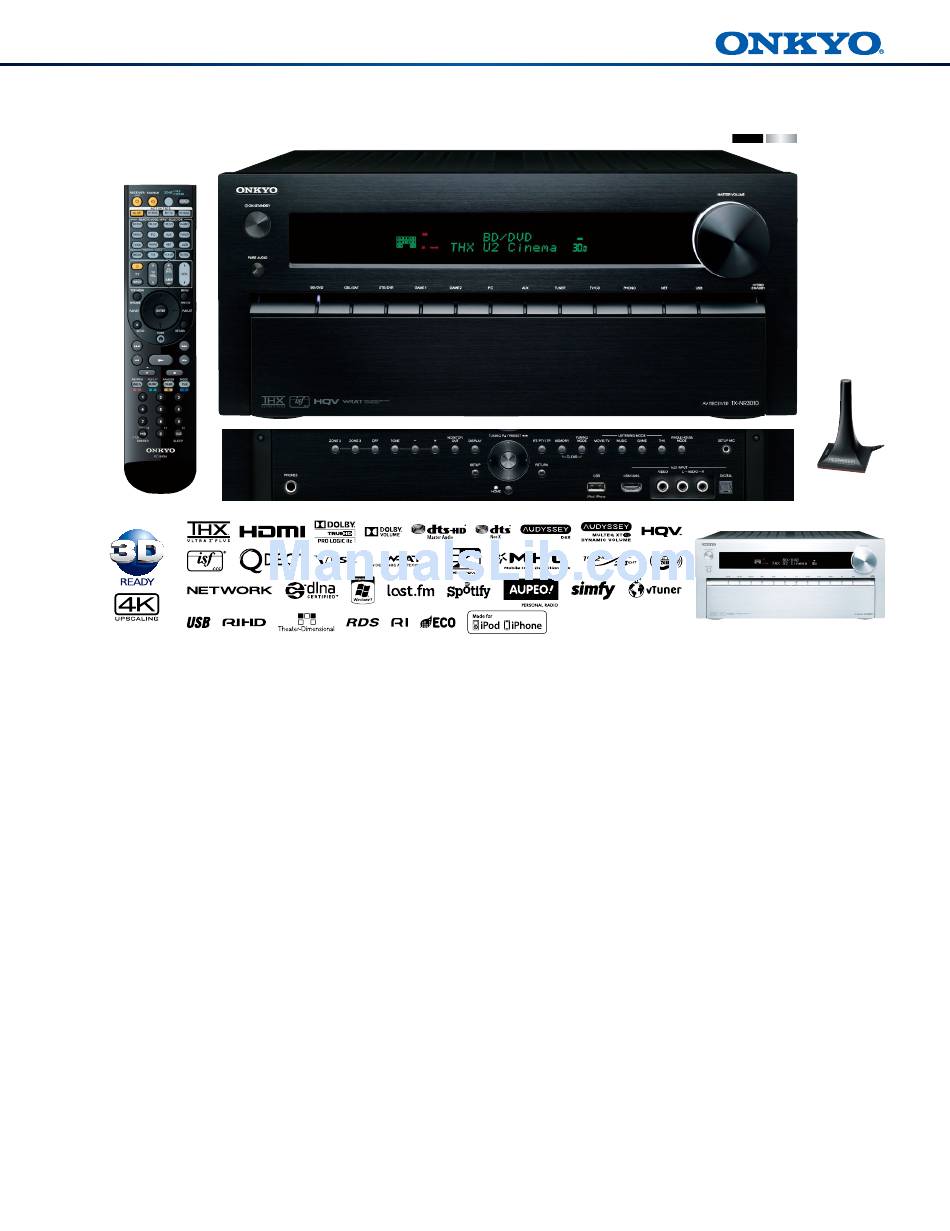

2012 NEW PRODUCT RELEASE

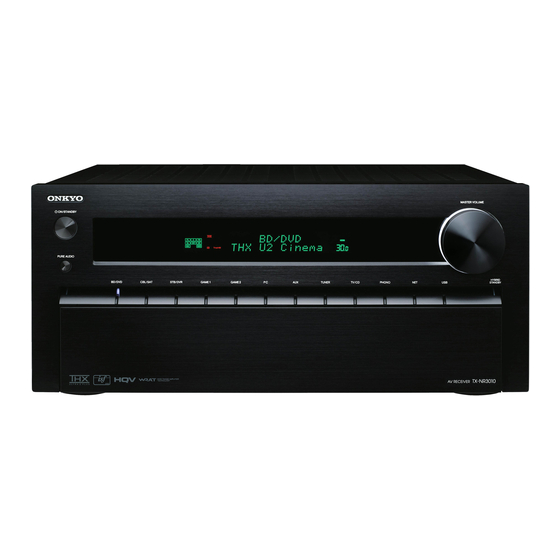

TX-NR3010
Thrill to the Power of Nine-Channel Entertainment
The ultimate hub for house-wide entertainment, the TX-NR3010 can drive audio in three rooms, output high-resolution video on two displays,
and stream audio via DLNA—all controlled by your iPhone or Android-powered phone. With a total of 11 HDMI
smart phone) and 11.4-channel pre-outs, the home cinema setup possibilities are limited only by your imagination. The receiver boasts Audyssey
MultEQ
XT32 room correction and three incredible sound expansion systems—DTS Neo:X
®
combination of Qdeo
, HQV
, and ISF technology upscales and calibrates video sources to 4K resolution. As an audiophile-spec component, the
®
TX-NR3010 features a massive main transformer, additional transformers for audio and video processing, and separated pre-amp and power amp
blocks. Audio signals are jitter-cleaned and converted to analog by 192 kHz/24-bit DACs and VLSC
Stage Inverted Darlington Circuitry. The resulting sound quality is awe-inspiring—and with differential DAC mode and Digital Processing Crossover
Network, bi-amping your front monitors results in even higher performance. Easily set up and controlled using the HDMI-enabled user interface, this
THX
Ultra2 Plus
-certified receiver is waiting to reignite your passion for music and cinema.
®
ADVANCED FEATURES
• THX
Ultra2 Plus
Certified
®
• Multi-Transformer for Audio, Video, and Digital Processing
• VLSC
(Vector Linear Shaping Circuitry)
• High-Quality HQV
Vida
VHD1900 Video Processor
®
• HDMI
Video Upscaling to 4K with Qdeo
Technology
®
by Marvell
• ISF (Imaging Science Foundation) Video Calibration for Optimal
Video Performance
• DTS Neo:X
, Audyssey DSX
, and Dolby
Pro Logic
®
®
Expanded Surround Channels
• MHL
(Mobile High-Definition Link) for Smart Phone Content
on HDTV
• Input Source Preview with InstaPrevue™ Technology
• Audyssey MultEQ
XT32 for Room Acoustic Correction
®
• Internet Radio and Cloud Music Streaming Service
Connectivity (Last.fm, Spotify, AUPEO!, Simfy, vTuner)*
• Supports Onkyo Remote Apps for iPod touch/iPhone*
Android Phone*
3
• Zone 2 HDMI Output for HD Video in a Second Room
• 11.4 Multichannel Pre-Outs
• Digital Processing Crossover Network to Cancel Crossover
Interference
• Machined Solid Brass, 19 mm-Pitch Audio Inputs
(TV/CD and Phono)
*1 Availability of services depends on region. Some services may require a firmware
update. Availability of third-party services advertised here is accurate at the time of
printing, but may be subject to change without notice. *2 Compatible with iPod touch
(3rd generation or later) and iPhone 3GS or later. All models require iOS 4.2 or later.
*3 Requires Android OS 2.1 or later.
9.2-Channel Network A/V Receiver
AMPLIFIER FEATURES
• 200 W/Ch (6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC);
250 W/Ch (6 Ω, 1 kHz, 1 Channel Driven, JEITA)
• Isolated Power-Amp and Pre-Amp Block
• WRAT (Wide Range Amplifier Technology)
• Three-Stage Inverted Darlington Circuitry
• H.C.P.S. (High Current Power Supply) Massive High Power
Transformer
• Discrete Output Stage Circuitry
IIz for
• Optimum Gain Volume Circuitry
®
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology
• Bi-Amping Capability
PROCESSING FEATURES
• HDMI Support for 3D, Audio Return Channel, DeepColor
x.v.Color
, LipSync, Dolby
®
TrueHD, DTS-HD Master Audio
1
DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
and
• 7 x TI Burr-Brown 192 kHz/24-Bit DACs
2
• Differential DAC Mode to Double Processing Power for up to
5.1 Channels
• Advanced 32-Bit Processing DSP Chip
• 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
• Advanced Music Optimizer for Compressed Digital Music Files
CONNECTION FEATURES
• 9 HDMI Inputs (1 Front/8 Rear) and 2 Outputs
• 2 USB Ports (1 Front/1 Rear)
• Direct Digital Connection of iPod/iPhone via Front-Panel
USB Port
BLACK
SILVER
ports (including MHL
®
, Audyssey DSX
, and Dolby
Pro Logic
®
®
circuits before passing through the Three-
• Compatible with Optional UWF-1 Wireless LAN Adapter and
UBT-1 Bluetooth USB Adapter
• Playback of Audio Files Through Local Network
(MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC,
Apple Lossless, DSD, LPCM)
• 2 Component Video Inputs and 1 Output
• 5 Composite Video Inputs and 1 Output
• 6 Digital Audio Inputs (3 Optical and 3 Coaxial)
• 7 Analog Audio Inputs and 1 Phono Input
• Powered Zone 2/3 and Zone 2/3 Line-Outs for Distributed
Audio Playback in Multiple Rooms
• Zone 2 Video Output (Composite)
• Analog RGB Video Input (D-sub, 15 pin) for PC
• RS-232 Port, IR Input/Output, and 12 V Trigger Outs (Zone 2/3)
,
OTHER FEATURES
,
• Audyssey Dynamic EQ
and Audyssey Dynamic Volume
®
• Dolby
Volume for Reference-Quality Listening at Any Volume
®
• Overlaid On-Screen Display (OSD) with Quick Set-Up and
Home Menu
• Hybrid Standby to Reduce Power Consumption
• Independent Crossover Adjustment for Each Channel
(40/45/50/55/60/70/80/90/100/110/120/130/150/200 Hz)
• A/V Sync Control (Up to 800 ms at 48 kHz)
• Tone Control (Bass/Treble) for All Channels (except Zone 2/3)
• RDS (PS/RT/PTY/TP) (European Model only)
• Bi-Directional, Preprogrammed, and Customizable RI Remote
Control with Macro Presets for Four Activities
Microphone for
Audyssey
for
IIz—while a
®
®
