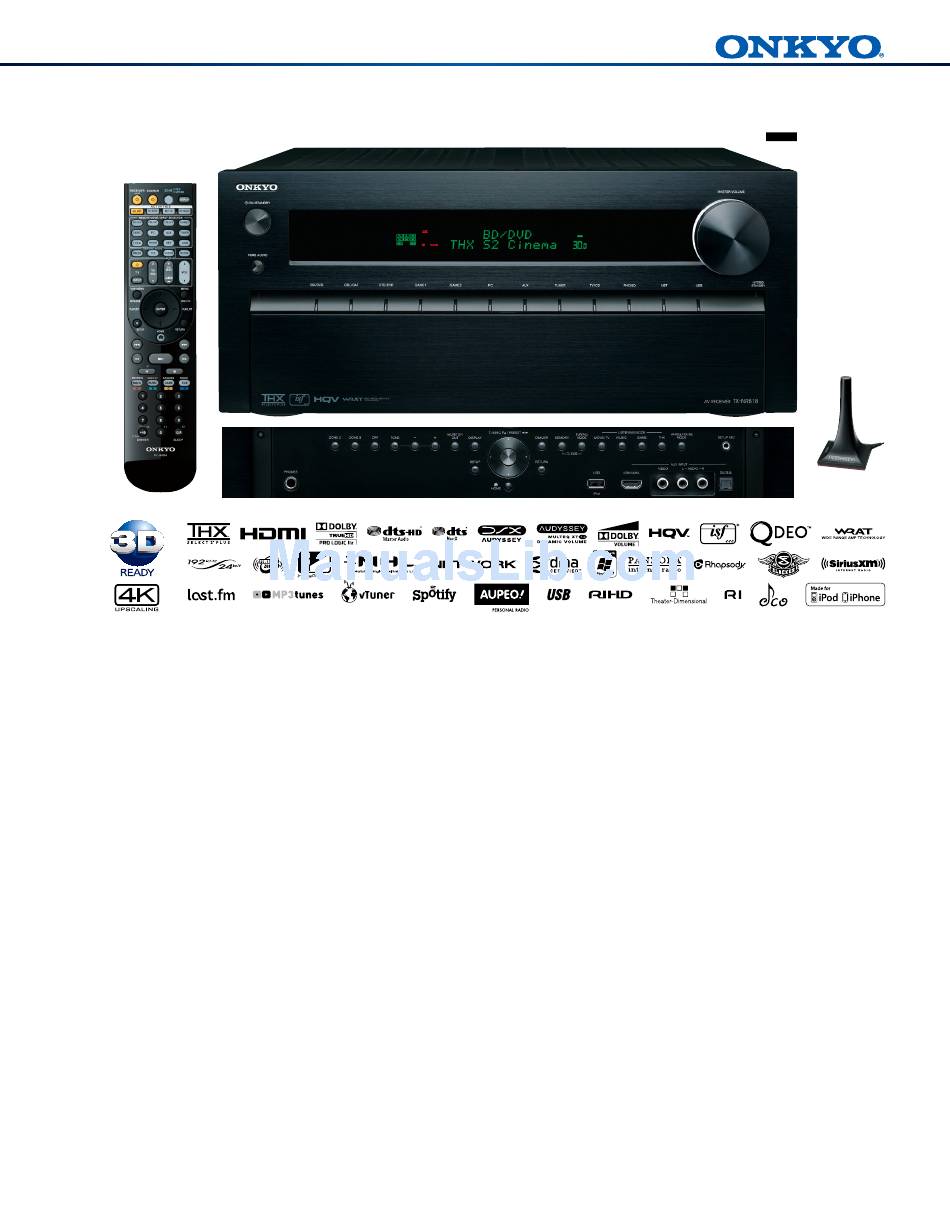

Onkyo TX-NR818 Product Release

2012 NEW PRODUCT RELEASE

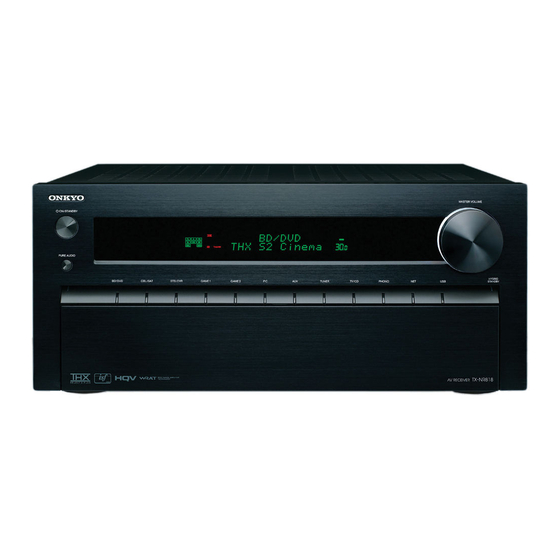

TX-NR818
High-End Home Theater Performance Starts Here
This Onkyo network receiver is a winner in three areas. Firstly, its video performance is unrivalled. A dual core video engine design utilizes an
HQV Vida VHD1900 processor to upscale analog content to 1080p, with Qdeo
® ™
system calibrates video from all inputs to industry standards, and the resulting picture is spectacular. Secondly, audio performance is unmatched,
as proven by THX Select2 Plus
® ™
192 kHz/24-bit DACs. Finally, you get more setup flexibility. There are eight HDMI
outputs. Two USB ports connect iPod
systems are included—Audyssey DSX
Digital crossover processing, front channel bi-amping capability, and three-zone audio distribution grant the freedom to customize. With new
InstaPrevue input selection technology and intuitive system control via iPhone and Android phone, now is the time to upgrade to an Onkyo.
™

ADVANCED FEATURES

• THX Select2 Plus Certified
® ™
• High-Quality HQV Vida VHD1900 Video Processor
® ™
• HDMI Video Upscaling to 4K with Qdeo Technology by
® ™
Marvell
• ISF (Imaging Science Foundation) Video Calibration for
Optimal Video Performance
• DTS Neo:X , Audyssey DSX , and Dolby Pro Logic
™ ® ®
Expanded Surround Channels
• MHL (Mobile High-Definition Link) for Smart Phone
™
Content on HDTV
• Input Source Preview with InstaPrevue Technology
™
• Audyssey MultEQ XT32 for Room Acoustic Correction
• Dolby ® Volume for Reference-Quality Listening at Any Volume
• Internet Radio and Cloud Music Streaming Service
Connectivity (Pandora , Rhapsody, Slacker , SIRIUS XM
® ™
Internet Radio , Last fm, MP3tunes, Spotify, AUPEO!, vTuner)*
®
• Supports Onkyo Remote Apps for iPod touch
Android Phone*
3
• Powered Zone 2/3 and Zone 2/3 Line-Outs for Distributed
Audio Playback in Multiple Rooms
• 9.2 Multichannel Pre-Outs
• Bi-Amping Capability
• Differential DAC Mode for Front Channels
• Digital Crossover Processing Network to Cancel Crossover
Interference
*1 Availability of services depends on region. Some services may require a firmware
update. *2 Compatible with iPod touch (3rd generation or later) and iPhone 3GS or
later. All models require iOS 4.2 or later. *3 Requires Android OS 2.1 or later.
7.2-Channel Network A/V Receiver
certification. The receiver delivers power effortlessly through three-stage inverted Darlington circuitry and
/iPhone and LAN adaptor, enabling wireless PC and online audio. Three mind-blowing sound expansion
® ®
, DTS Neo:X , and Dolby Pro Logic
® ™ ®

AMPLIFIER FEATURES

• 135 Watts per Channel (8 Ohms, 20 Hz–20 kHz, 0.08% THD,
2 Channels Driven, FTC);
145 Watts per Channel (8 Ohms, 1 kHz, 0.7% THD,
2 Channels Driven, FTC);
160 Watts per Channel (6 Ohms, 1 kHz, 0.1% THD,
2 Channels Driven, FTC)
• Isolated Power-Amp and Pre-Amp Block
IIz for
®
• WRAT (Wide Range Amplifier Technology)
• Three-Stage Inverted Darlington Circuitry
• H.C.P.S. (High Current Power Supply) Massive High Power
Transformer
• Discrete Output Stage Circuitry
• Optimum Gain Volume Circuitry
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology

PROCESSING FEATURES

1
• HDMI Support for 3D, Audio Return Channel, DeepColor
/iPhone * and
® ® 2
x.v.Color , LipSync, Dolby
™
DVD-Audio, Super Audio CD, Multichannel PCM, and CEC
• TI Burr-Brown 192 kHz/24-Bit DACs for All Channels
• Advanced 32-Bit Processing DSP Chip
• 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
• Advanced Music Optimizer for Compressed Digital Music Files
• Direct Mode and Pure Audio Mode

CONNECTION FEATURES

• 8 HDMI Inputs (1 Front/7 Rear) and 2 Outputs
• 2 USB Ports (1 Front/1 Rear)
technology taking full HD out to an eye-popping 4K. An ISF
™
inputs—including an MHL for smart phones—and two
®
IIz—assisted by Audyssey MultEQ XT32 room correction.
®
• Direct Digital Connection of iPod/iPhone via Front-Panel
USB Port
• Compatible with Optional UWF-1 Wireless LAN Adapter
via USB
• Playback of Audio Files Through Local Network
(MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC,
Apple Lossless, LPCM)
• 2 Component Video Inputs and 1 Output
• 5 Composite Video Inputs and 1 Output
• 6 Digital Audio Inputs (3 Optical and 3 Coaxial)
• 7 Analog Audio Inputs and 1 Phono Input
• Analog RGB Video Input (D-sub, 15 pin) for PC
• RS-232 Port, IR Input/Output, and 12 V Trigger Outs (Zone 2/3)

OTHER FEATURES

• Audyssey Dynamic EQ
• Audyssey Dynamic Volume
Level and Dynamic Range
,
™
• Overlaid On-Screen Display (OSD) with Quick Set-Up and
TrueHD, DTS-HD Master Audio ,
® ™
Home Menu
• Hybrid Standby to Reduce Power Consumption
• Independent Crossover Adjustment for Each Channel
(40/50/60/70/80/90/100/120/150/200 Hz)
• A/V Sync Control (Up to 800 ms at 48 kHz)
• Tone Control (Bass/Treble) for Front L/R Channels
• Firmware Updates via Ethernet and USB
• 40 FM/AM Random Presets
• Bi-Directional, Preprogrammed, and Customizable RI Remote
Control with Macro Presets for Four Activities
BLACK
Microphone for
Audyssey
for Loudness Correction
®
® to Maintain Optimal Listening
