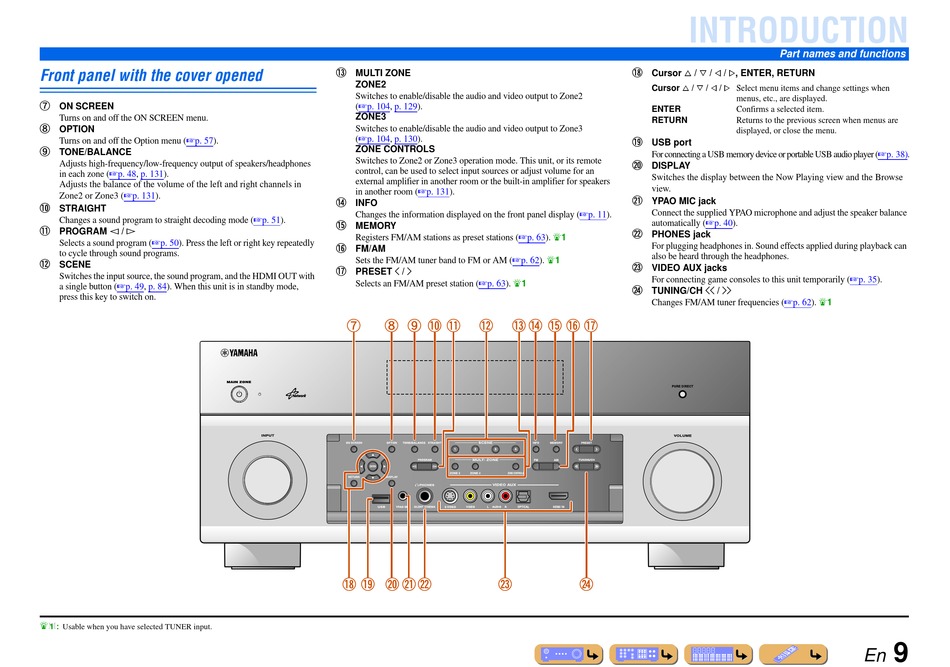

Front panel with the cover opened

g
ON SCREEN
Turns on and off the ON SCREEN menu.
h
OPTION
Turns on and off the Option menu (☞p. 57).
i
TONE/BALANCE
Adjusts high-frequency/low-frequency output of speakers/headphones
in each zone (☞p. 48, p. 131).
Adjusts the balance of the volume of the left and right channels in
Zone2 or Zone3 (☞p. 131).
j
STRAIGHT
Changes a sound program to straight decoding mode
k
PROGRAM l / h
Selects a sound program (☞p. 50). Press the left or right key repeatedly
to cycle through sound programs.
l
SCENE
Switches the input source, the sound program, and the HDMI OUT with
a single button (☞p. 49, p. 84). When this unit is in standby mode,
press this key to switch on.
JM
1 : Usable when you have selected TUNER input.
m
MULTI ZONE
ZONE2
Switches to enable/disable the audio and video output to Zone2
(☞p. 104, p. 129).
ZONE3
Switches to enable/disable the audio and video output to Zone3
(☞p. 104, p. 130).
ZONE CONTROLS
Switches to Zone2 or Zone3 operation mode. This unit, or its remote
control, can be used to select input sources or adjust volume for an
external amplifier in another room or the built-in amplifier for speakers
in another room (☞p.
n
INFO
Changes the information displayed on the front panel display
(☞p. 51).
o
MEMORY
Registers FM/AM stations as preset stations
p
FM/AM
Sets the FM/AM tuner band to FM or AM
q
PRESET j / i
Selects an FM/AM preset station
g h i j
r n s t u v
131).
(☞p. 11).
J1
(☞p. 63).
J1
(☞p. 62).
J1
(☞p. 63).
k l m n o p q
w x
INTRODUCTION
Part names and functions
r
Cursor B / C / D / E, ENTER, RETURN
Cursor B / C / D / E Select menu items and change settings when
menus, etc., are displayed.
ENTER Confirms a selected item.
RETURN Returns to the previous screen when menus are
displayed, or close the menu.
s
USB port
For connecting a USB memory device or portable USB audio player
t
DISPLAY
Switches the display between the Now Playing view and the Browse
view.
u
YPAO MIC jack
Connect the supplied YPAO microphone and adjust the speaker balance
automatically (☞p. 40).
v
PHONES jack
For plugging headphones in. Sound effects applied during playback can
also be heard through the headphones.
w
VIDEO AUX jacks
For connecting game consoles to this unit temporarily
x
TUNING/CH jj / ii
Changes FM/AM tuner frequencies (☞p. 62).
(☞p. 38).
(☞p. 35).
J1
9
