Others; Specifications - JVC VR-N900U Startup Manual

Others

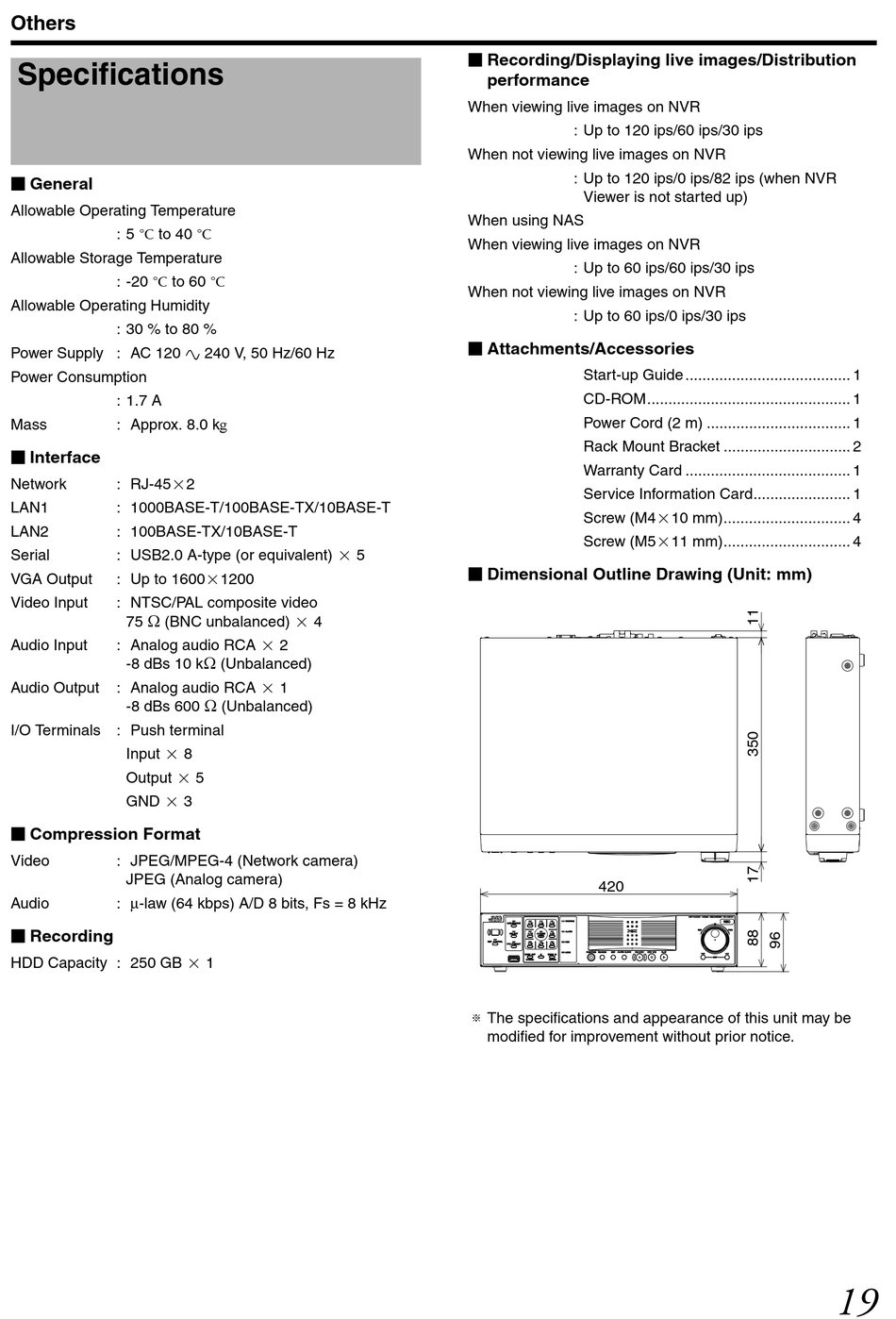

Specifications

General
Allowable Operating Temperature
: 5 I to 40 I
Allowable Storage Temperature
: -20 I to 60 I
Allowable Operating Humidity
: 30 % to 80 %
Power Supply : AC 120 H 240 V, 50 Hz/60 Hz
Power Consumption
: 1.7 A
Mass : Approx. 8.0 kg
Interface
Network : RJ-45 2
LAN1 : 1000BASE-T/100BASE-TX/10BASE-T
LAN2 : 100BASE-TX/10BASE-T
Serial : USB2.0 A-type (or equivalent)
VGA Output : Up to 1600 1200
Video Input : NTSC/PAL composite video
75 K (BNC unbalanced)
Audio Input : Analog audio RCA
-8 dBs 10 kK (Unbalanced)
Audio Output : Analog audio RCA
-8 dBs 600 K (Unbalanced)
I/O Terminals : Push terminal
Input
Output
GND
Compression Format
Video : JPEG/MPEG-4 (Network camera)
JPEG (Analog camera)
: µ-law (64 kbps) A/D 8 bits, Fs = 8 kHz
Audio
Recording
HDD Capacity : 250 GB
4
2
1
8
5
3
1
Recording/Displaying live images/Distribution
performance
When viewing live images on NVR
When not viewing live images on NVR
When using NAS
When viewing live images on NVR
When not viewing live images on NVR
Attachments/Accessories
5
Dimensional Outline Drawing (Unit: mm)
T The specifications and appearance of this unit may be
modified for improvement without prior notice.
: Up to 120 ips/60 ips/30 ips
: Up to 120 ips/0 ips/82 ips (when NVR
Viewer is not started up)
: Up to 60 ips/60 ips/30 ips
: Up to 60 ips/0 ips/30 ips
Start-up Guide ....................................... 1
CD-ROM................................................ 1
Power Cord (2 m) .................................. 1
Rack Mount Bracket .............................. 2
Warranty Card ....................................... 1
Service Information Card....................... 1
Screw (M4 10 mm).............................. 4
Screw (M5 11 mm).............................. 4
420
19
