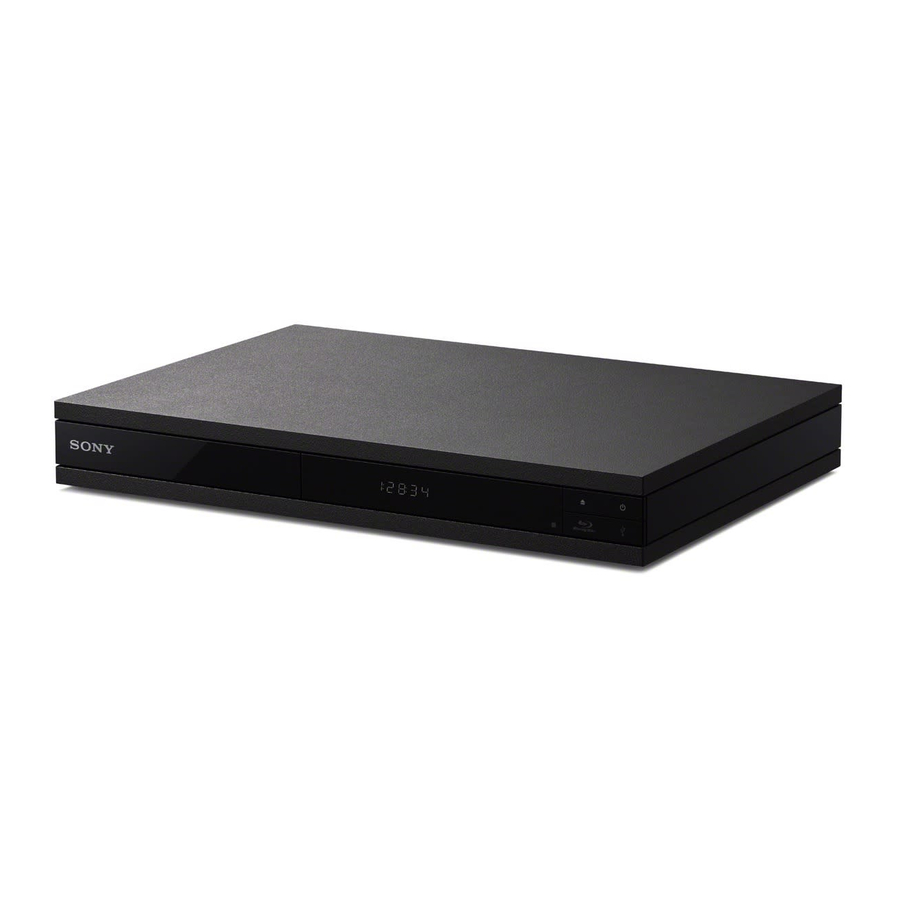

Blu-ray Disc™ /
DVD Player
Operating Instructions
Thank you for your purchase. Before using this
player, please read these instruction carefully.
UHP-H1
4-588-105-11(1)
Getting Started
Playback
Settings and Adjustments
Additional Information

Advertisement

Table of Contents

   Also See for Sony UHP-H1

   Summary of Contents for Sony UHP-H1

  • Page 1 4-588-105-11(1) Blu-ray Disc™ / Getting Started DVD Player Playback Settings and Adjustments Operating Instructions Additional Information Thank you for your purchase. Before using this player, please read these instruction carefully. UHP-H1...
  • Page 2: Warning

    The model and serial numbers are located at the housing inside the enclosure. rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No.______________ Serial No.______________...
  • Page 3 Important Safety Instructions equipment generates, uses, and can radiate radio frequency energy and, if not installed 1) Read these instructions. and used in accordance with the instructions, 2) Keep these instructions. may cause harmful interference to radio 3) Heed all warnings. 4) Follow all instructions.
  • Page 4: Precautions

    • Disconnect the AC power cord and all other Precautions cables from the player when you move the player. On power sources This equipment has been tested and found to comply with the limits set out in the EMC • The player is not disconnected from the AC Directive using a connection cable shorter power source as long as it is connected to the than 3 metres.
  • Page 5 (such as eye strain, fatigue, or nausea) while purchase, as the governing board of the AACS watching 3D video images. Sony recommends may adopt or change its restriction rules after that all viewers take regular breaks while the time of purchase.
  • Page 6 • “DVD Logo” is a trademark of DVD Format/Logo Licensing Corporation. • “DVD+RW,” “DVD-RW,” “DVD+R,” “DVD-R,” “DVD VIDEO,” “DVD AUDIO,” “Super Audio CD,” and “CD” logos are trademarks. • “BRAVIA” is a trademark of Sony Corporation.
  • Page 7 ® • The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners. • LDAC™ and LDAC logo are trademarks of Sony Corporation.
  • Page 8 ® Gracenote End User License rights. Under no circumstances will Gracenote become liable for any payment to Agreement you for any information that you provide. This application or device contains software You agree that Gracenote may enforce its from Gracenote, Inc. of Emeryville, California rights under this Agreement against you (“Gracenote”).
  • Page 9: Table Of Contents

    Contents WARNING Precautions Getting Started Guide to Parts and Controls Step 1: Connecting the Player Step 2: Preparing for Network Connection Step 3: Easy Setup Playback Playing a Disc Playing from a USB Device Playing via a Network Listening to Audio from a Bluetooth Device Available Options Settings and Adjustments Using the Settings Displays...
  • Page 10 Gracenote Servers are error-free or that http://oss.sony.net/Products/Linux functioning of Gracenote Software or Please note that Sony cannot respond to any Gracenote Servers will be uninterrupted. Gracenote is not obligated to provide you with inquiries regarding the content of this source new, enhanced or additional data types or code.
  • Page 11: Getting Started

    Getting Started Guide to Parts and Controls Front panel A Disc tray To lock the disc tray (Child Lock) You can lock the disc tray to avoid B Front panel display* accidental opening of the tray. C AUDIO DIRECT indicator* While the player is turned on, press “AUDIO DIRECT”...
  • Page 12 Rear panel A LAN (100) terminal B DIGITAL OUT (COAXIAL) jack C DIGITAL OUT (OPTICAL) jack D LINE OUT (R-AUDIO-L) jacks E HDMI OUT 1 jack F HDMI OUT 2 jack...
  • Page 13 Remote N PLAY, TV VOL +, and AUDIO buttons have a tactile dot. Use the tactile dot as a reference when operating the player. The available functions of the remote are The player automatically returns to different depending on the disc or the standby mode situation.
  • Page 14 • Plays one frame at a time, when FAQ: you press for a short time in pause http://www.sony.com/ mode. bluraysupport/ N PLAY TOP MENU Starts or re-starts playback.
  • Page 15 Code numbers of controllable Hold down TV 1 and the TV manufacturer’s code using the remote buttons for 2 seconds. Manufacturer Remote Button Sony (Default) AUDIO DIRECT Hitachi TV INPUT LG/Goldstar/NEC BLUETOOTH Toshiba Color button (YELLOW) Color button (BLUE) Mitsubishi/MGA...
  • Page 16: Step 1: Connecting The Player

    Step 1: Connecting the Player Do not connect the AC power cord until you have made all the connections. Connecting to your TV Connect the player to your TV with a High Speed HDMI Cable. High Speed HDMI Cable (not supplied) Connecting to your AV amplifier (receiver) Select one of the following connection methods according to the input jacks on your AV amplifier (receiver).
  • Page 17 About AV Separation Mode This mode allows you to output video signals via the HDMI OUT 1 jack and audio signals via the HDMI OUT 2 jack separately. High Speed HDMI Cable (not supplied)
  • Page 18: Step 2: Preparing For Network Connection

    Step 2: Preparing for Step 3: Easy Setup Network Connection When turned on for the first time If you are not going to connect the player Wait for a short while before the to a network, proceed to “Step 3: Easy player turns on and starts [Easy Setup”...
  • Page 19 Turn on the TV and set the input Home screen display selector on your TV by pressing TV INPUT button on the remote. The home screen appears when you This will show the signal from the press HOME. Select an application player on your TV screen.
  • Page 20: Playback

    Enjoying Blu-ray 3D Playback You can enjoy a Blu-ray 3D Disc with Playing a Disc the “Blu-ray 3D” logo. For “Playable discs”, see page 42. Prepare for Blu-ray 3D Disc Switch the input selector on your playback. TV so that the signal from the •...
  • Page 21: Playing From A Usb Device

    Displaying the play Playing from a USB information Device You can view the playback information, For “Playable types of files”, see etc., by pressing DISPLAY. page 44. The displayed information differs depending on the disc type and player Connect the USB device to the status.
  • Page 22: Playing Via A Network

    To play a file from a DLNA server via Playing via a Network another product (Renderer) When you play files from a DLNA Server on this unit, you can use a DLNA Controller-compatible product (a phone, Playing files on a Home etc.), to control playback.
  • Page 23 SongPal is a dedicated app for operating http://info.songpal.sony.net/help/ SongPal-compatible audio devices (e.g. wireless speaker) that are manufactured by Sony. You can listen to music stored Using Screen mirroring on your audio CD (CD-DA) and USB device with this player from multiple “Screen mirroring”...
  • Page 24: Listening To Audio From A Bluetooth Device

    Press M/m repeatedly to select Listening to Audio from the device you want, and press a Bluetooth Device ENTER. When the Bluetooth connection is established, the device name will To listen to an audio source from a appear on the TV screen. Bluetooth device (e.g.
  • Page 25: Available Options

    [Direct] Available Options [Brighter Room] [Theater Room] [Auto] Various settings and playback [Custom1]/[Custom2] operations are available by pressing [Texture Remaster]: Adjusts the OPTIONS. The available items differ sharpness and detail of the depending on the situation. edges. Common options [Super Resolution]: Improves Sets the repeat [Repeat Setting]: the resolution.
  • Page 26 [Video Search]: Displays [Subtitle]: Switches the subtitle information on the language when multilingual subtitles BD-ROM/DVD-ROM based on are recorded on BD-ROMs/DVD Gracenote technology. VIDEOs/DVD AUDIOs. Searches for related information using [Angle]: Switches to other viewing keywords from Gracenote when angles when multi-angles are selecting [Cast] or [Related].
  • Page 27: Settings And Adjustments

    • We recommend performing the software update every 2 months or so. Settings and Adjustments • If your network condition is poor, visit http://www.sony.com/bluraysupport/ to Using the Settings download the latest software version and update via USB memory. Displays You can also get information about update functions from the website.
  • Page 28 x [DVD Aspect Ratio] x [24p Output] [Letter Box]: Displays a wide picture Outputs 24p video signals only when with black bands on the top and bottom. you connect a 24p-compatible TV via an HDMI connection and the [Output Video Resolution] is set to [Auto], [1080p] or [4K].
  • Page 29: Audio Settings]

    [Off]: Turns off the function. [Off]: Turns off the function. x [Pause Mode] [Auto]: Normally select this. Dynamic If your Sony equipment is not detected when [Auto1] is selected, the setting will have the moving pictures appear without blurring. same effect as [Auto2] setting.
  • Page 30: Bluetooth Settings]

    x [BD Audio MIX Setting] x [Audio DRC] [On]: Outputs the audio obtained by [Auto]: Performs playback at the mixing the interactive and secondary dynamic range specified by the disc audio to the primary audio. (BD-ROM only). Other discs are played [Off]: Outputs the primary audio only.
  • Page 31: Bd/dvd Viewing Settings]

    Settings] with a Bluetooth device. LDAC is an audio coding technology x [BD/DVD Menu Language] developed by Sony that enables the Selects the default menu language for transmission of High-Resolution (Hi-Res) BD-ROMs or DVD VIDEOs. Audio content, even over a Bluetooth Select [Select Language Code], and connection.
  • Page 32: Parental Control Settings]

    x [BD Internet Connection] x [BD Parental Control] / [DVD Parental Control] / [Allow]: Normally select this. [Do not allow]: Prohibits Internet [Internet Video Parental Control] connection. By setting Parental Control, scenes can be blocked or replaced with different scenes. Follow the on-screen x [Delete BD Data] instructions and enter your four-digit Deletes data in the USB memory.
  • Page 33: System Settings]

    [Quick Start Mode] x [HDMI Settings] [On]: Shortens the startup time when By connecting Sony components that are turning on the player. compatible with HDMI functions with a [Off]: Reduces standby power High Speed HDMI Cable, operation is consumption.
  • Page 34: Network Settings]

    Displays the player’s software version information and the MAC address. For further details, visit the following website and check the FAQ contents: x [Software License Information] http://www.sony.com/bluraysupport/ Displays information about the Software License. x [Network Connection Status] Displays the current network status.
  • Page 35: Easy Network Settings]

    x [Auto Home Network Access [Resetting] Permission] [On]: Allows automatic access from newly detected DLNA controller- x [Reset to Factory Default Settings] compatible product. Resets the player settings to the factory [Off]: Turns off the function. default by selecting the group of settings. All the settings within the group will be x [Home Network Access Control] reset.
  • Page 36: Additional Information

    TV (if you change the setting on your remedy the problem before requesting TV, etc.). repairs. Should any problem persist, consult your nearest Sony dealer. Sound Picture There is no sound or the sound is not output correctly.
  • Page 37: Usb Device

    , There is no sound if you connect an Message Code 3 [Audio outputs AV amplifier to the HDMI OUT 1 temporarily muted. Do not adjust the jack, and set [AV Separation Output playback volume. The content being Mode] in [System Settings] to [On] played is protected by Cinavia and is (page 33).
  • Page 38 You cannot connect the player to the Internet streaming wireless LAN router. , Check if the wireless LAN router is on. The picture/sound is poor/certain , Depending on the surrounding programmes display a loss of detail, environment, such as the wall material, especially during fast-motion or dark radio wave receiving condition, or scenes.
  • Page 39 Bluetooth connection Control for HDMI (BRAVIA Sync) Bluetooth connection cannot be done/ completed. The [Control for HDMI] function does , Set [Bluetooth Mode] to [On] not work (BRAVIA Sync). (page 30). , Check that your TV is connected via , Make sure the Bluetooth device to be the HDMI OUT 1 jack.
  • Page 40 , When “Exxxx” appears, contact your information, see nearest Sony dealer or local authorized http://www.cinavia.com. Message Sony service facility and give the error Code 1] appears on the screen when code. playing a disc. , When “TEMP” appears, place the...
  • Page 41: Specifications

    Specifications currently unavailable.] appears on the screen after Z is pressed. Specifications and design are subject to , Contact your nearest Sony dealer or change without notice. local authorized Sony service facility. System The player does not respond to any Laser: Semiconductor laser button.
  • Page 42 Modulation method: FHSS Playable discs Compatible Bluetooth Profiles: A2DP v1.2, AVRCP v1.3 Supported Codecs: SBC, AAC, LDAC Transmission range (A2DP): Blu-ray BD-ROM • 20 Hz - 40,000 Hz (LDAC in Disc BD-R /BD-RE sampling 96 kHz and transmit by DVD-ROM 990 kbps) DVD-R/DVD-RW •...
  • Page 43 Note on Discs This product is designed to playback discs that conform to the Compact Disc (CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this product.
  • Page 44 Playable types of files Video Codec Container Extension With Audio .mpg, .mpeg Dolby Digital, DTS, LPCM, MPEG MPEG-1 Video .mkv Dolby Digital, LPCM, AAC, MP3, Vorbis .mpg, .mpeg Dolby Digital, DTS, LPCM, MPEG MPEG-2 .m2ts, .mts Dolby Digital, DTS, LPCM, MPEG, AAC Video .mkv Dolby Digital, LPCM, AAC, MP3, Vorbis...
  • Page 45 Music The player can support frame rate up to 60 fps. Codec Extension The player plays AVCHD format files that are recorded on a digital video camera, etc. MP3 (MPEG-1 Audio .mp3 The AVCHD format disc will not play if it Layer III) has not been correctly finalized.
  • Page 46: About Wireless Lan Security

    WPA-PSK (TKIP), WPA2-PSK (TKIP) • The player can recognize Mass Storage Class (MSC) devices (such as flash memory TKIP is a security technology developed or an HDD), Still Image Capture Device to correct the deficiencies of WEP. TKIP (SICD) class devices and 101 keyboard. assures a higher security level than •...
  • Page 47: Language Code List

    – A disc with a label or sticker on it. Code Language – A disc that has cellophane tape or 1307 Kurdish 1311 Kirghiz sticker adhesive on it. 1313 Latin 1326 Lingala • Do not resurface the playing side of a 1327 Laothian;...
  • Page 48 Parental control/area code For details, see [Parental Control Area Code] (page 32). Code Area 2044 Argentina 2047 Australia 2046 Austria 2057 Belgium 2070 Brazil 2090 Chile 2092 China 2093 Colombia 2115 Denmark 2165 Finland 2174 France 2109 Germany 2200 Greece 2219 Hong Kong 2248 India 2238 Indonesia...
  • Page 49 The software of this player may be updated in the future. To download any available updates and the Operating Instructions with advanced features, please visit the following website: http://www.sony.com/bluraysupport/ VIDEO/AUDIO 4-588-105-11(1) © 2016 Sony Corporation...
  • Page 50 12 Playing from a USB Device 12 Playing via a Network http://www.sony.com/bluraysupport/ 14 Listening to Audio from a Bluetooth Device Additional Information 15 Software Update 15 Playable discs 16 Playable types of files 18 Specifications UHP-H1...
  • Page 51 Record the serial number in the space provided below. filled with liquids, such as vases, on the apparatus. Refer to them whenever you call upon your Sony dealer • Install this unit so that the AC power cord can be regarding this product.
  • Page 52 If the CD,” and “CD” logos are trademarks. provided plug does not fit into your outlet, consult an • “BRAVIA” is a trademark of Sony Corporation. electrician for replacement of the obsolete outlet. • MPEG Layer-3 audio coding technology and patents...
  • Page 53 This product is protected by certain intellectual • “DSEE HX” is a trademark of Sony Corporation. property rights of Microsoft Corporation. Use or • SongPal Link and SongPal Link logo are trademarks distribution of such technology outside of this product of Sony Corporation.
  • Page 54 Gracenote service. The Gracenote Software and each http://oss.sony.net/Products/Linux item of Gracenote Data are licensed to you “AS IS.” Please note that Sony cannot respond to any inquiries Gracenote makes no representations or warranties, regarding the content of this source code.
  • Page 55 NETFLIX Accesses the “NETFLIX” online service. For further NETFLIX online service details, visit the following website and check the FAQ: http://www.sony.com/bluraysupport/ TOP MENU Opens or closes the BD’s or DVD’s Top Menu. POP UP/MENU Opens or closes the BD-ROM’s Pop-up Menu, or the DVD’s menu.
  • Page 56 • Plays in slow motion, when pressed for more than one second in pause mode. Manufacturer Remote Button • Plays one frame at a time, when you press Sony (Default) AUDIO DIRECT for a short time in pause mode. Hitachi TV INPUT N PLAY Starts or re-starts playback.
  • Page 57 Step 1: Connecting the Player Do not connect the AC power cord until you have made all the connections. Connecting to your TV Connect the player to your TV with a High Speed HDMI Cable. High Speed HDMI Cable (not supplied) Connecting to your AV amplifier (receiver) Select one of the following connection methods according to the input jacks on your AV amplifier (receiver).
  • Page 58 About AV Separation Mode This mode allows you to output video signals via the HDMI OUT 1 jack and audio signals via the HDMI OUT 2 jack separately. High Speed HDMI Cable (not supplied)
  • Page 59 Step 2: Preparing for Step 3: Easy Setup Network Connection When turned on for the first time Wait for a short while before the player turns Wired Setup on and starts [Easy Initial Settings]. Insert two Size AAA (R03) batteries by Use a LAN cable to connect to the LAN (100) terminal on the player.
  • Page 60 Perform [Easy Initial Settings]. Home screen display Follow the on-screen instructions to make the basic settings using </M/m/, and ENTER on the remote. The home screen appears when you press HOME. Select an application using </M/m/,, and press ENTER. Tools Application </M/m/, ENTER...
  • Page 61 Refer also to the instruction manuals supplied with your TV and the connected device. Playback Playing a Disc Playing from a USB Device For “Playable discs”, see page 15. For “Playable types of files”, see page 16. Press Z OPEN/CLOSE, and place a disc on the disc tray.
  • Page 62 “Screen mirroring” is a function to display the SongPal-compatible audio devices (e.g. wireless screen of a mobile device on the TV by Miracast speaker) that are manufactured by Sony. You can technology. listen to music stored on your audio CD (CD-...
  • Page 63 To disconnect the Bluetooth device Listening to Audio from a Perform any of the following steps: – Press BLUETOOTH button on the remote Bluetooth Device (page 6). – Disable the Bluetooth function on the To listen to an audio source from a Bluetooth Bluetooth device.
  • Page 64 2 months or so. VIDEOs labeled with identical region codes or • If your network condition is poor, visit http://www.sony.com/bluraysupport/ to download the latest software version and update via USB memory. UHP-XX You can also get information about update functions from the website.
  • Page 65 Playable types of files Video Codec Container Extension With Audio .mpg, .mpeg Dolby Digital, DTS, LPCM, MPEG MPEG-1 Video .mkv Dolby Digital, LPCM, AAC, MP3, Vorbis .mpg, .mpeg Dolby Digital, DTS, LPCM, MPEG MPEG-2 Video .m2ts, .mts Dolby Digital, DTS, LPCM, MPEG, AAC .mkv Dolby Digital, LPCM, AAC, MP3, Vorbis .avi...
  • Page 66 The player may not play this file format on a DLNA server. • Some files may not play depending on the file format, The player can only play standard definition video file encoding, recording condition, or DLNA server on a DLNA server. condition.
  • Page 67 Specifications Specifications and design are subject to change without notice. System Laser Semiconductor laser Inputs and outputs Jack name Jack type/Output level/Load impedance LINE OUT R-AUDIO-L Phono jack/2 Vrms/10 kilohms DIGITAL OUT (OPTICAL) Optical output jack/–18 dBm (wave length 660 nm) DIGITAL OUT (COAXIAL) Phono jack /0.5 Vp-p/75 ohms HDMI 19-pin standard connector...
  • Page 68 General Power requirements Rating: Input 120 V AC, 60 Hz Power consumption 14 W 360 mm × 250 mm × 50 mm (14 in. × 10 in. × 2 in.) Dimensions (approx.) (width × depth × height) incl. projecting parts Mass (approx.) 2.8 kg (6 lb 3 oz) Operating temperature...
  • Page 69 To find out useful hints, tips and information about Sony products and services please visit: http://www.sony.com/bluraysupport/ VIDEO/AUDIO 4-588-103-11(1) © 2016 Sony Corporation Printed in Malaysia...
