1.1 Overview

EXT-SBC-i.MX51-COMM
TFT Connector

1.2 Key Features

• GPS Module
U-Blox NEO-6Q
o
Onboard RTC crystal for faster warm and hot starts

 Up to 5Hz navigation rate
Anti-jamming technology

Onboard antenna connector
o
• GSM/GPRS Module
U-Blox LEON G100 incl. SIM Card Holder
o
 Full feature quad-band GSM/GPRS, class 10
Embedded TCP/IP stack

Onboard antenna connector
o
• TFT Connector
40 pin ZIF connector
o
Various EDT displays available (3,5" to 7"; 320x240 to 800x480)
o
•
LVDS Connector
30 pin connector
o
Supports Toshiba LT084AC3711 LVDS display
o
• LVDS Transmitter
National Semiconductor DS90C365
o
EXT-SBC-i.MX51-COMM_HUM_V1.2.docx
GSM/GPRS
GPS Module
Module
LVDS Transmitter
Touch Panel
LVDS Display
Connector
Active
Components

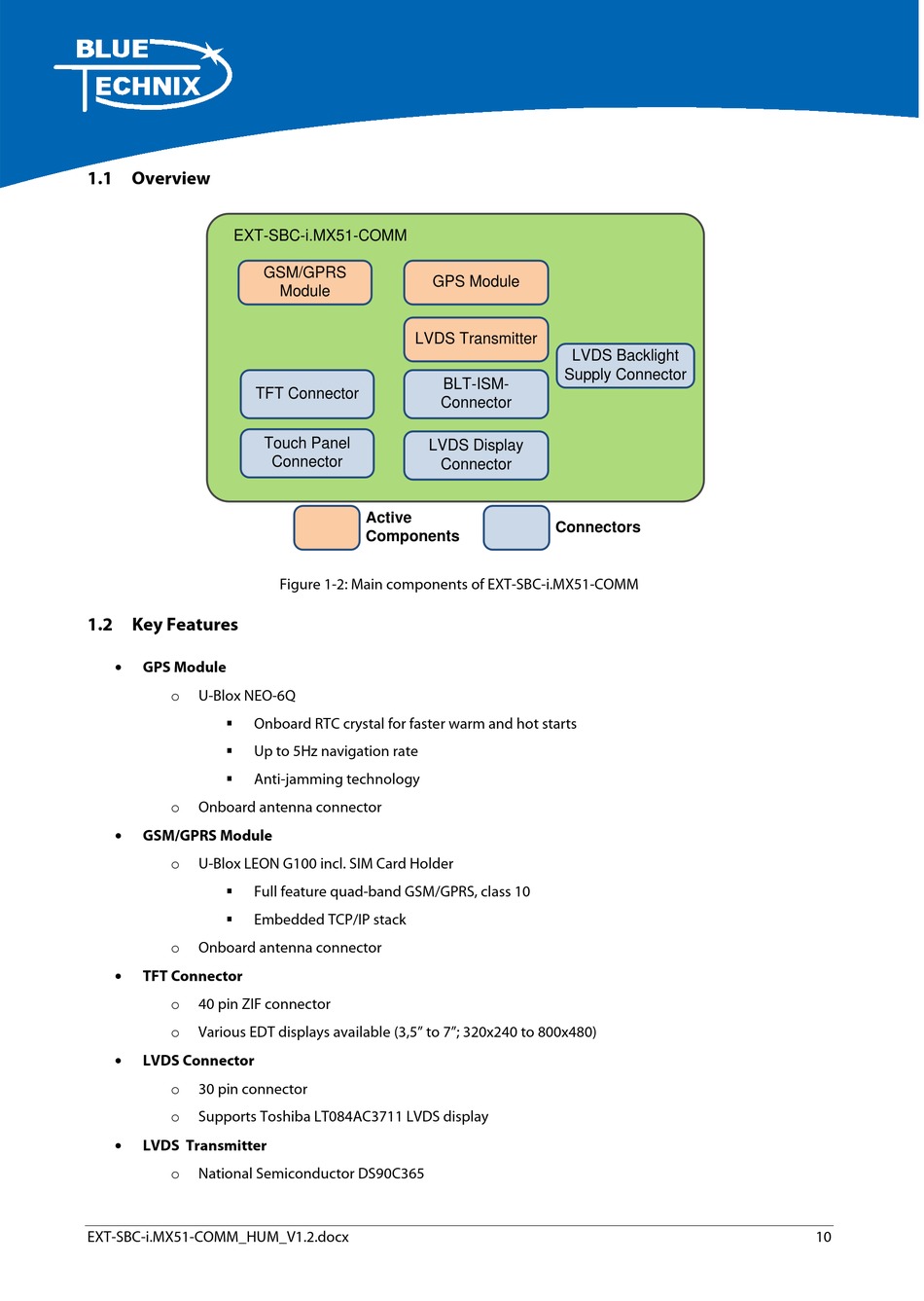

Figure 1-2: Main components of EXT-SBC-i.MX51-COMM

LVDS Backlight
Supply Connector
BLT-ISM-
Connector
Connector
Connectors
