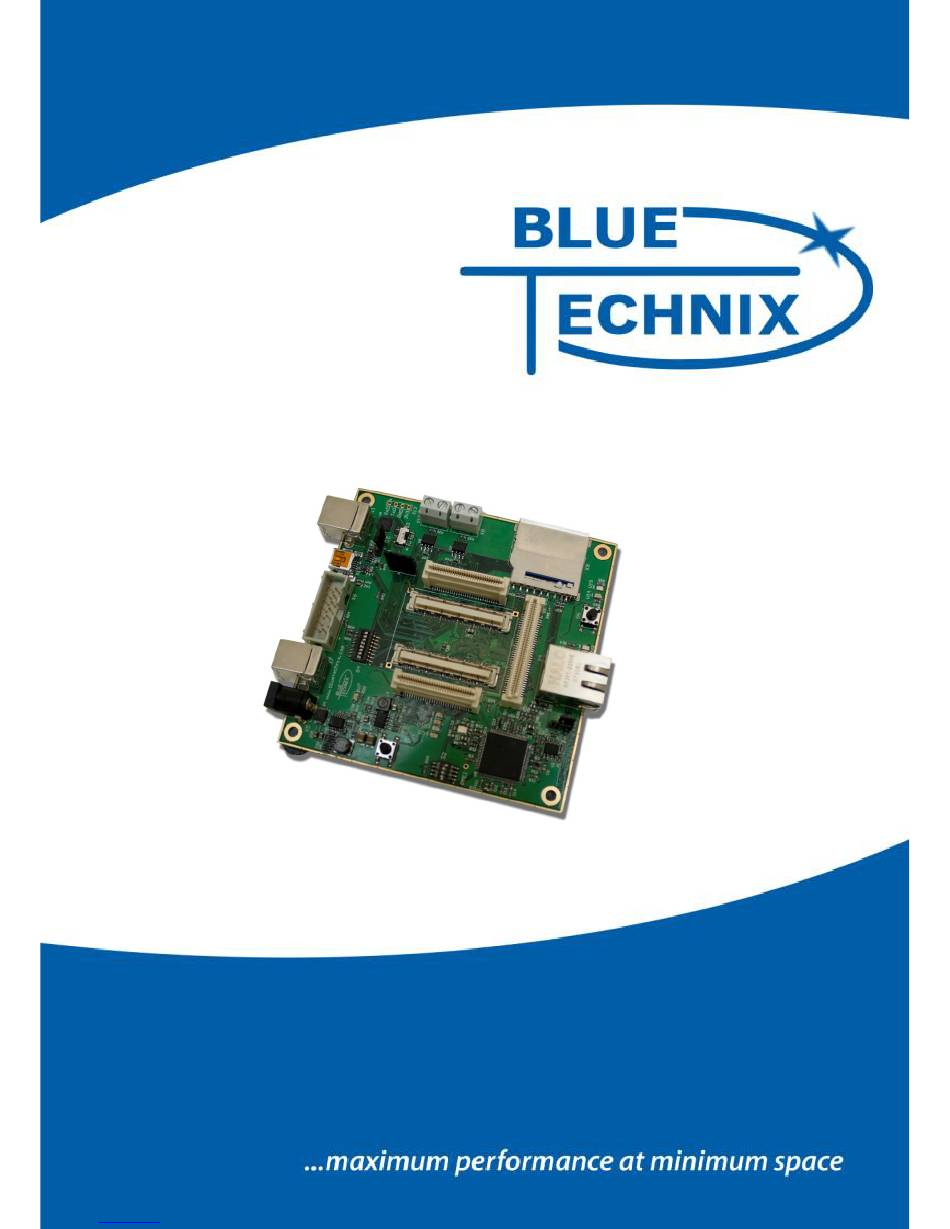

- Page 1 Hardware User Manual DEV-BF548-Lite v1.x DEV-BF548DA-Lite v1.x Downloaded from Elcodis.com electronic components distributor...
- Page 2 Contact Bluetechnix Mechatronische Systeme GmbH Lainzerstraße 162/3 A-1130 Vienna AUSTRIA/EUROPE office@bluetechnix.at http://www.bluetechnix.com Document No.: 100-2246-1.0 Document Revision 13 2010-07-13 Blackfin DEV-BF548-Lite. DEV-BF548DA-lite Hardware User Manual Downloaded from Elcodis.com electronic components distributor...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................................8 Overview ....................................8 Functional Specification ................................ 10 PCB Placement and Mechanical Outline .......................... 11 PCB Placement ................................. 11 Mechanical Outline ................................ 12 ... - Page 4 Boot Mode Description ................................22 Installation ....................................23 Initial Board Setup ................................23 Debug Agent Setup (DEV-BF548DA-Lite only) ..................... 26 Using the VDSP Flash Programming Tool ........................30 Developing an Application ............................
- Page 5 Packing List The DEV-BF548DA-Lite and the DEV-BF548-Lite Board Package contain the following items: DEV-BF548DA-Lite or DEV-BF548-Lite Board 1x USB Cable (USB A/B) 1x USB Cable (USB A/B) (DEV-BF548DA-Lite only) 1x USB Cable (USB A/Mini USB) 1x Ethernet Cable 1x Power Supply. Support CD Note: The Core Modules are not shipped with the board, so you must order them separately.
- Page 6 Edition 2008-09 © Bluetechnix Mechatronische Systeme GmbH 2008 All Rights Reserved. The information herein is given to describe certain components and shall not be considered as a guarantee of characteristics. Terms of delivery and rights of technical change reserved. We hereby disclaim any warranties, including but not limited to warranties of non-infringement, regarding circuits, descriptions and charts stated herein.
- Page 7 BLACKFIN Products Core Modules: TCM-BF518: The new Core Module CM-BF518 is powered by Analog Devices' single core ADSP-BF518 processor; up to 400MHz, 32MB SDRAM, up to 8MB flash. The 2x60 pin expansion connectors are backwards compatible with other Core Modules. CM-BF527: The new Blackfin Processor Module is powered by Analog Devices' single core ADSP-BF527 processor;...
- Page 8 Development Boards: EVAL-BF5xx: Low cost Blackfin processor Evaluation Board with one socket for any Bluetechnix Blackfin Core Module. Additional interfaces are available, e.g. an SD-Card. DEV-BF5xxDA-Lite: Get ready to program and debug Bluetechnix Core Modules with this tiny development platform including an USB-Based Debug Agent. The DEV- BF5xxDA-Lite is a low cost starter development system including a VDSP++ Evaluation Software License.
-
Page 9: Introduction
1 Introduction NOTE: The DEV-BF548DA-Lite has an on-board Debug Agent, which is not available on the DEV-BF548- Lite Board. All other features are identical! In this document, when describing both boards, the name DEV-BF548-Lite is used. The DEV-BF548-Lite Development Board with integrated Debug Agent is designed as a development and application board for the high performance ADSP-BF548 based CM-BF548 Core Module. - Page 10 JTAG JTAG-Plug that supports all analog Devices JTAG Emulators. Expansion Connector 1 (X1) Data Bus Address Bus Memory Control RESET PPI0 (Parallel Port Interface 0) GPIO (Programmable ) Power Supply Expansion Connector 2 (X2) PPI1 (Parallel Port Interface 1), SPORT1 Power Supply (Main Supply Connector) GPIO (Programmable ) UART0...
-
Page 11: Functional Specification
2 Functional Specification Figure 2-1: Functional Block Diagram Power connector and Power supply: The supplied power supply should be used. It can deliver up to 2A at 12V. The input voltage range of an alternative power supply must be between 6-16V! The on-board DC/DC power supply generates 5V and 3.3V which are made available at the expansion connectors. -
Page 12: Pcb Placement And Mechanical Outline
3 PCB Placement and Mechanical Outline 3.1 PCB Placement X 13 X 11 Power USB JTAG Ext . JTAG USB -OTG USB -UART X 12 1 … 8 X 10 CAN 1 X 8 CAN 0 1 … 4 SD-CARD X 4 Ethernet JACK Corner holes on Core Module indicating insertion Rotation Figure 3-1: Connector PCB Placement... -
Page 13: Mechanical Outline
3.2 Mechanical Outline Figure 3-2: Mechanical Outline – Expansion Connector Placement Blackfin DEV-BF548-Lite. DEV-BF548DA-lite Hardware User Manual Downloaded from Elcodis.com electronic components distributor... -
Page 14: Extension Board Footprint
3.3 Extension Board Footprint If you want to design your own Extension Board for the DEV-BF548, you can use the following Board dimensions. The mating Connectors in Figure 3-3 are mounted on top. Figure 3-3: Recommended Footprint for Extension Boards – top view Blackfin DEV-BF548-Lite. -
Page 15: Connector Description
4 Connector Description 4.1 X4 –RJ45 Ethernet Connector Pin No. Signal (Core Module) IO-Type Table 4-1: Ethernet Connector 4.2 X9 –SD-Card Connector (bottom Mount) Pin No. Signal (Core Module) Description (SD Card) SD_D2 DAT2 SD_D3 CD/DAT3 SD_CMD VSS1 3,3V SD_CLK VSS2 SD_D0 DAT0... -
Page 16: X1, X2, X3 Expansion Connectors
4.6 X1, X2, X3 Expansion Connectors The Expansion Connectors on the DEV-BF548-Lite for a Stacked Height of 16mm are of the following type: Part Manufacturer Manufacturer Part Nr. X1, X2 AMP (Stacked Height = 16mm) 5-5179010-2 Matching connector 5179031-2 AMP (Stacked Height = 16mm) 5-5179010-3 Matching connector 5179031-3... -
Page 17: Expansion Connectors
4.9 Expansion Connectors The interface to the extender boards is grouped into three different connectors (X1, X2, X3). The three tables below shows the pin out of these three connectors. The column “Pin No. (Connector)” shows the pin number of each connector, while the column “Pin No. (Symbol) shows the pin number of the extension connector schematic symbol, where the pins are numbered from 1 to 200. -
Page 18: Expansion Connector X2
40 40 PB10 129 41 41 PE11 189 42 42 PE13 187 43 43 PD15 150 44 44 PD13 148 45 45 PD11 146 46 46 144 47 47 142 48 48 140 49 49 138 50 50 136 51 51 ... -
Page 19: X1 - Expansion Connector 1
4.9.2 X1 – Expansion Connector 1 Pin No. Pin No. Signal Signal type Pin No CM (Symbol) (Connector) 61 1 1 62 2 3 63 3 5 64 4 7 65 5 9 66 6 11 67 7 13 68 8 15 69 9 ... -
Page 20: X3 - Expansion Connector 3
108 48 176 109 49 178 110 50 180 111 51 182 112 52 24 113 53 166 114 54 14 115 55 12 116 56 10 117 57 8 118 58 6 119 59 4 120 60 2 4-8 Expansion Connector X1 4.9.3 X3 –... -
Page 21: Expansion Connector X3
153 33 PA11 112 154 34 PA12 113 155 35 PA14 115 156 36 PA15 116 157 37 158 38 159 39 3.3V 160 40 3.3V 161 41 5.0V 162 42 163 43 164 ... -
Page 22: Switches, Jumper And Led Description
5 Switches, Jumper and LED Description 5.1 S1 – Reset switch Performs system reset. 5.2 S2 – Ethernet Control Signals / SDCARD CS Default Settings Dipswitch Function S2.1 Connect SDCARD CS to PC5 S2.2 Connect nAMS1 from Core Module to Ethernet chip S2.3 Connect PE6 from Core Module to Ethernet chip IRQ S2.4... -
Page 23: Jp4 - Usb Id
5.8 JP4 – USB ID Short jumper JP4 to tie USB ID to GND on the USB-OTG Connector X13. 5.9 S5 - Button The button S5 is a GPIO Button and connects to PH7. 5.10 General Purpose LEDs Designator Function Blackfin GPIO ... -
Page 24: Installation
1000 Reserved 1001 Reserved 1010 Boot from (DDR) SDRAM 1011 Boot from OTP memory 1100 Reserved 1101 Boot from 8‐ or 16‐bit NAND flash memory via NFC 1110 Boot from 16‐Bit Host DMA 1111 Boot from 8‐Bit Host DMA Table 6-1: Boot modes 7 Installation 7.1 Initial Board Setup The installation guide is written for Windows (Windows 2000 and WinXP). However for connecting the USB device the driver for MAC and LINUX are available on the CD. - Page 25 If the wizard asks you to connect to the windows update site, select “No, not this time” Choose: “Install from a list or specific location”. The driver is located on your support CD. Blackfin DEV-BF548-Lite. DEV-BF548DA-lite Hardware User Manual Downloaded from Elcodis.com electronic components distributor...
- Page 26 This procedure has to be done twice, because at first the USB driver will be installed. Then the Hardware Wizard opens again, because the UART bridge driver has to be installed in addition using the same driver file. Simply repeat this step. Open the Windows device manager (Control Panel ...
-
Page 27: Debug Agent Setup (Dev-Bf548Da-Lite Only)
This shows a sample boot screen. Depending on the current software version, you might get different boot messages. You can find a simple hello world program on your support CD or at the download section of the product homepage. To start the sample program, type “xmr UART” on your terminal program, then (Transfer ... - Page 28 Configure VDSP++4.5 to support the DEV-BF548DA-Lite by starting the Installer from your support CD. Once started you should see the following dialog. Note: To run the installer the .net framework is required! Select the Core Module that you have inserted in the socket of your DEV-BF548DA-Lite. Press the “Install”...
- Page 29 After the install process you have to create a Platform using the Platform Wizard of the VDSP++. Please follow the instructions to create a valid Platform for the Bluetechnix USB Debug Agent. Open the VisualDSP++ Configurator from the start menu entry of VisualDSP++ 4.5. Select “New…”...
- Page 30 Select “EZ-KIT Lite” and press “Next”. Select the platform that you have created with the VisualDSP++ Configurator and press “Finish”. Blackfin DEV-BF548-Lite. DEV-BF548DA-lite Hardware User Manual Downloaded from Elcodis.com electronic components distributor...
-
Page 31: Using The Vdsp Flash Programming Tool
Now the session is ready and VDSP++ should start with these settings. The Core Module on the DEV- BF548DA-Lite is now ready for debugging. For further information about the session wizard and the VDSP++ tools please refer to the VDSP++ manuals downloadable from the Analog Devices website. -
Page 32: Extender Board Compatibility List
9 Extender Board Compatibility List This chapter points out the compatibility of the DEV-BF548-Lite and DEV-BF548DA-Lite with Core Module and Extension Boards. Please refer to the Extender board and Core Module Hardware Manuals for further information. Legend: Full functional (OK) Functional but not all features are available Not functional Functionality not guaranteed... -
Page 33: Audio Extender Board
9.4 Audio Extender Board Core Module CM-BF548 EXT-BF5xx-Audio Table 9-4: Used with the Audio Extender Board 9.5 Camera Extender Board Core Module CM-BF548 EXT-BF5xx-Camera Table 9-5: Used with the Camera Extender Board 9.6 Analog-Digital / Digital-Analog Converter Extender Board Core Module CM-BF548 EXT-BF5xx-AD/DA Table 9-6: Used with the Analog-Digital / Digital-Analog Converter Extender Board... -
Page 34: Camera And Audio Extender Board
9.9 Camera and Audio Extender Board Core Module CM-BF548 EXT-BF5xx-Camera EXT-BF5xx-Audio Table 9-9: Used with the Camera and the Audio Extender Board 10 Anomalies Missing pull up resistor on nBR -> workaround done Missing pull up resistor on CMD_OD -> workaround done Table 10-1: Anomalies on V1.0 boards 11 Product Changes Version... -
Page 35: Document Revision History
Document Revision History Version Date Document Revision 2010-06-23 Layout changes 2010-02-09 Redesign of Manual 2009-02-04 Caption for some tables added Table 5-1 corrected Table 6-1 S4.4-S4.1 added 2008-10-15 Chapter 4.9: column Pin No. (Symbol) added 2008-09-23 Extension Footprint added, Layout changed 2008-08-18 English checked for grammar, spelling and clarity. -
Page 36: A List Of Figures And Tables
A List of Figures and Tables Figures: Figure 1-1: Overview of the DEV-BF548-Lite Board ............8 Figure 2-1: Functional Block Diagram ................10 Figure 3-1: Connector PCB Placement ................11 Figure 3-2: Mechanical Outline – Expansion Connector Placement ........ 12 ...
