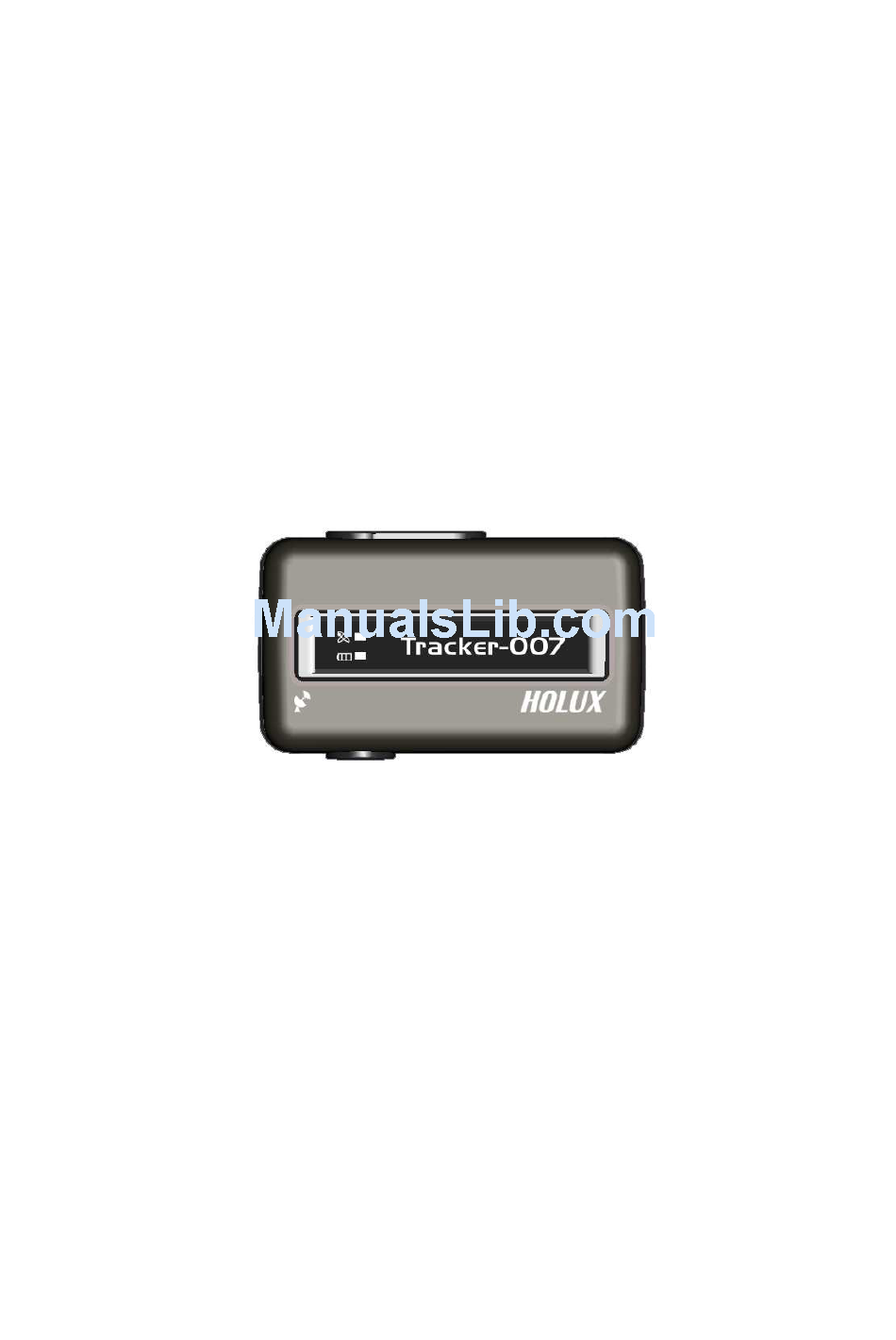

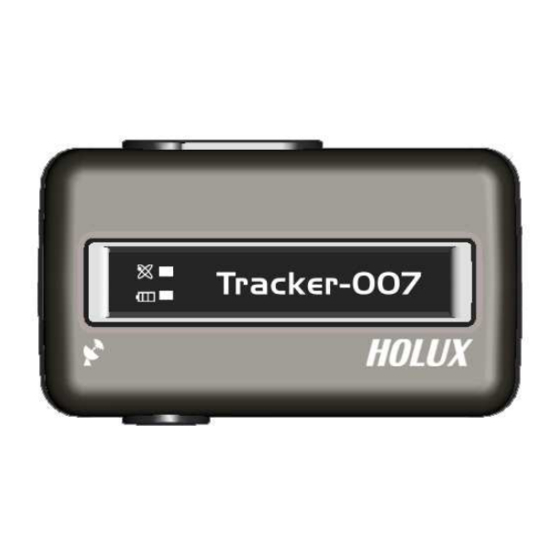

  • Page 1 GPS Tracking System Tracker-007 User’s Manual...

  • Page 2: Table Of Contents

    Table of Contents Introduction........................1 Application .........................1 Parts names and Functions........................... 2 LED Indication ............................... 3 Package Contents ............................4 Before You Getting Started ....................5 Possible Additional Fee..........................5 About GPS..............................5 About Power ..............................5 For XP SP3 Users ............................5 About SIM PIN Code &...
  • Page 3 GSM Antenna .............................. 23 Certification..............................23 GSM module..............................23 GPS ................................23 Power Consumption ............................ 24...

  • Page 5: Introduction

    Holux Tracker-007 Introduction Tracker-007 is a multi-functional tracker. Combining with GPRS and high performance GPS, the device can be used to track and report device’s position and status to mobile phone through SMS or Main Data Server (MDS) through HTTP. The operation modes include continuous tracking and position lock (park).

  • Page 6: Parts Names And Functions

    Holux Tracker-007 Parts Names and Functions Park Key GPS Status (Blue LED) USB Connector Power Signal (Amber) & Status SOS, Press two Signal (Green) keys together. - 2 -...

  • Page 7: Led Indication

    Holux Tracker-007 LED Indication Item LED icon /color Status Indication Power Blinks every 4 Battery is low Amber seconds Power Glows steadily Battery is recharging Amber Power Glows steadily Battery is full Green Power Blinks every 4 Device is functioning...

  • Page 8: Package Contents

    Holux Tracker-007 Package Contents Thank you for purchasing the Tracker-007 wireless GPS logger. Before you start, make sure that the following items are included in your package. If any of these items are missing, please contact your original local HOLUX dealer or distributor.

  • Page 9: Before You Getting Started

    • Tracker-007 cannot be powered on if battery voltage is below 3.5 volts. For XP SP3 Users •...

  • Page 10: About Sim Pin Code & Gprs

    • Google map installed in your cell phone will be downloaded by GPRS automatically when ezSpot is well installed. Download Documents, Driver and Utility All related documents, driver and utility programs can be downloaded from the Holux web site http://www.holux.com. - 6 -...

  • Page 11: Installing Sim Card And Battery

    Installing SIM Card and Battery Tracker-007 without SIM card, battery and bottom cover Slide the SIM card into SIM socket and lock the SIM socket. Place the rubber into Tracker-007 as the arrow sign shown; see below. - 7 -...
  • Page 12 Holux Tracker-007 Install the included battery into Tracker-007 as the arrow sign shown; see below. Restore the bottom cover. The final assembly of Tracker-007. Secure the case by fasting the screws and inserting cap for water proof. - 8 -...
  • Page 13 Holux Tracker-007 Make sure that battery is fully charged before using this device. - 9 -...

  • Page 14: Ezspot Service

    Service is a multi-functional Holux tracker system which includes ezSpot in mobile phone and HTTP server at internet. ezSpot can work with Tracker-005 and Tracker-007 from Holux. The compatibility will be guaranteed for Holux products in the future. There are three position report operation modes in tracker: ezSpot, HTTP server or both.

  • Page 15: User Utility (Trackerconfig)

    Holux Tracker-007 User Utility (TrackerConfig) Note: Power on Tracker-007 before plugging in USB cable and connecting with TrackerConfig. Configurations can be set or read correctly only after system initialization being complete. USB Serial Device Driver Problem in Windows XP SP3 The program cannot be executed in Windows XP SP3 due to USB serial device driver problem.

  • Page 16: Installing Device Driver For Virtual Comm Port

    Holux Tracker-007 Move usbser.sys in SP2.cab to C:\WINDOWS\system32\drivers, C:\WINDOWS\Driver Cache\i386 and C:\WINDOWS\system32\dllcache. Overwrite the original file. Installing Device Driver for Virtual Comm Port Plug in 5-pin mini-USB cable. When connecting the device first time, OS will request to install the virtual COMM port driver.

  • Page 17: Parameter Setting And Retrieval

    Holux Tracker-007 A new MODEM device in device manager will appear after installation. Check Comm port number from Modem page. Parameter Setting and Retrieval Put SIM card and power on device before connecting with Utility - 13 -...
  • Page 18 Holux Tracker-007 Press “Open” button to open communication port. After program connecting to the device, press “Next” to setup - 14 -...

  • Page 19: Sim Pin

    Holux Tracker-007 SIM PIN If SIM card is locked, PIN unlock page will appear after comm. port being open. Default pin code in most of mobile phone is “1234”. Input PIN code and then Press “Unlock+Disable” button to unlock PIN function.

  • Page 20: Change Password And Reset Password

    Holux Tracker-007 Check “Get Device Parameter” button will get all settings in device. Change Password and Reset Password Input New Password and Press “Change Password” button to change password. Execute “Reset Password” button will reset password to default “12345”. This function can be used when password is forgotten.

  • Page 21: Report Phone Number Setting

    Holux Tracker-007 Report Phone Number Setting There are 4 phone numbers that can be set. Device will respond position request if caller phone number is in the list. Select phone type also. For Java phone, PDU SMS with destination port will be used to send position information. For Windows mobile phone, text SMS will be used.
  • Page 22 Holux Tracker-007 Press “Set to Deivce” button will set the settings into device. - 18 -...

  • Page 23: Basic Operation

    Mobile phone Mobile phone will call Tracker-007. Tracker-007 will start to acquire position if caller phone number is one of the 4 phone numbers pre-configured in the setting. Once the position is acquired and fixed, Tracker-007 will report the current position.

  • Page 24: Position Lock (Park)

    Holux Tracker-007 Java phone Mobile phone Position Lock (Park) Pressing park key for more than 2 seconds will activate the park mode. Green LED will blink every 2 seconds in park mode. Blue LED blinks every 2 seconds when device is getting a position fix.
  • Page 25 Mobile phone Java phone Mobile phone When ezSpot in mobile phone receives Tracker-007 SOS message, it will display SOS location of Tracker-007 for 10 sec, then the Unlock SOS screen appears. Click Unlock to unlock SOS. Click Cancel/Exit if you don’t want to unlock, the SMS screen re-appears.

  • Page 26: Terminology

    Short Message Service TTFF Time to First Fix ezSpot ezSpot Service is a multi-functional Holux tracker system which Service includes ezSpot in mobile phone and HTTP server at internet. ezSpot ezSpot is the tracking service program running in Java and Windows Mobiles phones.

  • Page 27: Appendix A. Specifications

    Holux Tracker-007 Appendix A. Specifications Physical Characteristics 5-pin Mini-USB connector with USB virtual COM port Dimensions: 76 x 42.5 x 20 mm Weight: 69 g Keys: power and park key Operation temperature: -10 °C ~ 55 °C Storage temperature: -20 °C ~ 70 °C...

  • Page 28: Power Consumption

    Holux Tracker-007 15 x 15 x 4 mm patch antenna Power Consumption Battery: Li-Ion Battery, 890 mAh Standby time 110 hours. Park mode with position fix at 5 minutes interval: 50 hours; Periodic tracking with position fix at 15 minutes interval: 70 hours.

  • Page 29: Fcc Regulations

    Holux Tracker-007 FCC Regulations This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 30 Holux Tracker-007 - 26 -...
  • Page 31 HOLUX Technology, Inc. E-Mail: info@holux.com.tw Web: www.holux.com Copy right reserved by Holux Technology, Inc...
