Wireless GPS Logger
RCV-3000
User Manual
Version: 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RCV-3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Holux RCV-3000

Summary of Contents for Holux RCV-3000

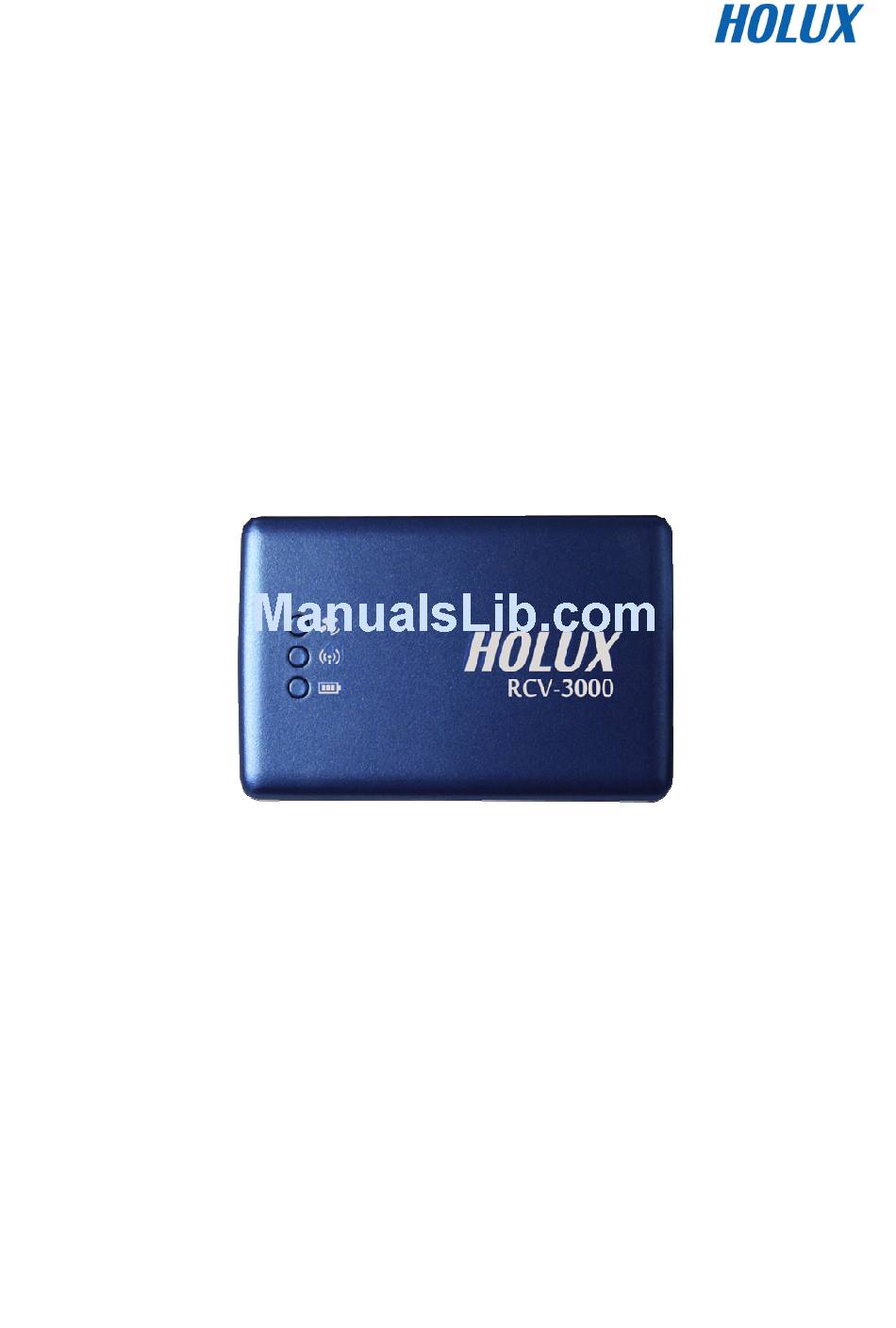

  • Page 1 Wireless GPS Logger RCV-3000 User Manual Version: 1.1...

  • Page 2: Table Of Contents

    Table of Contents Overview.........................4 Packing List ........................5 Main features .........................6 Technical Specification ....................7 Getting Started.......................9 ..................11 ARDWARE ESCRIPTION RCV-3000 L .........13 OGGER RACK OGGING AND ETTING ............15 LUETOOTH DEVICE CONNECTION INSTALLATION GPS V ............17 NSTALLATION OF IEWER PROGRAM GPS V ...............17...

  • Page 3: Safety Precautions

    HOLUX, or repairs done by anyone other than HOLUX and authorized retail/service providers.

  • Page 4: Copyright Information

    No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any mean, without the express written permission of HOLUX Technology, Inc. Copyright, All Rights Reserved.

  • Page 5: Overview

    RCV-3000 is a dual-function GPS Logger. Not only transmit satellite information through the PDA or Notebook by Bluetooth interfaces but also is a G-Mouse GPS Logger through a HOLUX designed data cable to deliver satellite signal to the device without Bluetooth interface.

  • Page 6: Packing List

    Packing List Thank you for purchasing the RCV-3000 Wireless GPS Logger. Before you start, make sure that the following items are included in your package. If any of these items are missing, please contact your original local HOLUX dealer or distributor.

  • Page 7: Main Features

    Main features 1). Built in MTK MT3329 Low power consumption GPS chipset. 2). 66 parallel satellite-search channels for fast acquisition and reacquisition. 3). Superior sensitivity up to -165dBm. 4). Built-in WAAS/EGNOS Demodulator without any additional hardware. 5). Compatible with Bluetooth Serial Port Profile (SPP) completely. 6).

  • Page 8: Technical Specification

    External Voltage: 5V DC +/-5% • Batteries: Main Power: Built-in rechargeable Lithium-ion for system • power. Power Consumption: 50~60mA (Normal mode)/ 25mA (Power Saving). • Power Supply Auto Power saving mode. • Circuit protection on RCV-3000 when over-temperature condition 50°C • occurs.
  • Page 9 Output • I. Output protocol Baud Rate: 38400 bps Data bit: 8 Parity: No Stop bit: 1 II. Format. NMEA0183 V3.01: GPGGA (1time/1 sec), GPGSA (1 Output and time/5 sec.), GPGSV (1time /5 sec.), GPRMC (1time /1 sec.), Interface GPVTG (1 time/1 sec), (GLL, or MTK NMEA Command for optional).

  • Page 10: Getting Started

    Getting Started STEP 1. Charge Battery Please charge battery till LED off for the first time. Power cable plug in Power cable connect to power socket ↓ Charge Battery Battery Power too low -------------- Red LED indicator light: Charging -------------------- Green LED Full or Not in charging LED off...
  • Page 11 GPS Status－ － － － Put RCV-3000 in clear view of the sky without any obstruction for better satellite acquiring. Turn on RCV-3000 power Turn off RCV-3000 power ↓ ↓ Steady orange Orange Search GPS Power Off LED on LED off ↓...

  • Page 12: Hardware Description

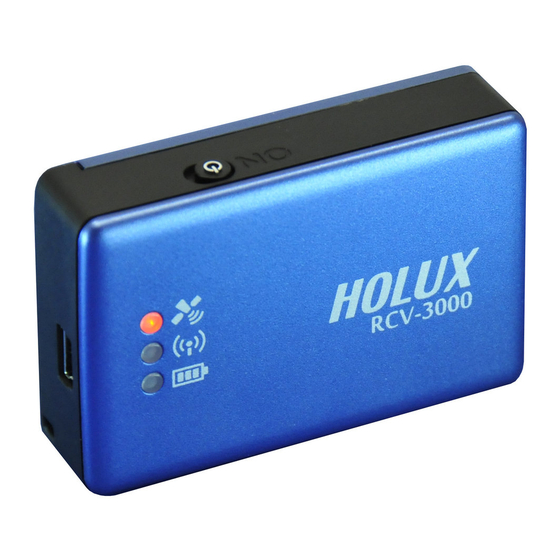

    Hardware Description RCV-3000 Body description Power switch LED of GPS (Orange) Wireless LED (Blue) LED of Battery (Red / Green) LED status: SYMBOL COLOR STATUS DESCRIPTION 1 time / 1 sec Transferring Data 1 time / 3 sec Standby Mode...
  • Page 13 Power Jack & Data Port Jack type: Mating face of 5 pin Mini USB Type B female. Pin definitions see following table. Pin Name Signal and description Positive terminal of DC adaptor that powers the internal charging circuit of VCHARG Li-Ion battery.

  • Page 14: Rcv-3000 Logger Track Logging And Mode Setting

    RCV-3000 Logger Track Logging and Mode Setting Data Logging When the power is turned on, the device will automatically search for satellite positioning (orange LED on), and then logging will begin. When the power is switched off, the logging will stop. When the power is turned on again, it will once again conduct satellite positioning and start logging.
  • Page 15 4. Make sure that the RCV-3000 is connected to a PC or notebook, and select [reconnect] or [manual settings] 5. The logger can be set to record by a set time or set distance. The conditions for recording can be set the following ways: (1) Select car, bicycle, exercising, or walking mode.

  • Page 16: Bluetooth Device Connection Installation

    Bluetooth device connection installation The product includes the application Mini GPS viewer for easy viewing and testing or GPS status. The following is the steps of software installation to setup on PDA, DELL AXIM x51v with Bluetooth Manager. For other PDA or laptop device, the steps might vary. 1.
  • Page 17 6. Go to the “COM ports” panel to tap “New Outgoing Port”, choose “HOLUX_RCV-3000” device and tap “Next”. → 7. Select the COM port, then tap finish, it will show as right figure, and tap “OK” to finish the Bluetooth setting. Recommend not to use “Secure Connection”...

  • Page 18: Installation Of Mini Gps Viewer Program

    Installation of Mini GPS Viewer program We provide a program “Mini GPS viewer.exe” for end user to watch the satellite signal receiving status on laptop or PDA device. For Windows 2000/XP OS, you can execute “Mini GPS viewer_PC” directly. For Microsoft Pocket PC, please copy “Mini GPS viewer_PPC” to SD card or device, then execute “Mini GPS viewer_PPC”.

  • Page 19: Driver Installation

    Starts the driver installer from HOLUX website. II. Connect USB data cable to computer. System will search new hardware and install the driver automatically. III. Connect RCV-3000 GPS Logger with USB data cable. Important Verify the COM port to start using your own navigation software.

  • Page 20: Troubleshooting

    COM port is Can not open the COM port Check and close other conflicted/ occupied by other programs that might conflict programs. with. Re-Start PDA or PC and refer Can not find RCV-3000 Poor Bluetooth connection to “Bluetooth device connection installation” .

  • Page 21: Federal Communications Commission (Fcc) Statement

    Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
