GPS Tracking System

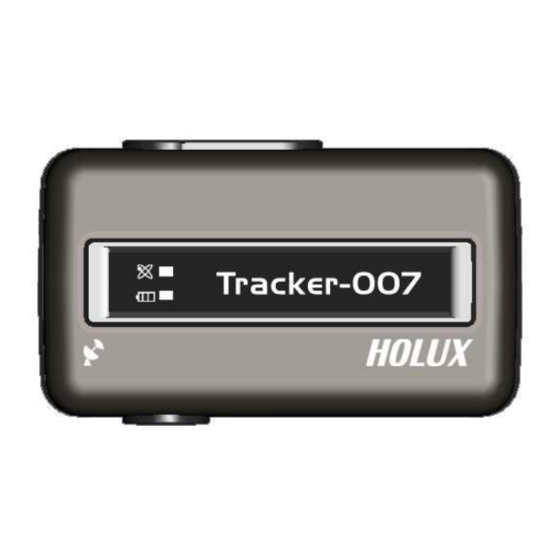

Tracker-007
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tracker-007 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Holux Tracker-007

Summary of Contents for Holux Tracker-007

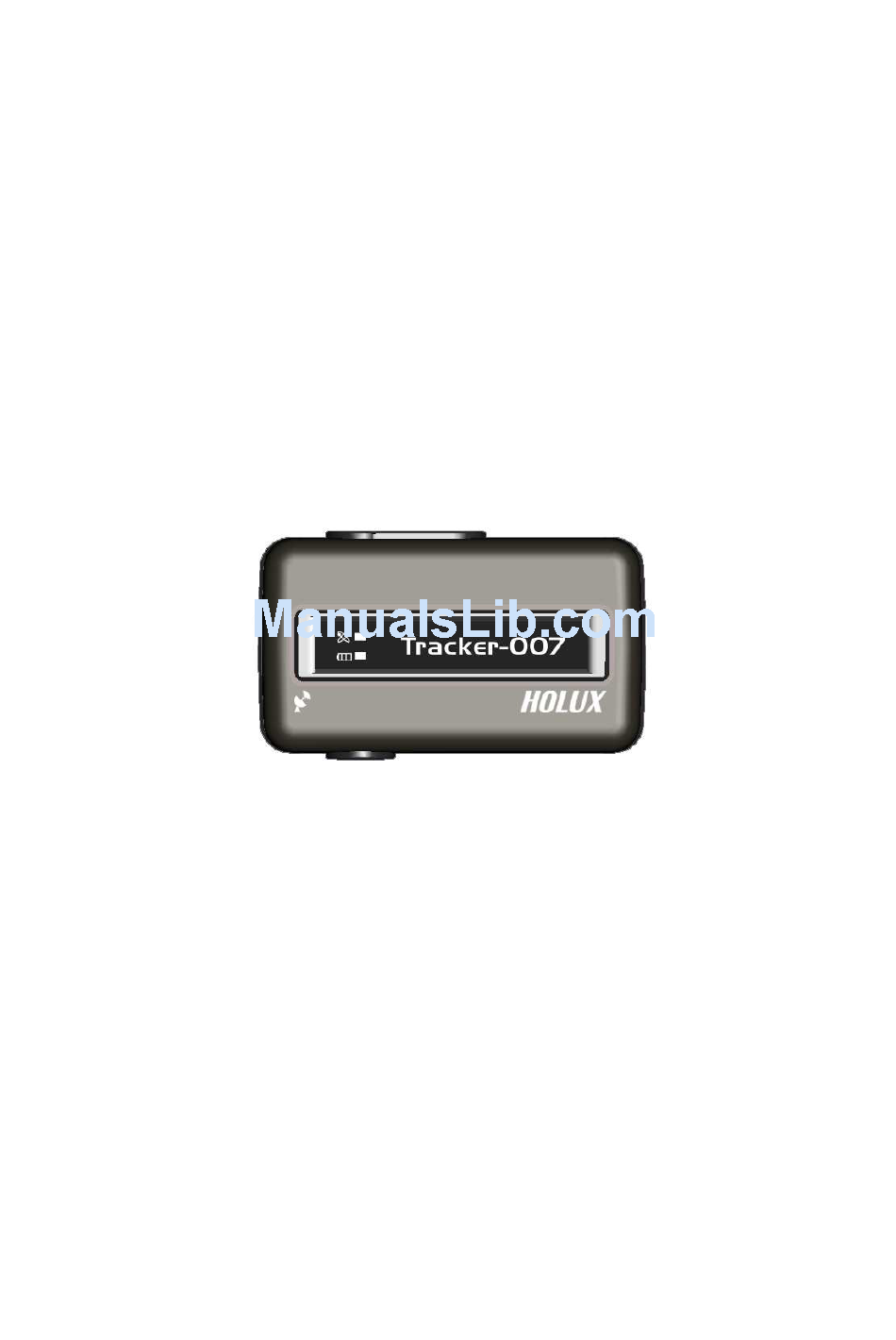

  • Page 1 GPS Tracking System Tracker-007 User’s Manual...

  • Page 2: Table Of Contents

    Table of Contents Introduction........................1 Application .........................1 Parts names and Functions........................... 2 LED Indication ............................... 3 Package Contents ............................4 Before You Getting Started ....................5 Possible Additional Fee..........................5 About GPS..............................5 About Power ..............................5 For XP SP3 Users ............................5 About SIM PIN Code &...
  • Page 3 Physical Characteristics ..........................23 System................................. 23 GPRS Protocol ............................23 GSM Antenna .............................. 23 Certification..............................23 GSM module..............................23 GPS ................................23 Power Consumption ............................ 24...

  • Page 5: Introduction

    Holux Tracker-007 Introduction Tracker-007 is a multi-functional tracker. Combining with GPRS and high performance GPS, the device can be used to track and report device’s position and status to mobile phone through SMS or Main Data Server (MDS) through HTTP. The operation modes include continuous tracking and position lock (park).

  • Page 6: Parts Names And Functions

    Holux Tracker-007 Parts names and Functions Park Key GPS Status (Blue LED) USB Connector Power Signal (Amber) & Status SOS, Press two Signal (Green) keys together. - 2 -...

  • Page 7: Led Indication

    Holux Tracker-007 LED Indication Item LED icon /color Status Indication Power Blinks every 4 Battery is low Amber seconds Glows steadily Battery is recharging Amber Glows steadily Battery is full Green Blinks every 4 Device is functioning Green seconds normally Blink every 0.5...

  • Page 8: Package Contents

    Holux Tracker-007 Package Contents Thank you for purchasing the Tracker-007 wireless GPS logger. Before you start, make sure that the following items are included in your package. If any of these items are missing, please contact your original local HOLUX dealer or distributor.

  • Page 9: Before You Getting Started

    • Tracker-007 cannot be powered on if battery voltage is below 3.5 volts. For XP SP3 Users •...

  • Page 10: About Sim Pin Code & Gprs

    Holux Tracker-007 About SIM PIN Code & GPRS Notice: SIM PIN should be unlocked before being inserted into the device. SIM PIN can be disabled through ordinary mobile phone. • SIM card GPRS function enabled is required for normal operation.

  • Page 11: Installing Sim Card And Battery

    Installing SIM Card and Battery Tracker-007 without SIM card, battery and bottom cover Slide the SIM card into SIM socket and lock the SIM socket. Install the included battery into Tracker-007 as the arrow sign shown; see below. - 7 -...
  • Page 12 Holux Tracker-007 Restore the bottom cover. The final assembly of Tracker-007. Secure the case by fasting the screws and inserting cap for water proof. Make sure that battery is fully charged before using this device. - 8 -...

  • Page 13: Ezspot Service

    Service is a multi-functional Holux tracker system which includes ezSpot in mobile phone and ezSpot server at internet. ezSpot can work with Tracker-005 and Tracker-007 from Holux. The compatibility will be guaranteed for Holux products in the future. There are three position report operation modes in tracker: ezSpot, ezSpot server or both.

  • Page 14: User Utility (Trackerconfig)

    Holux Tracker-007 User Utility (TrackerConfig) Note: Power on Tracker-007 before plugging in USB cable and connecting with TrackerConfig. Configurations can be set or read correctly only after system initialization being complete. The Tracker-007 enable users the communication with mobile phone through SMS as default.
  • Page 15 Holux Tracker-007 A new MODEM device in device manager will appear after installation. Check Comm port number from Modem page. - 11 -...

  • Page 16: Parameter Setting And Retrieval

    Holux Tracker-007 Parameter Setting and Retrieval Press “Connect” button. After program connecting to the device, it will show a “Next” message in new Diagnostic page and the button name will be changed to “Close”. - 12 -...

  • Page 17: Read Device Information

    Holux Tracker-007 If SIM card is not detected or is locked, “Ready” will not be shown on message frame. Read Device information Check “Read” button will get all information in device. Change Password and Reset Password Press “Set” button in password group to change password.

  • Page 18: Report Phone Number Setting

    Holux Tracker-007 be used when password is forgotten. Report Phone Number Setting There are 4 phone numbers that can be set. Device will respond position request if caller phone number is in the list. - 14 -...

  • Page 19: Message Type Setting

    Holux Tracker-007 Message Type Setting The function can be used to set parameter for report target. Tracker-007 can report position to ezSpot in mobile phone or ezSpot server [ezSpot]: Tracker-007 will send position to ezSpot through SMS. [ezSpot Server]: Tracker-007 will send position to ezSpot server (or MDS) through HTTP.

  • Page 20: Phone Number Setting

    Holux Tracker-007 Phone Number Setting [Number]: Number (MSISDN) is the phone number of SIM card in Tracker-007. Continuous Tracking [Continuous tracking setting] In continuous tracking mode, Tracker-007 will report position to ezSpot server at the preset interval. - 16 -...

  • Page 21: Sim Pin

    Holux Tracker-007 [Interval (min)]: This is the duration, in seconds, for which continuous tracking needs to be done. If 0 is passed to the continuous tracking. SIM PIN SIM PIN can be locked or unlocked through “SIM Card” function. SIM PIN code can also be changed.

  • Page 22: Epo Setting

    Holux Tracker-007 EPO Setting EPO data can speed up TTFF at weak GPS environment. User can enable or disable this function. Device will update EPO data every three days. - 18 -...

  • Page 23: Basic Operation

    Mobile phone Mobile phone will call Tracker-007. Tracker-007 will start to acquire position if caller phone number is one of the 4 phone numbers pre-configured in the setting. Once the position is acquired and fixed, Tracker-007 will report the current position.

  • Page 24: Position Lock (Park)

    Holux Tracker-007 Java phone Mobile phone Position Lock (Park) Pressing park key for more than 2 seconds will activate the park mode. Green LED will blink every 2 seconds in park mode. Blue LED blinks every 2 seconds when device is getting a position fix.
  • Page 25 Mobile phone Java phone Mobile phone When ezSpot in mobile phone receives Tracker-007 SOS message, it will display SOS location of Tracker-007 for 10 sec, then the Unlock SOS screen appears. Click Unlock to unlock SOS. Click Cancel/Exit if you don’t want to unlock, the SMS screen re-appears.

  • Page 26: Terminology

    Java and Windows Mobiles phones. ezSpot ezSpot server is demo tracking service web site at Holux. Domain server name http://ezspot.holux.com/Holux - 22 -...

  • Page 27: Appendix A. Specifications

    Holux Tracker-007 Appendix A. Specifications Physical Characteristics 5-pin Mini-USB connector with USB virtual COM port Dimensions: 76 x 42.5 x 20 mm Weight: 69 g Keys: power and park key Operation temperature: -10 °C ~ 55 °C Storage temperature: -20 °C ~ 70 °C...

  • Page 28: Power Consumption

    Holux Tracker-007 15 x 15 x 4 mm patch antenna Power Consumption Battery: Li-Ion Battery, 890 mAh Standby time 110 hours. Park mode with position fix at 5 minutes interval: 50 hours; Continuous tracking with position fix at 15 minutes interval: 70 hours.

  • Page 29: Fcc Regulations

    Holux Tracker-007 FCC Regulations This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 30 Holux Tracker-007 - 26 -...
  • Page 31 HOLUX Technology, Inc. E-Mail: info@holux.com.tw Web: www.holux.com Copy right reserved by Holux Technology, Inc...
