Protective Cover
Camera Lens
Inner Cover
Reset Button
Resets camera to
factory default settings
Power Connector
Connects to an optional 12 V / 1.5 A
power adapter (not included)
Ethernet Jack
RJ-45 connector for Ethernet, can also be used to power
the camera using Power over Ethernet (PoE)
D-Link DCS-4602EV Quick Installation Guide

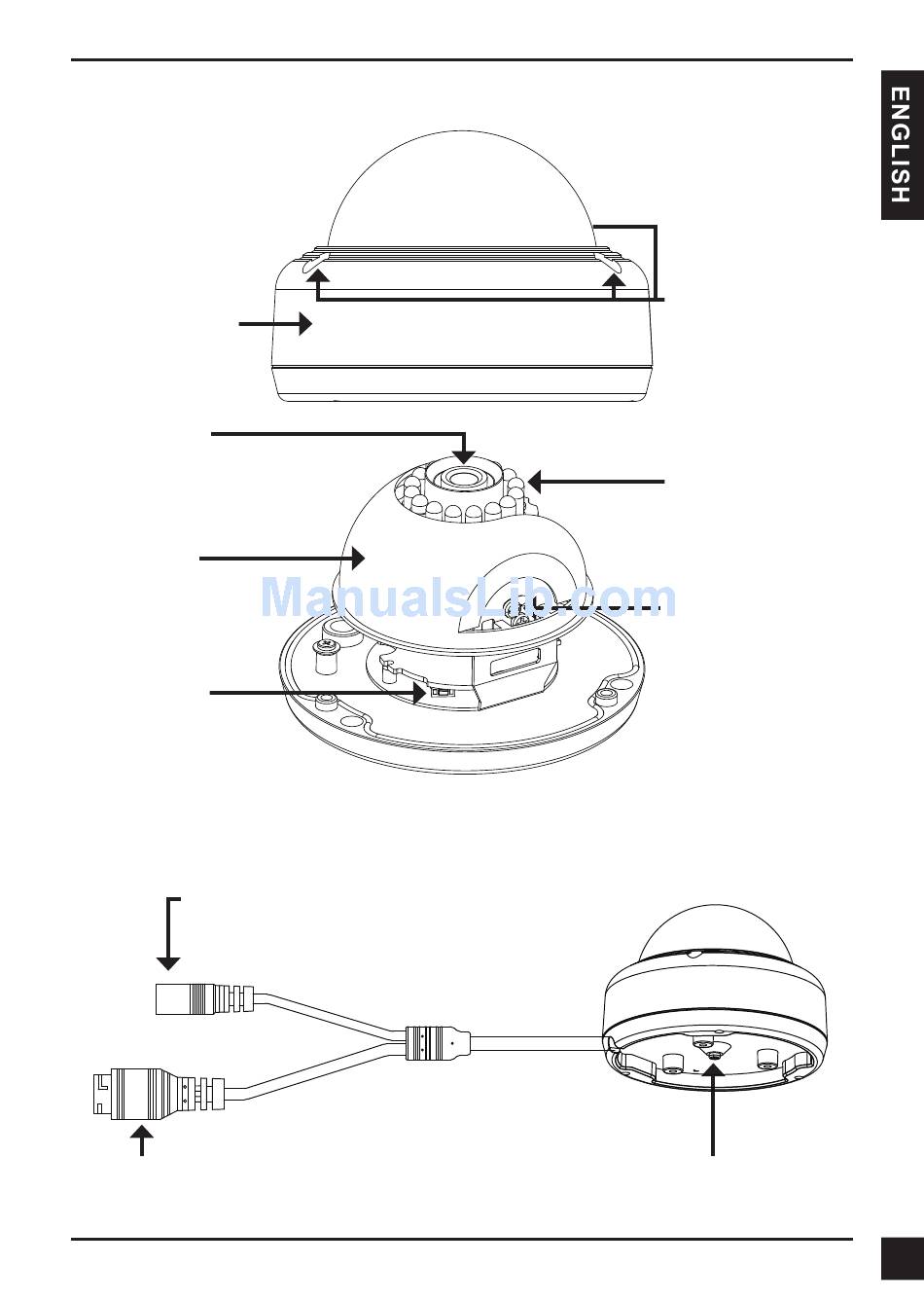

Hardware Overview

Cover Screws
The three screws can be
removed with the included
wrench
IR LEDs
Provide illumination for
low-light environments
Tilt Adjustment Screw
Can be loosened to adjust
camera angle
Grounding Screw
Can be attached to a
grounding wire if desired
