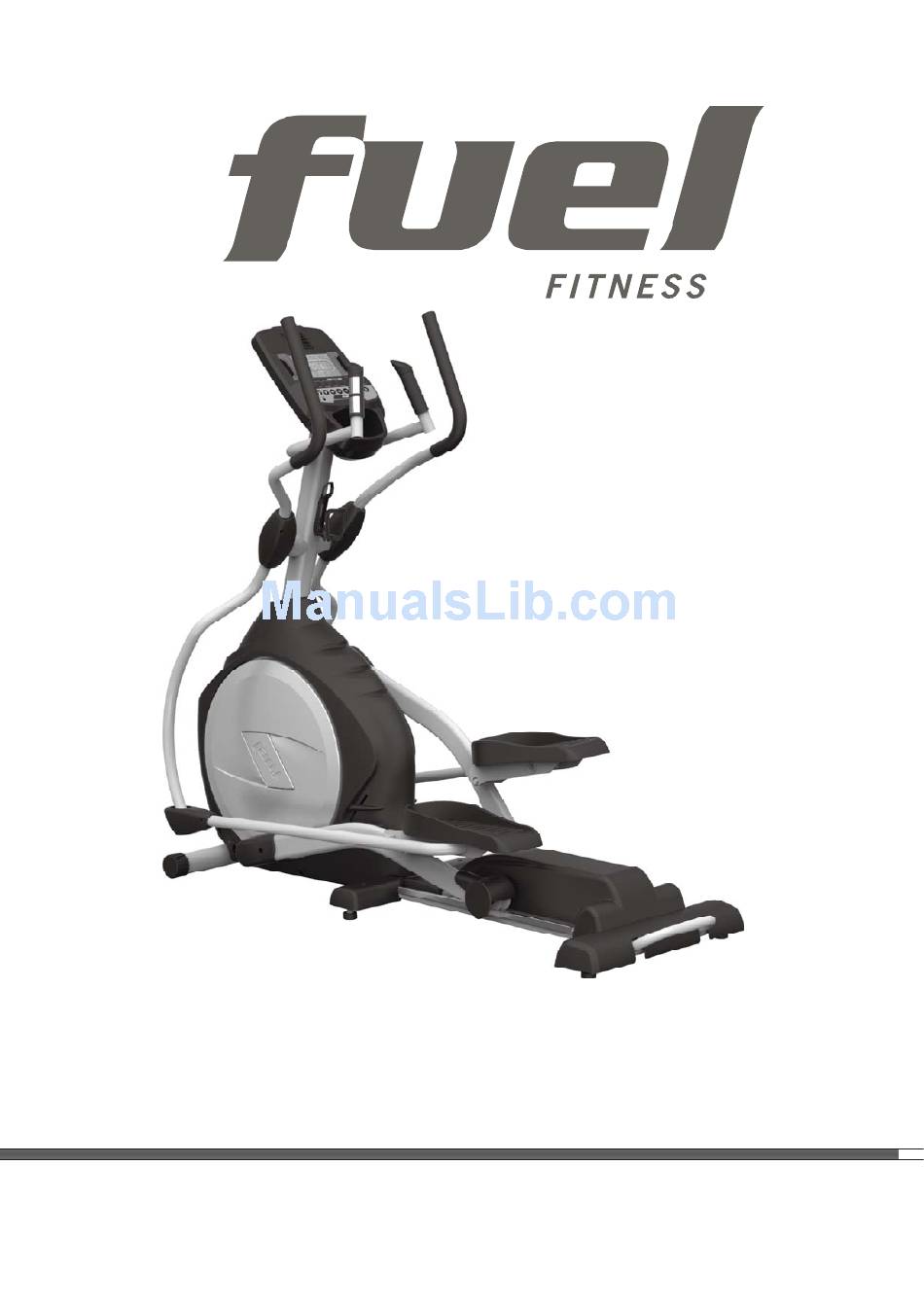

- Page 1 FE48 ELLIPTICAL OWNER’S MANUAL PLEASE CAREFULLY READ THIS ENTIRE MANUAL BEFORE OPERATING YOUR NEW ELLIPTICAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Product Registration Important Safety Instructions Important Electrical Instructions Important Operation Instructions FE48 Assembly Instructions Operation of Your Console General Maintenance Manufacturer’s Limited Warranty ATTENTION THIS ELLIPTICAL IS INTENDED FOR RESIDENTIAL USE ONLY AND IS WARRANTED FOR THIS APPLICATION. ANY OTHER APPLICATION VOIDS THIS WARRANTY IN ITS ENTIRETY. -
Page 3: Product Registration
Congratulations On Your New Elliptical and Welcome to the FUEL Fitness Family! Thank you for your purchase of this quality elliptical from FUEL Fitness. Your new elliptical has been manufactured by one of the leading fitness manufacturers in the world. FUEL Fitness will do all we can to make your ownership experience as pleasant as possible for many years to come. -
Page 4: Important Safety Instructions
Failure to follow all guidelines may compromise the effectiveness of the exercise experience, expose yourself (and possibly others) to injury, and reduce the longevity of the equipment. SAVE THESE INSTRUCTIONS - THINK SAFETY! FE48 ELLIPTICAL... -
Page 5: Important Electrical Instructions
3. Use the / keys to select the DISPLAY MODE, then press Enter key. 4. Use the / keys to turn ON or OFF the DISPLAY MODE function. 5. Hold the Stop key to save and exit Engineering Mode. FE48 ELLIPTICAL... - Page 6 Spring Washer (4 pcs) Star Washer (4 pcs) Hex Head Bolt (2 pcs) #116. 3/8" × 3-3/4"_Hex #113. 3/8" × 3/4"_ Head Bolt (3 pcs) Hex Head Bolt (1 pc) #112. 5/16" × 2-1/4"_ Hex Head Bolt (4 pcs) FE48 ELLIPTICAL...
- Page 7 #146. Ø5/16" × Ø20 × 1.5T_ Hex Head Bolt (2 pcs) Nyloc Nut (2 pcs) Flat Washer (2 pcs) HARDWARE STEP 4 #121. M5 × 15m/m_ #124. 3.5 × 12m/m_ Phillips Head Screw (12 pcs) Sheet Metal Screw (8 pcs) FE48 ELLIPTICAL...
-
Page 8: Assembly Tools
ASSEMBLY TOOLS #161. Combination M5 Allen Wrench & #162. Phillips Head Screw Driver Phillips Head Screw Driver #160. 13/14m/m_Wrench #163. 12/14m/m_Wrench FE48 ELLIPTICAL... -
Page 9: Fe48 Assembly Instructions
Plug all of the connectors into the back of the console; Computer Cable (41), two Hand pulse Cables (47), Resistance switch wire (56) and Incline switch wire (57). Secure the Console (38) on the console mounting plate with four Phillips Head Screws (123). FE48 ELLIPTICAL... - Page 10 CONSOLE MAST & CONSOLE FE48 ELLIPTICAL...
- Page 11 L (left) and R (right). Make sure the handlebars are facing the correct direction – see il-lustration. Place two Flat Washers (145) onto the two Hex Head Bolts (109) and install, and tighten, in the threaded holes in the ends of the axle. FE48 ELLIPTICAL...
- Page 12 Lower Handle Bar (4 & 5). The connector arm end should be on the inside of the Handle Bar bracket. Secure both sides with a Hex Head Bolt (111), Flat Washer (146) and Nylon Nut (134) by using the Wrenches provided (160 & 163). FE48 ELLIPTICAL...
- Page 13 Level 8 and install the Incline Bottom Cover (98) up against the middle stabilizer tube with two Phillips Head Screws (121). 6. At last, press Rear Bar Cover (100) onto Inclinable Rail Assembly at the rear. FE48 ELLIPTICAL...
-
Page 14: Operation Of Your Console
The odometer and time will remain displayed for only a few seconds then the console will go to the startup display. The dot matrix display will be scrolling through the different workout profiles and the Message Window will be scrolling the start up message. You may now begin to use the console. FE48 ELLIPTICAL... -
Page 15: Console Operation
) on the front of the console and built-in speakers. You may plug any low-level audio source signal into this port. Audio sources include MP3, iPod, portable radio, CD player or even a TV or computer audio signal. There is also a Headphone Jack ( )for private listening. FE48 ELLIPTICAL... - Page 16 If you enter Age and Weight the first time you use the elliptical you will not have to enter it every time you work out unless either Age or Weight has changed or someone else enters a different Age and Weight. FE48 ELLIPTICAL...
-
Page 17: Programmable Features
Window by pressing the key. 8. When the program ends the Message Window will show a summary of your workout. The summary will be displayed for a short time then the console will return to the startup display. FE48 ELLIPTICAL... - Page 18 Your cardiovascular system gets programmed to use oxygen more efficiently this way. This program also forces your body to become more efficient due to spikes in heart rate, between recovery periods. This aids in heart rate recovery from intense activities. WORK INCLINE FE48 ELLIPTICAL...
- Page 19 Enter key. Press the Start key to switch Dot Matrix from work to incline profile. When the program ends the Message Window will show a summary of your workout. The summary will be displayed for a short time then the console will return to the start-up display. FE48 ELLIPTICAL...
- Page 20 80% or 60%, respectively, of your MHR on a schedule approved by your physician. Consult your physician before participating in any exercise program. FE48 ELLIPTICAL...
- Page 21 RPE will support this. If you are feeling tired and sluggish, it is because your body needs a break. In this condition, your pace will feel difficult. Again, this will show up in your RPE and you will train at the proper level for that day. FE48 ELLIPTICAL...
- Page 22 8. During the HR1 or HR2 programs you will be able to scroll through the data in the Enter Message Window by pressing the adjacent key. When the program ends you may press Start to begin the same program again or Stop to exit the program. FE48 ELLIPTICAL...
-
Page 23: General Maintenance
Incline Calibration: If there is a problem with the incline, try running the calibration. Press the Incline ▲ key and the Start key at the same time. Hold them down for 5 seconds and then press Start to begin the calibration. If the problem persists contact service department. FE48 ELLIPTICAL... -
Page 24: Manufacturer's Limited Warranty
Effective August 1, 2015 - ELLIPTICAL LIMITED WARRANTY FUEL Fitness Inc. warrants all its home use elliptical parts for a period of time listed below, from the date of retail sale, as determined by a sales receipt or in the absence of a sales receipt, eighteen (18) months from the original factory shipping date. FUEL Fitness’... - Page 25 FITNESS www.fuelfitnessusa.com 2015 AII Rlghts Reserved. FE48 Owner's Manual...
