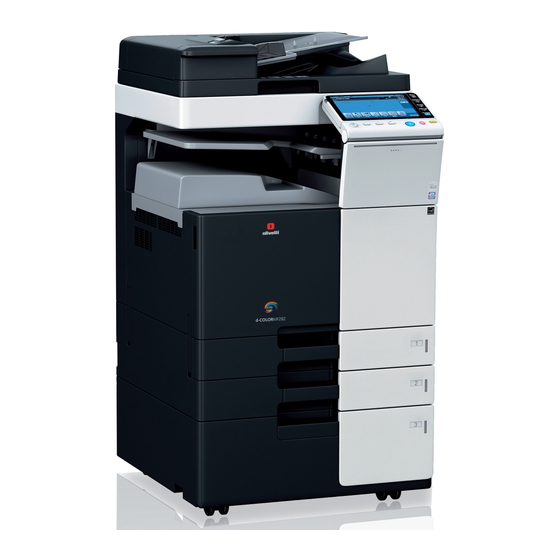

Multifuction Digital Copier
d-Color MF552Plus, MF452Plus
and Options
SERVICE MANUAL
Code: Y117750-5

Advertisement

Table of Contents
loading

Related Manuals for Olivetti d-color MF552PLUS

Summary of Contents for Olivetti d-color MF552PLUS

  • Page 1 Multifuction Digital Copier d-Color MF552Plus, MF452Plus and Options SERVICE MANUAL Code: Y117750-5...

  • Page 2: Parts Layout Drawing

    L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING L PARTS/CONNECTOR LAYOUT DRAWING 1. PARTS LAYOUT DRAWING 1.1 d-Color MF552Plus/MF452Plus 1.1.1 Scanner section [10] Angle sensor (PS202) Original size sensor/2 (PS205) CCD board (CCDB) Original cover sensor (RS201)
  • Page 3 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING Main power switch (SW1) [10] Front door switch (SW2) [11] Front upper door sensor (PS43) [12] Toner empty sensor/Y (PS34) [13] Erase LED/Y (EL/Y) [14] Erase LED/M (EL/M) [15]...
  • Page 4 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING 1.1.3 Back side (1) Board (a) MF552Plus [13] [12] [11] [10] ERP board (ERPB) Expansion control board (EXCB) Printer control board (PRCB) High voltage unit (HV) CPU cooling fan (FM14)
  • Page 5 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING (b) MF452Plus [11] [10] ERP board (ERPB) Expansion control board (EXCB) Printer control board (PRCB) High voltage unit (HV) CPU cooling fan (FM14) Hard disk (HDD) Memory board/1 (MEMB/1)
  • Page 6 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING (2) Switch/sensor/others 1st transfer pressure sensor (PS39) Developing solenoid (SD4) Service port sensor (PS50) 750-5 Service Manual...
  • Page 7 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING (3) Load [15] [14] [13] [12] [11] [10] Toner bottle motor (M10) Fusing power supply cooling fan (FM12) Toner supply motor/Y (M9) PC motor (M2) Toner suction fan (FM11)

  • Page 8: Left Side

    L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING 1.1.4 Left side PH unit PH relay board (PHRYB) DC power supply (DCPU) 750-5 Service Manual...
  • Page 9 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING 1.1.5 Right side (1) MF552Plus IDC sensor/Rr (IDCS/Rr) Fusing loop sensor (PS2) IDC sensor/Fr (IDCS/Fr) IDC sensor shutter solenoid (SD2) Registration sensor (PS1) Temperature/humidity sensor (TEM/HUMS) Paper exit clutch (CL8)
  • Page 10 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING (2) MF452Plus IDC sensor/Rr (IDCS/Rr) Fusing loop sensor (PS2) IDC sensor/Fr (IDCS/Fr) IDC sensor shutter solenoid (SD2) Registration sensor (PS1) Temperature/humidity sensor (TEM/HUMS) Toner bottle cooling fan (FM4) Paper exit clutch (CL8)

  • Page 11: Manual Bypass Tray

    L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING 1.1.6 Manual bypass tray Bypass lift-up position sensor (PS26) Bypass FD paper size sensor/2 (PS29) Bypass FD paper size sensor/1 (PS28) Bypass CD paper size VR (VR1) Bypass paper empty sensor (PS27)
  • Page 12 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING 1.1.8 Tray 2 [10] Tray 2 vertical transport sensor (PS19) Tray 2 paper feed sensor (PS20) Tray 2 empty indicator board (PEIB/2) Tray 2 paper empty sensor (PS21) Tray 2 upper limit sensor (PS22)
  • Page 13 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING Heating roller temperature sensor (TEMS) [10] IH coil cooling fan (FM7) [11] Fusing motor (M3) [12] Fusing pressure motor (M11) (2) MF452Plus Heating roller thermostat (TS1) Heating roller temperature sensor (TEMS)

  • Page 14: Duplex Section

    L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING 1.1.10 Duplex section Reverse motor (M4) ADU transport motor (M5) ADU paper passage sensor/1 (PS40) ADU paper passage sensor/2 (PS41) Transport motor (M1) ADU transport clutch (CL6) 1.2 DF-701/SP-501...
  • Page 15 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING Document reading motor (M1) Document feed motor (M2) CIS cleaning motor (M5) DF cooling fan motor (FM1) Stamp solenoid (SD1) * Document reading glass cleaning motor (M6) Registration motor (M3) Reading roller release motor (M4) •...
  • Page 16 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING 1.3 PC-210/PC-110 (Option) 1.3.1 Board/switch/sensor/others [18] [17] [16] [15] [14] [13] [10] [12] [11] Right bottom door sensor (PS111) Tray 3 upper limit sensor (PS116) Tray 3 vertical transport sensor (PS113)
  • Page 17 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING 1.4 PC-410 (Option) 1.4.1 Board/switch/sensor/others [15] [14] [13] [12] [11] [10] Right bottom door sensor (PS131) Main tray upper limit sensor (PS136) Main tray upper paper empty sensor (PS137)
  • Page 18 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING 1.5 LU-204 (Option) [14] [13] [12] [11] [10] LU door switch (MS1) Near empty sensor /2 (PS6) Paper empty sensor (PS4) Tray LED (LED) Dehumidification heater (DH) Tray set sensor/2 (PS7)
  • Page 19 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING Lift-up motor (M1) [10] Paper feed motor (M2) [11] Transport motor (M3) [12] LU drive board (LUDB) [13] Near empty sensor /1 (PS5) 1.7 JS-506 (Option) Exit tray1 full sensor (PS2)
  • Page 20 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING [12] [11] [10] Paper feed sensor (PS101) Alignment plate home sensor/F (PS108) Pick up roller position sensor (PS105) Stapler relay board (STREYB) Stapler home sensor (PS110) Finisher lock switch (SW1)
  • Page 21 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING 1.10 FS-534 (Option) [12] [11] [10] Main tray up/down motor (M11) FNS discharge motor (M3) FNS entry transport motor (M2) FNS paddle motor (M5) Receving roller retraction motor (M4)
  • Page 22 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING [25] Staple stacker paper detection sensor (PS31) [26] Gripper position detection sensor (PS19) [27] Stapler home position sensor (Rear) (PS23) [28] Main tray upper position sensor/R (PS26) [29] Main tray upper sensor/out (PS6)
  • Page 23 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING 1.12 SD-511 (Option) [10] Alignment motor (M3) SD transport motor (M1) Paper discharge control motor (M2) Center fold guide motor (M8) Tri-folding guide motor (M6) SD paddle motor (M7)
  • Page 24 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING 1.13 FS-535 (Option) [18] [19] [16] [17] [15] [14] [13] [12] [11] [10] Sub tray switching gate solenoid (SD3) Bypass transport motor (M3) 2nd transport motor (M2) Stacker transport motor (M10)
  • Page 25 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING [27] Main tray top surface sensor (PS4) [28] Alignment plate motor home sensor/Rr (PS18) [29] Sub tray full sensor (PS9) [30] Sub tray exit sensor (PS8) [31] Main tray upper limit sensor/out (PS45)
  • Page 26 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING 1.15 SD-512 (Option) [11] [10] Alignment motor (M3) SD transport motor (M1) Paper receiving guide control motor (M2) Tri-fold guide motor (M6) Center fold change motor (M8) SD paddle motor (M7)
  • Page 27 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING 1.16 JS-602 (Option) 3rd Entrance switching solenoid (SD401) Job tray paper exit sensor (PS402) Job tray full sensor (PS403) Job tray cover sensor (PS401) 1.17 PI-505 (Option) [1] [2] [3] [4]...
  • Page 28 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING 1.18 ZU-606 (Option) [15] [14] [13] [12] [11] [10] Main motor cooling fan (FM601) Punch shift motor (M605) Punch shift home sensor (PS605) ZU control board (ZUCB) Circuit breaker/2 (CBR2)
  • Page 29 L PARTS/CONNECTOR LAYOUT DRAWING > 1. PARTS LAYOUT d-Color MF552Plus/MF452Plus DRAWING Punch motor (M604) Punch home sensor (PS606) Paper size detect board (PSDTB) Punch switchover switch (MS601) Punch switchover motor (M608) Punch clutch (CL601) L-28 750-5 Service Manual...

  • Page 30: Connector Layout Drawing

    L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING 2. CONNECTOR LAYOUT DRAWING 2.1 BOARD CONNECTOR LAYOUT DRAWING 2.1.1 d-Color MF552Plus/MF452Plus (1) Printer control board (PRCB) MF552Plus CN12 (16pin) CN7 (9pin) CN10 (6pin) CN4 (9pin) CN6 (13pin) CN11...
  • Page 31 L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING MF452Plus CN12 (16pin) CN7 (9pin) CN10 (6pin) CN5 (12pin) CN33 (8pin) CN11 (9pin) (12pin) CN13 CN8 (10pin) CN9 (16pin) (16pin) CN36 (4pin) (12pin) CN15 CN35 (6pin) (2pin) CN14 (20pin)
  • Page 32 L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING (2) MFP board (MFPB) PJ15 (26pin) PJ27 (2pin) PJ04 (8pin) PJ01 (20pin) PJ23 (50pin) PJ13 PJ22 (20pin) PJ41 (N.C.) DIMM0 PJ21 (88pin) DIMM1 PJ20 (3pin) PJ03 PJ28 (3pin) (50pin)
  • Page 33 L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING (4) PH relay board (PHRYB) CN2 (25pin) CN1 (25pin) (5) Scanner drive board (SCDB) PJ3 (6pin) PJ6 (3pin) PJ5 (7pin) PJ2 (10pin) PJ4 (4pin) PJ1 (8pin) (6) ERP board (ERPB)
  • Page 34 L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING (7) DC power supply (DCPU) (Type A:MF552Plus/MF452Plus) CN012 (2pin) CN010 (6pin) CN008 (9pin) CN007 (6pin) CN004 CN011 (2pin) (7pin) CN005 (7pin) CN006 (8pin) CN009 (9pin) CN001 (2pin) (8) DC power supply (DCPU) (Type B: MF452Plus)
  • Page 35 L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING (10) Dual scan image processing board (DSIPB) PJ03 PJ02 (50 pin) PJ01 PJ04 (88 pin) (11) IH power supply (IHPU) (5pin) (6pin) (2pin) (4pin) (12) NF board (NFB) CN103 (3pin)
  • Page 36 L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING (13) IH magnetic erasing board (IHMEB) CN1 (2pin) (14) Fusing power supply (FUPU) CN003(8pin) CN002 (4pin) CN001(2pin) (15) Expansion control board (EXCB) CN6(3pin) CN4(11pin) (15pin) (3pin) CN1(6 pin) CN2(10pin)
  • Page 37 L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING 2.1.2 DF control board (DFCB) (1) DF-701 (7pin) (4pin) (13pin) (4pin) (9pin) (3pin) (5pin) (4pin) (2pin) (7pin) (4pin) (3pin) (9pin) (3pin) (2pin) (10pin) (4pin) (3pin) (4pin) 2.1.3 PC control board (PCCB)
  • Page 38 L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING (2) PC-210 CN2 (2pin) CN13 (6pin) CN1 (13pin) (2pin) (9pin) (16pin) (9pin) (19pin) CN16 CN12 (8pin) (6pin) CN11 CN18 (18pin) (6pin) (6pin) (16pin) L-37 750-5 Service Manual...
  • Page 39 L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING (3) PC-410 CN2 (2pin) CN1 (13pin) (2pin) (16pin) (17pin) CN12 (8pin) CN11 CN10 CN14 CN15 (18pin) (7pin) (12pin) (10pin) 2.1.4 LU drive board (LUDB) CN4 (8pin) CN5 (20pin) CN3 (5pin)

  • Page 40: Js Control Board (Jscb)

    L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING 2.1.5 JS control board (JSCB) (1) JS-506 CN208 (5pin) CN101 CN201 CN200 (10pin) (6pin) (2pin) 2.1.6 FS control board (FSCB) (1) FS-533 CN999 CN111 CN110 CN106 (7pin) (4pin) (12pin)
  • Page 41 L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING (2) FS-534 (16pin) (10pin) (17pin) (3pin) (24pin) (2pin) (24pin) (32pin) (16pin) (8pin) (13pin) (10pin) (24pin) (2pin) (3pin) (6pin) (4pin) (4pin) (10pin) (3) FS-535 CN11 CN12 CN14 CN15 CN19 CN20...

  • Page 42: Sd Drive Board (Sddb)

    L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING 2.1.7 RU control board (RUCB) (1) FS-535 CN206 CN205 CN202 CN200 CN201 (6pin) (4pin) (2pin) (2pin) (6pin) CN204 (8pin) CN101 (10pin) 2.1.8 SD drive board (SDDB) (1) SD-511 (13pin)
  • Page 43 L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING 2.1.9 Stapler relay board (STREYB) (1) FS-533 CN121 (17pin) CN122 CN123 (5pin) (8pin) 2.1.10 PK control board (PKCB) (1) PK-519 CN202 (15pin) CN201 (3pin) CN203 (2pin) CN204 (18pin) L-42...
  • Page 44 L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING (2) PK-521 CN34 (6pin) CN35 (3pin) CN32 (8pin) CN33 (9pin) CN37 (6pin) CN36 (12pin) CN38 (11pin) CN301 CN300 (9pin) (3pin) 2.1.11 PI drive board (PIDB) CN53 (24pin) CN56 (6pin)

  • Page 45: Zu Control Board (Zucb)

    L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING 2.1.12 ZU control board (ZUCB) CN2 (11pin) CN3 (6pin) CN10 (9pin) CN4 (19pin) CN9 (7pin) CN6 (4pin) CN11 (13pin) CN15 (12pin) CN8 (12pin) CN102 (40pin) CN5 (6pin) CN14 (6pin)
  • Page 46 L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING 2.2 RELAY CONNECTOR LAYOUT DRAWING 2.2.1 MF552Plus (1) Main body [11] [10] [14] [12] [13] CN No. Location CN No. Location CN109 3 Pin 24-C CN151 12 Pin CN115...
  • Page 47 L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING [20] [19] [18] [17] [16] [15] [14] [21] [32] [22] [10] [23] [11] [31] [24] [13] [25] [12] [30] [26] [29] [27] [28] CN No. Location CN No. Location...
  • Page 48 L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING 2.2.2 d-Color MF452Plus (1) Main body [10] [16] [15] [14] [13] [11] [12] CN No. Location CN No. Location CN1FX 4 Pin 28-H CN151 12 Pin CN115 3 Pin...
  • Page 49 L PARTS/CONNECTOR LAYOUT DRAWING > 2. CONNECTOR d-Color MF552Plus/MF452Plus LAYOUT DRAWING [20] [2] [3] [19] [18] [17] [16] [15] [14] [21] [32] [22] [10] [23] [11] [31] [24] [13] [25] [12] [30] [26] [29] [27] [28] CN No. Location CN No.
