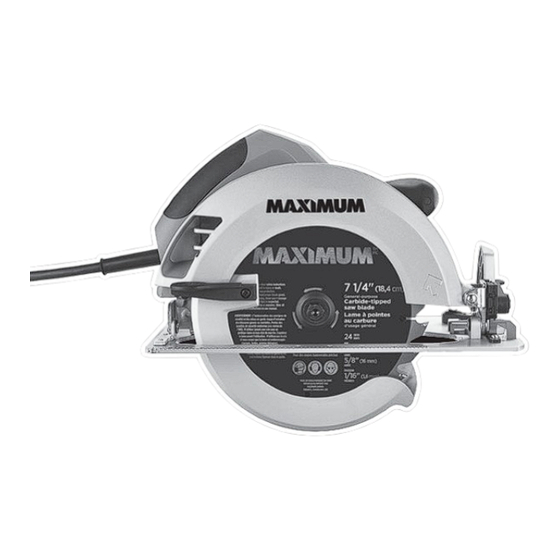

Summary of Contents for Maximum 054-8364-8
-
Page 3: Table Of Contents
TABLE OF CONTENTS TECHNICAL SPECIFICATIONS GENERAL POWER TOOL SAFETY WARNINGS SAFETY INSTRUCTIONS FOR ALL SAWS SYMBOLS PARTS LIST ACCESSORIES KNOW YOUR CIRCULAR SAW OPERATING INSTRUCTIONS WORKING HINTS FOR YOUR CIRCULAR SAW MAINTENANCE WARRANTY NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-888-670-6682 SAVE THESE INSTRUCTIONS This manual contains important safety and... -
Page 4: Technical Specifications
054-8364-8 | contact us 1-888-670-6682 TECHNICAL SPECIFICATIONS VOLTAGE 120 V 60 Hz AC CURRENT SINGLE SPEED 5000 RPM BLADE 7 1/4” (18.4 cm) 24-tooth carbide-tipped CUTTING CAPACITY CUTTING DEPTH AT 90° 2 7/16” (6.2 cm) CUTTING DEPTH AT 45° 1 7/8” (4.8 cm) BEVEL CAPACITY 0-56°... -
Page 5: General Power Tool Safety Warnings
WORK AREA SAFETY Keep work area clean and well lit. Cluttered or dark areas invite • accidents. Do not operate power tools in explosive atmospheres, such as in the • presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. -
Page 6: Electrical Safety
054-8364-8 | contact us 1-888-670-6682 ELECTRICAL SAFETY Power tool plugs must match the outlet. Never modify the plug in • any way. Do not use any adapter plugs with grounded power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. - Page 7 POWER TOOL USE AND CARE Do not force the power tool. Use the correct power tool for your • application. The correct power tool will do the job better and safer at the rate for which it was designed. Do not use the power tool if the switch does not turn it on and off. Any •...
-
Page 8: Safety Instructions For All Saws
054-8364-8 | contact us 1-888-670-6682 SAFETY INSTRUCTIONS FOR ALL SAWS CUTTING PROCEDURES DANGER: Keep hands away from cutting area and the blade. Keep your • second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade. - Page 9 to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding. When restarting a saw in the workpiece, centre the saw blade in the kerf •...
-
Page 10: Symbols
054-8364-8 | contact us 1-888-670-6682 SYMBOLS To reduce the risk of injury, user must read instruction manual Double insulation Warning Wear ear protection Wear eye protection Wear dust mask Don’t use in the rain... -
Page 11: Parts List
No. Description No. Description On/off switch Dust extraction outlet Auxiliary handle Fixed guard Spindle lock button Spindle Base plate angle scale Inner flange Rip fence lock screw Saw blade Base plate bevel lock Outer flange Sight line Blade bolt Rip fence Wrench Lower blade guard Depth-of-cut scale... -
Page 12: Accessories
054-8364-8 | contact us 1-888-670-6682 ACCESSORIES Saw blade Wrench Rip fence We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. - Page 14 054-8364-8 | contact us 1-888-670-6682 No. Description No. Description Screw & washer assembly Rivet Self-tapping screw Depth bracket Brand lable Rear support Side cover Washer Housing Power cord Brush Snap ring Carbon brush Lever Brush cover Washer Self-tapping screw...
-
Page 15: Operating Instructions
INTENDED USE The machine is intended for ripping and cross- cutting wood in straight cutting lines and with bevel angles to 56°, while resting firmly on the workpiece. CHANGING THE SAW BLADE • Before starting any work on the machine itself, unplug the saw. - Page 16 054-8364-8 | contact us 1-888-670-6682 inner flange (15) and outer flange (17) are correct. • When mounting, ensure that the cutting direction of the teeth (direction of arrow on saw blade) and the direction-of-rotation arrow on the blade guard match.
-
Page 17: Switching On And Off
CUTTING GUIDE (Fig. D) The sight line (7) fixed in front of the base plate is used as a cutting guide. Always guide it along the cutting mark made on the workpiece for accurate cutting. The cutting mark 0° indicates the position of the saw blade for right-angled cuts. -
Page 18: Working Hints For Your Circular Saw
054-8364-8 | contact us 1-888-670-6682 WORKING HINTS FOR YOUR CIRCULAR If your power tool becomes too hot, please run your circular saw no-load for 2-3 minutes to cool the motor. Avoid prolonged usage at very low speeds. Protect saw blades against impact and shock. -
Page 19: Maintenance
MAINTENANCE Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. Your tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. -
Page 20: Warranty
(with the same model, or one of equal value or specification), at the sole discretion of the Maximum Canada authorized repair centre (“Service Provider”). We will bear the cost of any repair or replacement and any costs of labour relating thereto. - Page 21 This warranty applies for a period of 5 years from the date of original retail purchase, as indicated on the bill of sale. Neither the retailer, Maximum Canada, nor the manufacturer shall be liable for any other expense, loss or damage, including, without limitation, any indirect, incidental, consequential or exemplary damages arising in connection with the sale, use or inability to use this product.
- Page 22 In addition to the 5-Year Limited Warranty, this MAXIMUM product is covered by our: 1-YEAR REPAIR WARRANTY...
