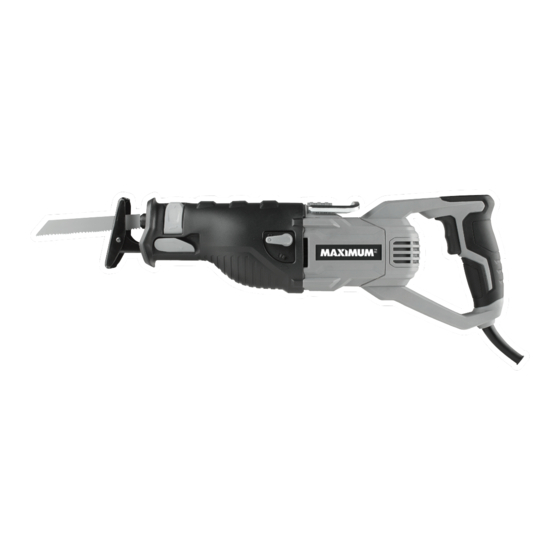

RECIPROCATING SAW
Model No. 054-8286-4
IMPORTANT:
Please read this manual carefully before
using this product, and save it for reference.
INSTRUCTION
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 054-8286-4 and is the answer not in the manual?

Questions and answers

Related Manuals for Maximum 054-8286-4

Summary of Contents for Maximum 054-8286-4

  • Page 1 RECIPROCATING SAW Model No. 054-8286-4 IMPORTANT: INSTRUCTION Please read this manual carefully before MANUAL using this product, and save it for reference.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Technical Specifications Safety Guidelines Key Parts Diagram Assembly Instructions Operating Instructions Maintenance Troubleshooting Parts List Warranty NOTE: If any parts are missing or damaged, or if you have any questions, please call our toll-free helpline at 1-888-670-6682. SAVE THESE INSTRUCTIONS •...

  • Page 4: Technical Specifications

    054-8286-4 | contact us 1-888-670-6682 TECHNICAL SPECIFICATIONS Motor 120V~, 60 Hz, 11A Variable speed 0–2800 SPM (no load) Blade stroke 1 1/8" (2.9 cm) Power cord 10' (3 m) Weight 8 lb 3 oz (3.7 kg)
  • Page 5 RULES FOR SAFE OPERATION KNOW YOUR TOOL To operate this tool, carefully read this Instruction Manual and all labels affixed to the reciprocating saw before using it. Keep this manual available for future reference. IMPORTANT This tool should only be serviced by a qualified service technician. For more information, call the toll free helpline at 1-888-670-6682.
  • Page 6 054-8286-4 | contact us 1-888-670-6682 • Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

  • Page 7: Safety Guidelines

    • Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. • Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
  • Page 8 054-8286-4 | contact us 1-888-670-6682 • Wear ear protection. Exposure to noise can cause hearing loss. • When removing the blade from the tool, avoid contact with skin and use proper protective gloves when grasping the blade or accessory. Accessories may be hot after prolonged use.

  • Page 9: Key Parts Diagram

    PACKAGE CONTENTS Reciprocating saw, general cutting blade and instruction manual. KEY PARTS DIAGRAM PART PART Blade Shoe-release lever Pivot shoe Orbital function lever Tool-less blade clamp Utility hook Blade-clamp lever Variable-speed trigger WARNING! • Remove the reciprocating saw from the package and examine it carefully.

  • Page 10: Assembly Instructions

    054-8286-4 | contact us 1-888-670-6682 ASSEMBLY INSTRUCTIONS INSTALLING SAW BLADE (fig 1) fig 1 1. Unplug the saw from the power supply. 2. Pull the blade-clamp lever as far as it will go to open the tool-less blade clamp.
  • Page 11 PIVOT SHOE Sliding the shoe in or out (fig 2) fig 2 For maximum control and longer blade life, the base assembly slides in or out to adjust the effective stroke length. 1. Disconnect the saw from the power supply.

  • Page 12: Operating Instructions

    054-8286-4 | contact us 1-888-670-6682 OPERATING INSTRUCTIONS LED WORKLIGHT The LED worklight, located next to the tool-less blade clamp of this tool, will illuminate when the saw is turned on. This provides additional light on the surface of the workpiece for operation in lower-light conditions. The LED worklight will turn off when the saw is turned off.
  • Page 13 GENERAL CUTTING 1. Disconnect the saw from the power supply. 2. Make sure that the workpiece is firmly anchored: clamp the workpiece to keep it from slipping or moving while cutting. 3. Use the appropriate type and size of blade for the workpiece material and size. 4.
  • Page 14 054-8286-4 | contact us 1-888-670-6682 PLUNGE CUTTING (fig 5) Your reciprocating saw is ideal for plunge cutting directly into surfaces that cannot be cut from an edge, such as walls or floors. Plunge cutting may be done two ways, depending on how the blade is installed.
  • Page 15 7. Check for clearance behind the workpiece so that the blade will not contact another surface. 8. Plug the reciprocating saw into an electrical outlet. 9. If the blade is inserted with the teeth facing downward, hold the tool as shown in Column A, resting the edge of the shoe on the workpiece.

  • Page 16: Maintenance

    054-8286-4 | contact us 1-888-670-6682 MAINTENANCE BEFORE EACH USE 1. Inspect the reciprocating saw, the on/off switch, the cord and the accessories for damage. 2. Check for damaged, missing, or worn parts. 3. Check for loose screws, misalignment or binding of moving parts, or any other condition that may affect the operation.

  • Page 17: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS The motor is Cooling vents are Clean and clear vents. overheating. obstructed. Do not cover with hand during operation. Blade cannot be Saw dust in the clamp Clean the clamp slot removed. slot. with a brush. Cutting is difficult.

  • Page 18: Parts List

    054-8286-4 | contact us 1-888-670-6682 EXPLODED VIEW...
  • Page 19 Part No. Description Part No. Description 2823904000 Quick clamp 5670285000 assembly 5610030000 Thread 3660260000 Torsion spring forming screw 3127789000 Gear case 3402195000 Lever cover 3660375000 Spring 3704168000 Clamp 3420830001 Bevel support 3127791000 Front handle 5620399000 Hexagon 5610044000 Tapping screw socket screw 5700193000 3550284000 Gear pin...
  • Page 20 054-8286-4 | contact us 1-888-670-6682 Part No. Description Part No. Description 4870543000 Trigger switch 3121045000 Cord guard 4891167000 PCB assembly 5610024000 Tapping screw 5610008000 Tapping screw 3120234000 Cord anchorage 2800032000 Brush holder 2490136000 Nylon string 4960306000 Carbon brush...

  • Page 21: Warranty

    (with the same model, or one of equal value or specification), at the sole discretion of the Maximum Canada authorised repair centre (“Service Provider”). We will bear the cost of any repair or replacement and any costs of labour relating thereto.
  • Page 22 This warranty applies for a period of 5 years from the date of original retail purchase, as indicated on the bill of sale. Neither the retailer, Maximum Canada, nor the manufacturer shall be liable for any other expense, loss or damage, including, without limitation, any indirect, incidental, consequential or exemplary damages arising in connection with the sale, use or inability to use this product.
  • Page 23 In addition to the 5-Year Limited Warranty, this MAXIMUM product is covered by our: 1-Year Repair Warranty...
