Watts UC-2 Installation, Operation And Maintenance Manual page 2

Thank you for your purchase of a Watts Pure Water Reverse Osmosis system. With proper installation and maintenance, this system will provide you with
high quality water for years to come. All of Watts Pure Water's water enhancement products are rigorously tested by independent laboratories for safety
and reliability. If you have any questions or concerns, please contact your local distributor or call us at 1-888-774-7405 (outside USA 623-505-1512).
Table of Contents
Tools & Materials Recommended for Normal Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Operational Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Filter Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Exploded Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Tools & Materials Recommended For Normal Installation
• Small knife
• Variable speed drill
1 1
• / " (3mm), / " (6.4mm) and
8 4
• 1 / " (12mm) and 5 / " (16mm) open-ended wrenches or adjustable wrenches
2 8
• Phillips screwdriver
Operational Parameters
1. Do not use with water that is microbiologically unsafe or of
unknown quality without adequate disinfection before or
after the system. "System certified for cyst reduction may be
used on disinfected water that may contain filterable cysts."
2. Operating Temperatures: Maximum 100˚F (40˚C)
3. Operating Pressure: Maximum 100 psig (7.43 kg/cm2)
Minimum 5 psig (0.35 kg/cm2)
4. pH: 6.0 to 8.5
5. Maximum flow rate: 0.5 GPM @ 60 psig
1.82 LPM @ 4.20 kg/cm2
2
7
/ " (11mm) drill bits
16
Minimum 40˚F (04.4˚C)
Thank You!

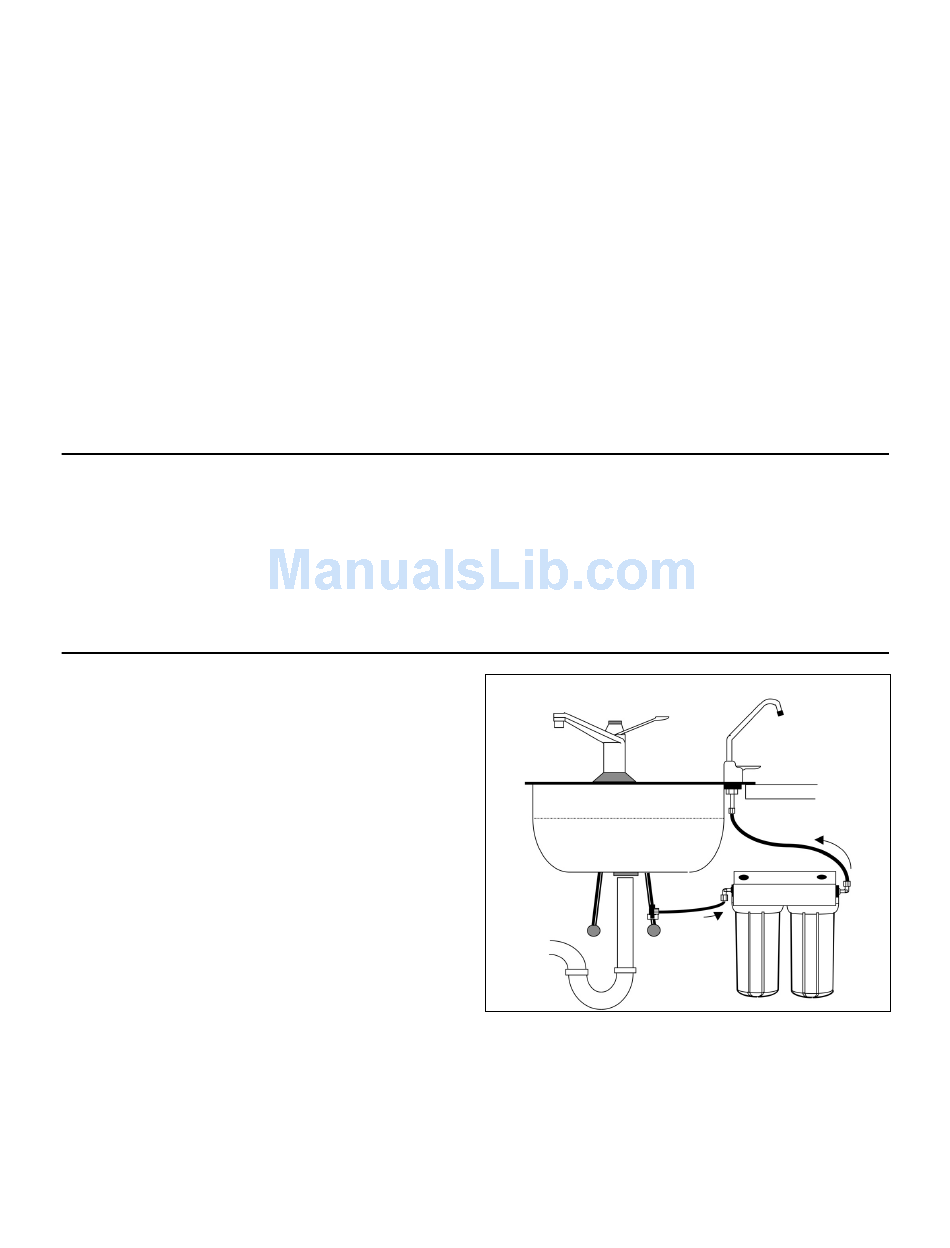

Two Stage Under Counter (UC-2)
HOT
Counter Top
Blue
Tubing
Sink
Green
Tubing
COLD
