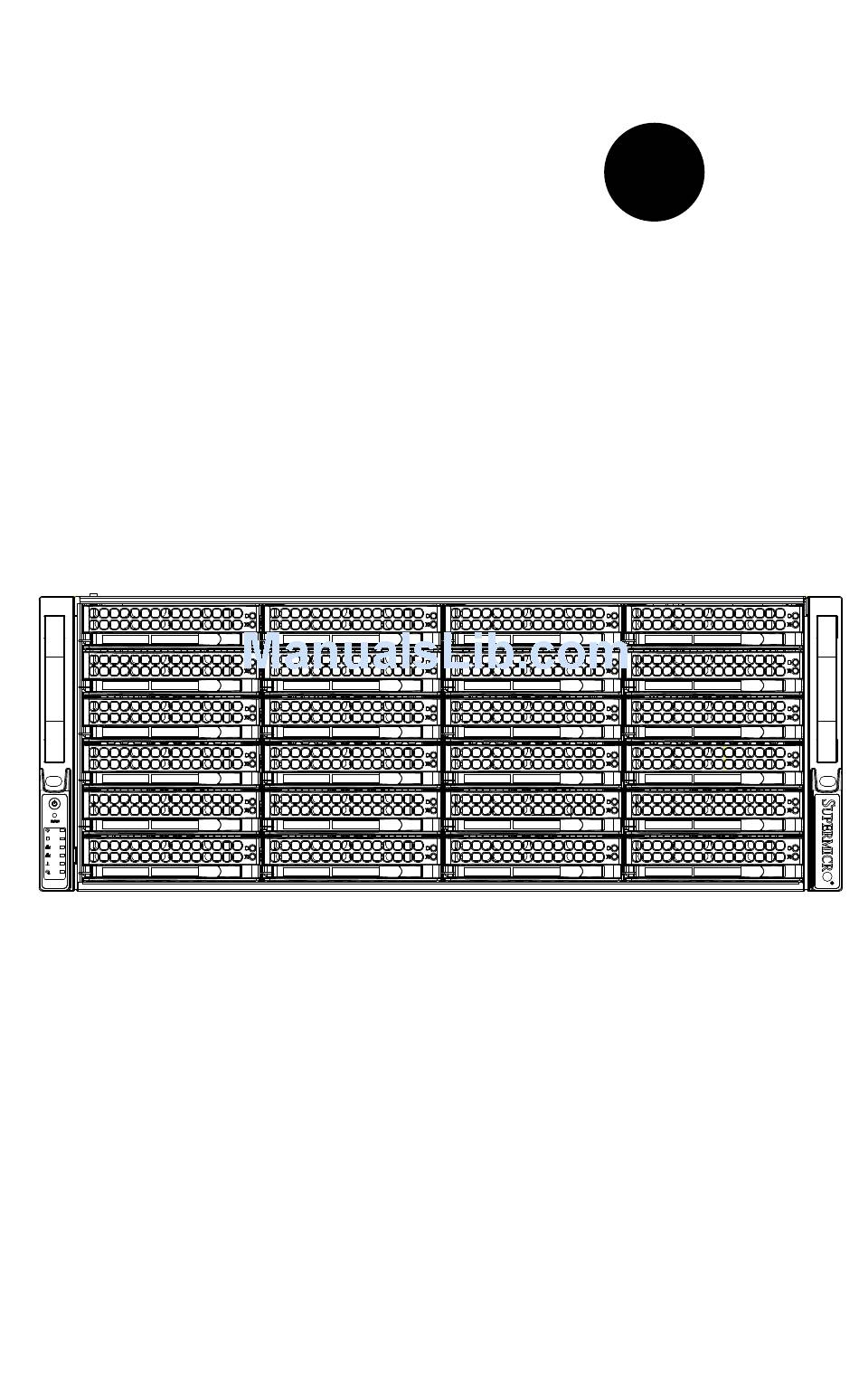

  • Page 1 UPER ® UPER TORAGE YSTEM 6047R-E1R36N USER’S MANUAL...
  • Page 2 This manual is written for professional system integrators and PC technicians. It mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms provides information for the installation and use of the 6047R-E1R36N.
  • Page 3 Preface UPER TORAGE YSTEM 6047R-E1R36N User's Manual Notes Chapter 5: Advanced Serverboard Setup Chapter 5 provides detailed information on the X9DRi-LN4F+ serverboard, includ- ing the locations and functions of connections, headers and jumpers. Refer to this chapter when adding or removing processors or main memory and when reconfig- uring the serverboard.

  • Page 4: Table Of Contents

    Table of Contents UPER TORAGE YSTEM 6047R-E1R36N User's Manual Table of Contents NIC2 ........................ 3-2 HDD ......................... 3-3 Power ......................3-3 Chapter 1 Introduction Drive Carrier LEDs ..................3-3 Overview ......................1-1 Chapter 4 Standardized Warning Statements for AC Systems Serverboard Features ..................
  • Page 5 UPER TORAGE YSTEM 6047R-E1R36N User's Manual 5-10 Onboard Indicators ..................5-29 5-11 SATA Ports ....................5-30 5-12 Installing Software ..................5-31 SuperDoctor III ....................5-32 5-13 Onboard Battery .................... 5-34 Chapter 6 Advanced Chassis Setup Static-Sensitive Devices .................. 6-1 Precautions ..................... 6-1 Unpacking .......................

  • Page 6: Chapter 1 Introduction

    Chapter 1 Introduction Overview The 6047R-E1R36N is a high-end storage system comprised of two main subsys- tems: the SC847E16-R1K28LPB 4U/rack mount chassis and the X9DRi-LN4F+ dual processor serverboard. Please refer to our website for information on operating systems that have been certified for use with the system (www.supermicro.com).

  • Page 7: Serverboard Features

    Serverboard Features Server Chassis Features The 6047R-E1R36N is built around the X9DRi-LN4F+, a dual processor serverboard The following is a general outline of the main features of the SC847E16-R1K28LPB based on the Intel C600 chipset and designed to provide maximum performance.
  • Page 8 RTL8211 W83527 Note: The SSG-6047R-E1R36N comes pre-installed with a Hardware RAID con- troller installed in PCI-E slot 1 and a JBOD expansion port installed in PCI-E slot 2. Serverboard SAS components shown in the figure above are not included on...

  • Page 9: Contacting Supermicro

    UPER TORAGE YSTEM 6047R-E1R36N User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.

  • Page 10: Chapter 2 Server Installation

    Precautions in the next section. Preparing for Setup The box the SuperServer 6047R-E1R36N was shipped in should include two sets of rail assemblies, two rail mounting brackets and the mounting screws you will need to install the system into the rack. Follow the steps in the order given to complete the installation process in a minimum amount of time.

  • Page 11: Rack Precautions

    Chapter 2: Server Installation UPER TORAGE YSTEM 6047R-E1R36N User's Manual • Rack Mounting Considerations This product is not suitable for use with visual display work place devices acccording to §2 of the the German Ordinance for Work with Visual Display Units.

  • Page 12: Rack Mounting Instructions

    Chapter 2: Server Installation UPER TORAGE YSTEM 6047R-E1R36N User's Manual Rack Mounting Instructions Rack Rails Assembly This section provides information on installing the SC846 chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly.

  • Page 13: Installing The Outer Rails Onto A Rack

    Chapter 2: Server Installation UPER TORAGE YSTEM 6047R-E1R36N User's Manual Secure to the Front of the Rack Secure to the Rear of the Rack Attach Outer Racks Together Figure 2-3. Assembling the Outer Rails Installing the Outer Rails onto a Rack Installing the Outer Rails 1.

  • Page 14: Installing The Chassis Into A Rack

    UPER TORAGE YSTEM 6047R-E1R36N User's Manual Figure 2-5. Installing the Rack Rails Installing the Chassis into a Rack Installing the Chassis into a Rack 1. Confirm that chassis includes the inner rails (A), also confirm that the outer rails (B) are installed on the rack.

  • Page 15: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the drive carri- ers to keep you constantly informed of the overall status of the system as well as the activity and health of specific components.

  • Page 16: Power Fail

    TORAGE YSTEM 6047R-E1R36N User's Manual Power Fail Indicates IDE channel activity. On the SuperServer 6047R-E1R36N, this LED Indicates a power supply module has failed. The second power supply module will indicates hard and/or DVD-ROM drive activity when flashing. take the load and keep the system running but the failed module will need to be replaced.
  • Page 17 UPER TORAGE YSTEM 6047R-E1R36N User's Manual Notes...

  • Page 18: Chapter 4 Standardized Warning Statements For Ac Systems

    Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our web site at http://www.supermicro.com/ about/policies/safety_information.cfm. Warning Definition Warning! This warning symbol means danger.
  • Page 19 Warning Statements for AC Systems UPER TORAGE YSTEM 6047R-E1R36N User's Manual Warnung ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ WICHTIGE SICHERHEITSHINWEISE ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬...

  • Page 20: Installation Instructions

    Chapter 4: Warning Statements for AC Systems UPER TORAGE YSTEM 6047R-E1R36N User's Manual Installation Instructions Circuit Breaker Warning! Warning! This product relies on the building's installation for short-circuit (overcurrent) Read the installation instructions before connecting the system to the power source.

  • Page 21: Power Disconnection Warning

    Chapter 4: Warning Statements for AC Systems UPER TORAGE YSTEM 6047R-E1R36N User's Manual ¡Advertencia! 경고! El sistema debe ser disconnected de todas las fuentes de energía y del cable 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso 의존합니다.

  • Page 22: Equipment Installation

    Chapter 4: Warning Statements for AC Systems UPER TORAGE YSTEM 6047R-E1R36N User's Manual Equipment Installation Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door Warning! geschoold en gekwalificeerd personeel. Only trained and qualified personnel should be allowed to install, replace, or service Restricted Area this equipment.

  • Page 23: Battery Handling

    Chapter 4: Warning Statements for AC Systems UPER TORAGE YSTEM 6047R-E1R36N User's Manual Warnung ‫אזור עם גישה מוגבלת‬ Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. !‫אזהרה‬ Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers.

  • Page 24: Redundant Power Supplies

    Chapter 4: Warning Statements for AC Systems UPER TORAGE YSTEM 6047R-E1R36N User's Manual Redundant Power Supplies ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! Warning! This unit might have more than one power supply connection. All connections must 이...

  • Page 25: Comply With Local And National Electrical Codes

    Chapter 4: Warning Statements for AC Systems UPER TORAGE YSTEM 6047R-E1R36N User's Manual Attention ‫מתח בפנל האחורי‬ L'équipement doit être installé conformément aux normes électriques nationales et locales. !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬...

  • Page 26: Hot Swap Fan Warning

    Chapter 4: Warning Statements for AC Systems UPER TORAGE YSTEM 6047R-E1R36N User's Manual ¡Advertencia! 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 Al deshacerse por completo de este producto debe seguir todas las leyes y 物品太靠近風扇。 reglamentos nacionales. Warnung Attention Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis La mise au rebut ou le recyclage de ce produit sont généralement soumis à...

  • Page 27: Power Cable And Ac Adapter

    UL ou CSA câbles certifiés qui ont UL ou CSA indiqué sur le code power cables and AC adaptors. Using any other cables and adaptors could cause pour tous les autres appareils électriques que les produits désignés par Supermicro a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the seulement.
  • Page 28 UPER TORAGE YSTEM 6047R-E1R36N User's Manual Notes 4-20...

  • Page 29: Chapter 5 Advanced Serverboard Setup

    Chapter 5: Advanced Serverboard Setup Chapter 5 Advanced Serverboard Setup This chapter covers the steps required to install the X9DRi-LN4F+ serverboard into the chassis, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are also described. A layout and quick refer- ence chart are included in this chapter for your reference.

  • Page 30: Connecting Cables

    UPER TORAGE YSTEM 6047R-E1R36N User's Manual Chapter 5: Advanced Serverboard Setup Connecting Cables Figure 5-1. Control Panel Header Pins Several cables need to be connected to the serverboard. These include the data Ground cables for the peripherals and control panel and the power cables.

  • Page 31: Installing The Processor And Heatsink

    (Do not drop the • CPU on the socket. Do not move Refer to the Supermicro web site for updates on CPU support. the CPU horizontally or vertically and do not rub the CPU against Installing an LGA2011 Processor...

  • Page 32: Installing A Passive Cpu Heatsink

    UPER TORAGE YSTEM 6047R-E1R36N User's Manual Chapter 5: Advanced Serverboard Setup Warning: You can only install the CPU to the socket in one direction. Make sure that Installing a Passive CPU Heatsink the CPU is properly inserted into the socket before closing the load plate. If it doesn't 1.

  • Page 33: Removing The Heatsink

    UPER TORAGE YSTEM 6047R-E1R36N User's Manual Chapter 5: Advanced Serverboard Setup Installing Memory Removing the Heatsink Warning: We do not recommend that the CPU or the heatsink be removed. However, if you do need to uninstall the heatsink, please follow the instructions below to uninstall Warning: Exercise extreme care when installing or removing DIMM modules to prevent the heatsink to prevent damage done to the CPU or the CPU socket.
  • Page 34 CPU1/CPU Note: For detailed information on memory support and updates, please refer to the SMC Recommended 13 DIMMs~24 P1-DIMMA1/P1-DIMMB1, P2-DIMME1/P2-DIMMF1, P1-DIMMC1/P1-DIMMD1, P2-DIMMG1/ Memory List posted on our website at http://www.supermicro.com/support/resources/mem.cfm. DIMMs P2-DIMMH1, P1-DIMMA2/P1-DIMMB2, P2-DIMME2/P2-DIMMF2, P1-DIMMC2/P1-DIMMD2, P2-DIMMG2/P2-DIMMH2, P1-DIMMA3/P1-DIMMB3, P2-DIMME3/ Populating RDIMM (ECC) Memory Modules...
  • Page 35 Capacity Channel (DPC) Note: For detailed information on memory support and updates, please refer to the SMC Recommended DIMM Per DIMM Memory List posted on our website at http://www.supermicro.com/support/resources/mem.cfm. 2 Slots Per Channel 3 Slots Per Channel & Data (See the Note...

  • Page 36: Adding Pci Add-On Cards

    YSTEM 6047R-E1R36N User's Manual Chapter 5: Advanced Serverboard Setup Adding PCI Add-On Cards Serverboard Details The 6047R-E1R36N can accommodate up to three PCI-E x16 and one PCI-E x8 Figure 5-4. X9DRi-LN4F+ Layout low-profile expansion (add-on) cards. Installing an Add-on Card...

  • Page 37: X9Dri-Ln4F+ Quick Reference

    UPER TORAGE YSTEM 6047R-E1R36N User's Manual Chapter 5: Advanced Serverboard Setup X9DRi-LN4F+ Quick Reference (IPMI) LAN IPMI_Dedicated LAN Onboard Buzzer (Internal Speaker) Jumper Description Default Setting USB 0/1 Back Panel USB 0/1 JBT1 Clear CMOS See Section 5-9 USB 2/3...

  • Page 38: Connector Definitions

    UPER TORAGE YSTEM 6047R-E1R36N User's Manual Chapter 5: Advanced Serverboard Setup Connector Definitions Power Fail LED PWR Fail LED The Power Fail LED connection is Pin Definitions (JF1) located on pins 5 and 6 of JF1. Re- Power Connectors Pin#...
  • Page 39 UPER TORAGE YSTEM 6047R-E1R36N User's Manual Chapter 5: Advanced Serverboard Setup Power On LED Chassis Intrusion Power LED Chassis Intrusion Pin Definitions (JF1) Pin Definitions The Power On LED connector is lo- The Chassis Intrusion header is des- Pin# Definition...
  • Page 40 UPER TORAGE YSTEM 6047R-E1R36N User's Manual Chapter 5: Advanced Serverboard Setup IPMB IPMB Header Serial Port Pin Definitions Serial Ports Pin Definitions (COM1/COM2) A System Management Bus header Pin# Definition Pin # Definition Pin # Definition Two serial ports are included on the for IPMI 2.0 is located at IPMB.

  • Page 41: Jumper Settings

    Note: UID can also be triggered via IPMI. For more information on IPMI, please refer to the IPMI User's Guide posted on our Website @http://www.supermicro.com. CMOS Clear JBT1 is used to clear CMOS (which will also clear any passwords). Instead of pins,...

  • Page 42: System 6047R-E1R36N User's Manual

    UPER TORAGE YSTEM 6047R-E1R36N User's Manual Chapter 5: Advanced Serverboard Setup GLAN Enable/Disable GLAN Enable Manufacturer's Mode Jumper Settings JPL1 enables or disables the GLAN Jumper Setting Definition por ts on the ser verboard. See Jumper JPME2 allows the user to...

  • Page 43: 5-10 Onboard Indicators

    X8DT3/i-F/-LN4F UPER TORAGE YSTEM 6047R-E1R36N User's Manual Chapter 5: Advanced Serverboard Setup X8DT3-LN4/LN4F 5-10 Onboard Indicators Watch Dog Enable/Disable Jumper JWD controls the Watch LAN LEDs Dog function. Watch Dog is a sys- The Ethernet ports (located beside the tem monitor that can reboot the JLAN1/2 LED VGA port) have two LEDs.

  • Page 44: 5-11 Sata Ports

    YSTEM 6047R-E1R36N User's Manual Chapter 5: Advanced Serverboard Setup 5-11 SATA Ports 5-12 Installing Software The Supermicro FTP site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. Serial ATA Ports...

  • Page 45: Superdoctor Iii

    UPER TORAGE YSTEM 6047R-E1R36N User's Manual Chapter 5: Advanced Serverboard Setup SuperDoctor III The SuperDoctor® III program is a web-based management tool that supports remote management capability. It includes Remote and Local Management tools. Figure 5-7. SuperDoctor III Interface Display Screen (Remote Control) The local management is called SD III Client.

  • Page 46: 5-13 Onboard Battery

    UPER TORAGE YSTEM 6047R-E1R36N User's Manual 5-13 Onboard Battery Please handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

  • Page 47: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform main- tenance on the SC847E16-R1K28LPB chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 48: Control Panel

    Chapter 6: Advanced Chassis Setup UPER TORAGE YSTEM 6047R-E1R36N User's Manual Removing the Chassis Cover Figure 6-1. Front and Rear Chassis Views Control Panel Hard Drives (24) Hardware RAID Add-on Card Power Supplies (2) and JBOD Expansion Ports I/O Ports Figure 6-2.

  • Page 49: System Fans

    Seven 8-cm hot-swap chassis fans provide redundant cooling for the SuperServer 6047R-E1R36N. It is very important that the chassis top cover is properly installed and making a good seal in order for the cooling air to circulate properly through the chassis and cool the components.

  • Page 50: Sata Drive Installation

    5. Replace the drive tray into the chassis. Make sure to close the drive tray handle to lock the drive tray into place (see Figure 6-5).. Warning! Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro Web Hard Drive Backplane site at http://www.supermicro.com/products/nfo/files/storage/SAS-1-CompList-110909.

  • Page 51: Removing The Air Shroud

    Chapter 6: Advanced Chassis Setup UPER TORAGE YSTEM 6047R-E1R36N User's Manual Installing Optional Fixed Hard Drives Removing the Air Shroud Optional brackets for the SC847 chassis may be used to install either one 3.5" Under most circumstances you will not need to remove the air shroud to perform fixed hard drive or two 2.5"...

  • Page 52: Power Supply

    DC Power The AC power supplies may be removed and replaced with a DC power supply. The SuperServer 6047R-E1R36N has an 1280 watt redundant power supply con- Replacing the AC Power Supply with a DC Power Supply sisting of two power modules. Each power supply module has an auto-switching capability, which enables it to automatically sense and operate at a 100V - 240V 1.
  • Page 53 UPER TORAGE YSTEM 6047R-E1R36N User's Manual Figure 6-8. JBOD Expansion Port 2x JBOD OUT (downstream ports) JBOD IN (upstream port) JBOD OUT (downstream port) JBOD IN (upstream port) JBOD OUT (downstream port) 6-12...

  • Page 54: Chapter 7 Bios

    The configuration data that determines the system parameters may be changed by entering the AMI BIOS Setup utility. This Setup utility can be accessed by pressing <F2> at the appropriate time during system boot. Note: For AMI UEFI BIOS Recovery, please refer to the UEFI BIOS Recovery User Guide posted @http://www.supermicro.com/support/manuals/.

  • Page 55: Main Setup

    Chapter 7: BIOS UPER TORAGE YSTEM 6047R-E1R36N User's Manual Starting the Setup Utility Supermicro X9DR6-LN4+ Normally, the only visible Power-On Self-Test (POST) routine is the memory test. SMC Version As the memory is being tested, press the <F2> key to enter the main menu of This item displays the SMC version of the BIOS ROM used in this system.

  • Page 56: Cpu Configuration

    Chapter 7: BIOS UPER TORAGE YSTEM 6047R-E1R36N User's Manual AddOn ROM Display Mode CPU Configuration Use this item to set the display mode for the Option ROM. Select Keep Current to This submenu displays the information of the CPU as detected by the BIOS. It also use the current AddOn ROM Display setting.
  • Page 57 Chapter 7: BIOS UPER TORAGE YSTEM 6047R-E1R36N User's Manual Clock Spread Spectrum based on the specifications of the application running in the system at the time. The options are Disabled and Enabled. Select Enable to enable Clock Spectrum support, which will allow the BIOS to moni- tor and attempt to reduce the level of Electromagnetic Interference caused by the Intel®...
  • Page 58 Chapter 7: BIOS UPER TORAGE YSTEM 6047R-E1R36N User's Manual Chipset Configuration CPU C3 Report Select Enabled to allow the BIOS to report the CPU C3 State (ACPI C2) to the operating system. During the CPU C3 State, the CPU clock generator is turned North Bridge Configuration...
  • Page 59 Chapter 7: BIOS UPER TORAGE YSTEM 6047R-E1R36N User's Manual Port 1B Link Speed Up Tx Preset Select GEN1 to enable PCI-Exp Generation 1 support for Port 1B. Select GEN2 This feature allows the user to select the preset setting for a upstream component to enable PCI-Exp Generation 2 support for Port 1B.
  • Page 60 Chapter 7: BIOS UPER TORAGE YSTEM 6047R-E1R36N User's Manual Isoc Memory Mode Select Enabled to enable Ischronous support to meet QoS (Quality of Service) When Independent is selected, all DIMMs are available to the operating system. requirements. This feature is especially important for virtualization technology.
  • Page 61 Chapter 7: BIOS UPER TORAGE YSTEM 6047R-E1R36N User's Manual DRAM RAPL Legacy USB Support (Available when USB Functions is not Disabled) This item allows the user to select the average power limit setting when a DRAM Select Enabled to support legacy USB devices. Select Auto to disable legacy sup- module is in operation.
  • Page 62 Chapter 7: BIOS UPER TORAGE YSTEM 6047R-E1R36N User's Manual Aggressive Link Power Management Thermal Configuration Select Enabled to enable Aggressive Link Power Management support Thermal Management for Cougar Point B0 stepping and beyond. The options are Enabled and Select Enabled to initialize the PCH Thermal subsystem device located at D31:F6.
  • Page 63 Chapter 7: BIOS UPER TORAGE YSTEM 6047R-E1R36N User's Manual PERR# Generation Option ROM is Enabled, and the default settings for LAN2 Option ROM~LAN4 Option ROM are Disabled. Select Enabled to allow a PCI device to generate a PERR number for a PCI Bus Signal Error Event.
  • Page 64 Chapter 7: BIOS UPER TORAGE YSTEM 6047R-E1R36N User's Manual VT-UTF8 Combo Key Support Console Redirection Settings Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100 This feature allows the user to specify how the host computer will exchange terminals. The options are Enabled and Disabled.

  • Page 65: Event Logs

    Chapter 7: BIOS UPER TORAGE YSTEM 6047R-E1R36N User's Manual TPM State TPM Support: Trusted Platform support Select Enabled to enable TPM security settings to improve data integrity and TPM State: Trusted Platform state network security. The options are Disabled and Enabled.
  • Page 66 Chapter 7: BIOS UPER TORAGE YSTEM 6047R-E1R36N User's Manual Change SMBIOS Event Log Settings METW (Multiple Event Count Time Window)  This item allows the user to decide how long (in minutes) should the multiple event This feature allows the user to configure SMBIOS Event settings.

  • Page 67: Ipmi

    Chapter 7: BIOS UPER TORAGE YSTEM 6047R-E1R36N User's Manual IPMI When SEL is Full This feature allows the user to decide what the BIOS should do when the system Use this feature to configure Intelligent Platform Management Interface (IPMI) event log is full. Select Erase Immediately to erase all events in the log when the settings.

  • Page 68: Boot

    Chapter 7: BIOS UPER TORAGE YSTEM 6047R-E1R36N User's Manual Boot Security This submenu allows the user to configure the following boot settings for the This menu allows the user to configure the following security settings for the system. system. Administrator Password...

  • Page 69: Save & Exit

    Chapter 7: BIOS UPER TORAGE YSTEM 6047R-E1R36N User's Manual Save & Exit Discard Changes Select this feature and press <Enter> to discard all the changes and return to the This submenu allows the user to configure the Save and Exit settings for the BIOS setup.
  • Page 70 UPER TORAGE YSTEM 6047R-E1R36N User's Manual Notes 7-32...

  • Page 71: Appendix A Bios Error Beep Codes

    Appendix A: BIOS Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed at each system boot, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue to boot.
  • Page 72 UPER TORAGE YSTEM 6047R-E1R36N User's Manual Notes...

  • Page 73: Appendix B System Specifications

    Four PCI-E 3.0 x16 slots, one PCI-E 3.0 x8 slot and one PCI-E 3.0 x4 (in a x8) slot on the serverboard - the 6047R-E1R36N can accommodate up to three PCI-E x16 and one PCI-E x8 low-profile expansion (add-on) cards. Note that some PCI slots may not be enabled if only a single processor is installed (see p.
  • Page 74 Appendix B: System Specifications UPER TORAGE YSTEM 6047R-E1R36N User's Manual Serverboard Regulatory Compliance X9DRi-LN4F+ (Extended ATX form factor) Electromagnetic Emissions: FCC Class A, EN 55022 Class A, EN 61000-3-2/-3-3, CISPR 22 Class A Dimensions: 13.68 x 13 in (347 x 330 mm)
  • Page 75 YSTEM 6047R-E1R36N User's Manual (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
