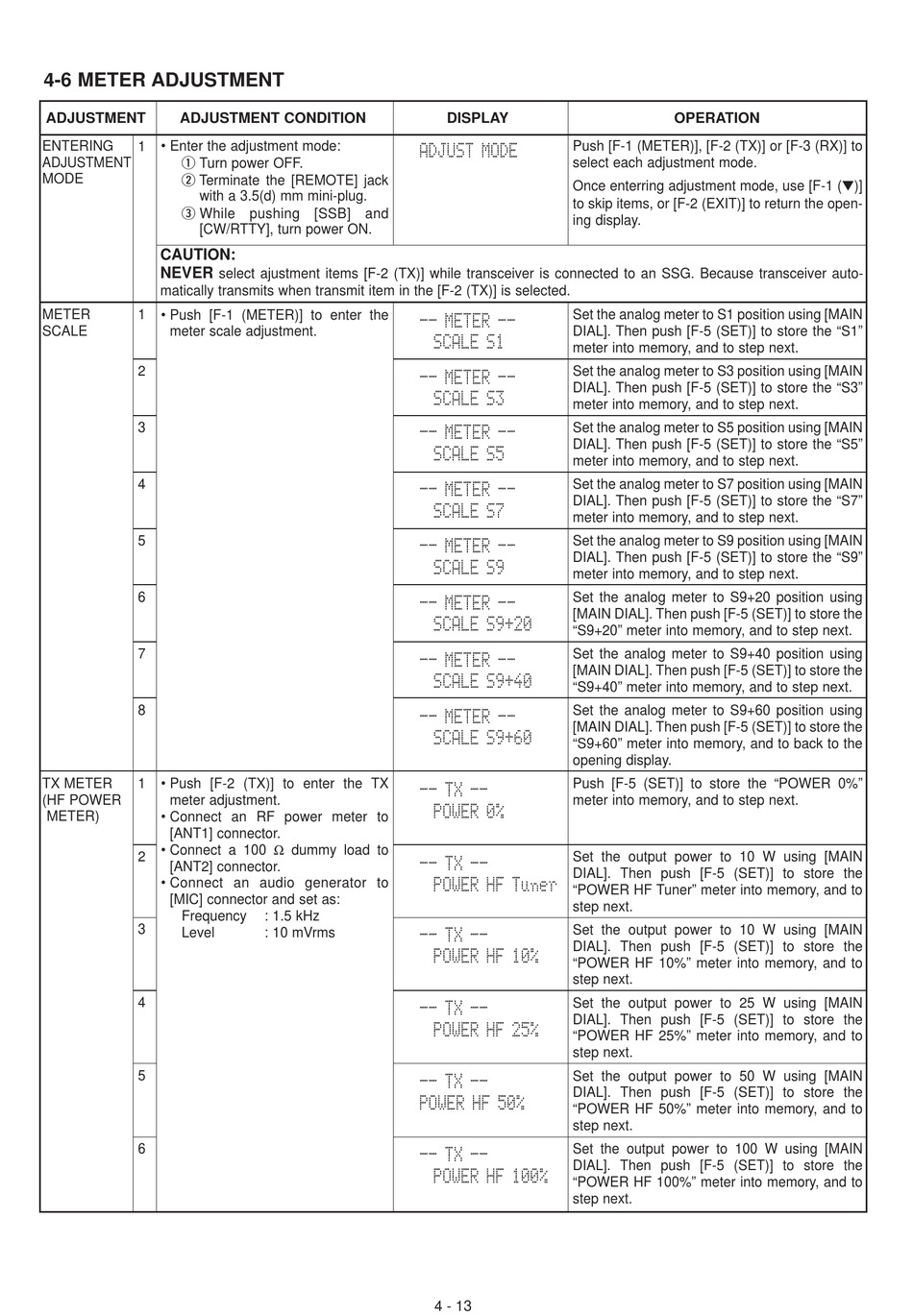

4-6 METER ADJUSTMENT

ADJUSTMENT ADJUSTMENT CONDITION
ENTERING • Enter the adjustment mode:
1
ADJUSTMENT q Turn power OFF.
w Terminate the [REMOTE] jack
MODE
with a 3.5(d) mm mini-plug.
e While pushing [SSB] and
[CW/RTTY], turn power ON.
CAUTION:
NEVER
matically transmits when transmit item in the [F-2 (TX)] is selected.
METER 1 • Push [F-1 (METER)] to enter the
SCALE meter scale adjustment.
2
3
4
5
6
7
8
TX METER 1 • Push [F-2 (TX)] to enter the TX
(HF POWER meter adjustment.
METER)
• Connect an RF power meter to
[ANT1] connector.
• Connect a 100 Ω dummy load to
2
[ANT2] connector.
• Connect an audio generator to
[MIC] connector and set as:
Frequency
3
Level
4
5
6
select ajustment items [F-2 (TX)] while transceiver is connected to an SSG. Because transceiver auto-
: 1.5 kHz
: 10 mVrms
DISPLAY
ADJUST MODE Push [F-1 (METER)], [F-2 (TX)] or [F-3 (RX)] to
select each adjustment mode.
Once enterring adjustment mode, use [F-1 ( )]
to skip items, or [F-2 (EXIT)] to return the open-
ing display.
Set the analog meter to S1 position using [MAIN
-- METER --
DIAL]. Then push [F-5 (SET)] to store the "S1"
SCALE S1
meter into memory, and to step next.
Set the analog meter to S3 position using [MAIN
-- METER --
DIAL]. Then push [F-5 (SET)] to store the "S3"
SCALE S3
meter into memory, and to step next.
-- METER -- Set the analog meter to S5 position using [MAIN
DIAL]. Then push [F-5 (SET)] to store the "S5"
SCALE S5
meter into memory, and to step next.
-- METER -- Set the analog meter to S7 position using [MAIN
DIAL]. Then push [F-5 (SET)] to store the "S7"
SCALE S7
meter into memory, and to step next.
-- METER -- Set the analog meter to S9 position using [MAIN
DIAL]. Then push [F-5 (SET)] to store the "S9"
SCALE S9
meter into memory, and to step next.
-- METER -- Set the analog meter to S9+20 position using
[MAIN DIAL]. Then push [F-5 (SET)] to store the
SCALE S9+20
"S9+20" meter into memory, and to step next.
Set the analog meter to S9+40 position using
-- METER --
[MAIN DIAL]. Then push [F-5 (SET)] to store the
SCALE S9+40
"S9+40" meter into memory, and to step next.
Set the analog meter to S9+60 position using
-- METER --
[MAIN DIAL]. Then push [F-5 (SET)] to store the
SCALE S9+60
"S9+60" meter into memory, and to back to the
opening display.
Push [F-5 (SET)] to store the "POWER 0%"
-- TX --
meter into memory, and to step next.
POWER 0%
Set the output power to 10 W using [MAIN
-- TX --
DIAL]. Then push [F-5 (SET)] to store the
POWER HF Tuner
"POWER HF Tuner" meter into memory, and to
step next.
-- TX -- Set the output power to 10 W using [MAIN
DIAL]. Then push [F-5 (SET)] to store the
POWER HF 10%
"POWER HF 10%" meter into memory, and to
step next.
Set the output power to 25 W using [MAIN
-- TX --
DIAL]. Then push [F-5 (SET)] to store the
POWER HF 25%
"POWER HF 25%" meter into memory, and to
step next.
-- TX -- Set the output power to 50 W using [MAIN
DIAL]. Then push [F-5 (SET)] to store the
POWER HF 50%
"POWER HF 50%" meter into memory, and to
step next.
-- TX -- Set the output power to 100 W using [MAIN
DIAL]. Then push [F-5 (SET)] to store the
POWER HF 100%
"POWER HF 100%" meter into memory, and to
step next.
