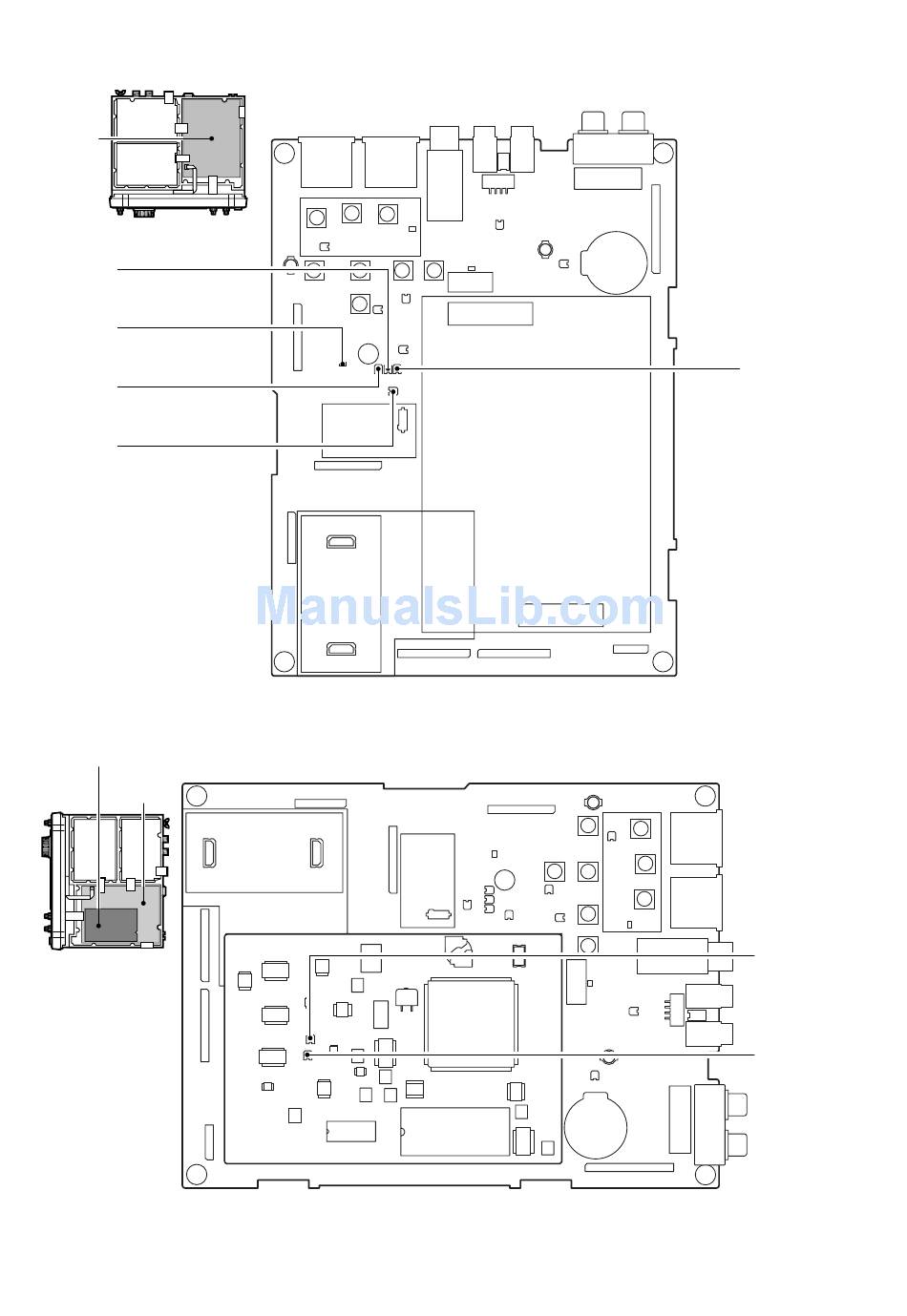

• MAIN-A unit
MAIN-A
unit
Bottom view of the transceiver
R509
50 MHz band output power
adjustment
CP501
Ic APC check point
R507
HF bands output power
adjustment
R545
Ic APC adjustment
• DSP-A board
DSP-A board
MAIN-A
unit
Bottom view
of the transceiver
4 - 7
R510
AM carrier
adjustment
R2227
FM deviation
adjustment
R2229
AM modulation
adjustment
