Control Panel Interface

The Control Panel Interface is located under the lid of the
enclosure. Before attempting to lift the lid of the
enclosure, verify that both left and right side locks are
unlocked. To remove the front cover, lift the cover straight
up to disengage the side hooks, then tilt and lift it away
from the unit.
When closing the unit, verify that both left and right side
locks are securely locked.
NOTE: All appropriate panels must be in place during
any operation of the generator. This includes operation
by a servicing technician
troubleshooting procedures.

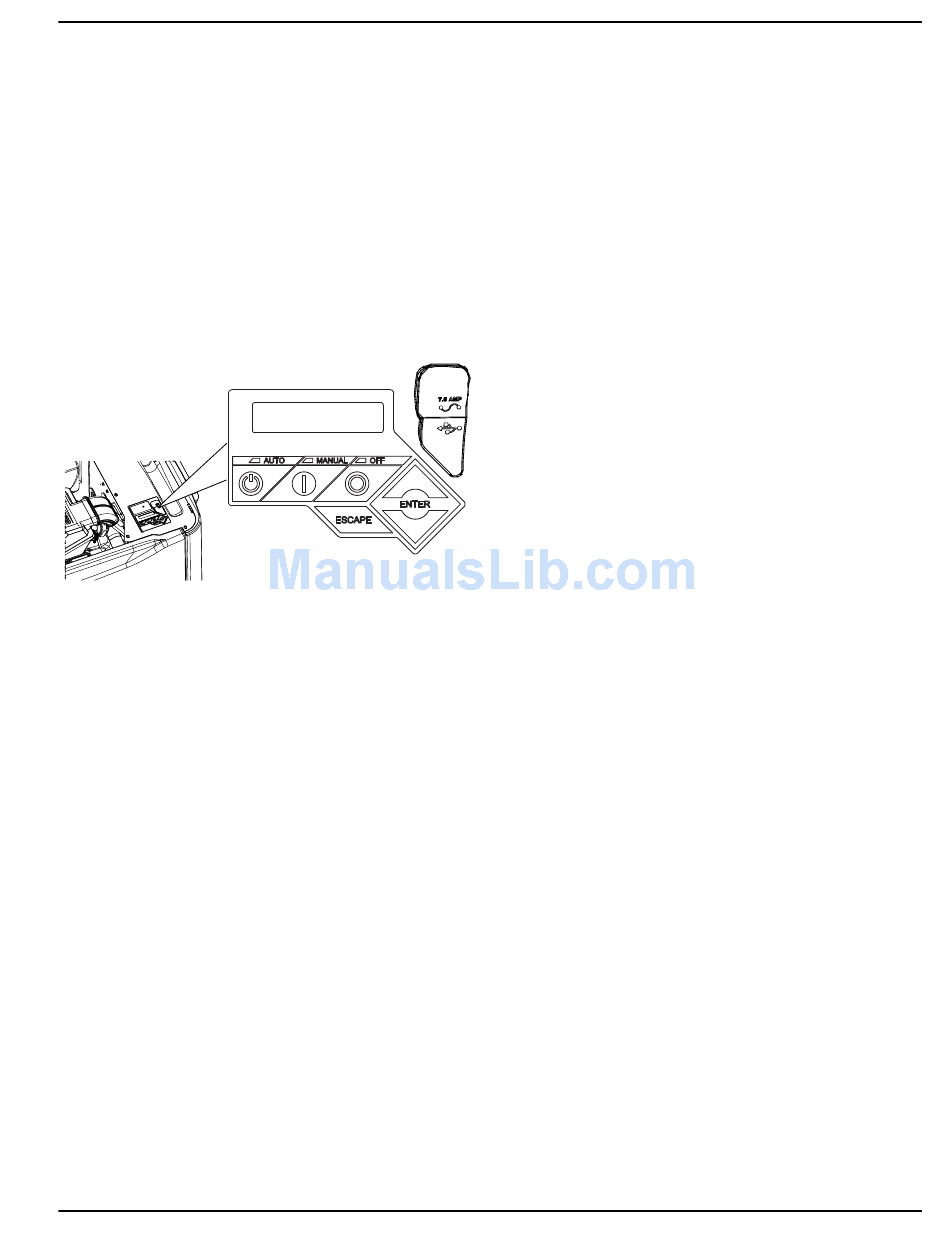

Figure 3-4. Generator Control Panel
With the control pad set to AUTO, the engine may crank
and start at any time without warning. To prevent possible
injury that might occur during sudden starts, always set
the control pad to OFF and remove the 7.5 amp fuse
before working on or around the generator or the
electrical loads that are to be powered by the generator.
For added security, place a DO NOT OPERATE tag or
placard at the control pad and the electrical loads that are
to be powered by the generator.
Never run the generator with any access panel removed.
Owner's Manual for 60 Hz EcoGen™ Generator
Activation
To receive an activation code, you must have the unit serial
number and go to: www.generac.com, "Service & Support"
Tab and then "Activate Your Home Standby" under the
"Generac Owners" list. You can also receive an activation
code by calling 1–888–9ACTIVATE (1–888–922–8482).
Activating the generator is a simple, one–time process
that is guided by the controller screen prompts. Once the
product is activated, the controller screen will not prompt
you to activate again, even if you disconnect the
generator battery, fuse and battery charge circuit (T1 60
Hz / T1 & T2 50 Hz).
while conducting
After obtaining your activation code, please complete the
following steps at the generator's control panel:
NOTE: If the unit has already been powered up, it will be
necessary to disconnect the generator battery, fuse and
battery charge circuit (T1 60 Hz / T1 & T2 50Hz).
001428
NOTE: If you push ESC to run in MANUAL, the unit will
not function in AUTO. To enter the activation code at a
later time, it will be necessary to disconnect the generator
battery, fuse and battery charge circuit (T1).
If the unit is not activated, the install wizard will only allow
the programming to operate the generator. These
settings are: Current Date/Time and Exercise Day/Time
and annunciate "NOT ACTIVATED".
It the unit is activated, the install wizard will allow further
programming parameters and Auto operation. The
maintenance intervals will be initialized when the
exercise time is entered. The exercise settings can be
changed at any time via the EDIT menu. If the 12 volt
battery is disconnected or the fuse removed, the
installation wizard will operate upon power restoration.
The only difference is the display will only prompt the
customer for the current Time and Date.
1. Upon first power up of the generator, the display
interface will begin an installation wizard.
2. The installation wizard will prompt the user to set
the fuel type and after choosing fuel type and
"Enter", the display will then annunciate "Activate
me (ENT) or ESC" to run in MANUAL.
3. Press Enter and use the up/down arrows and the
enter keys to put the activation code in.
