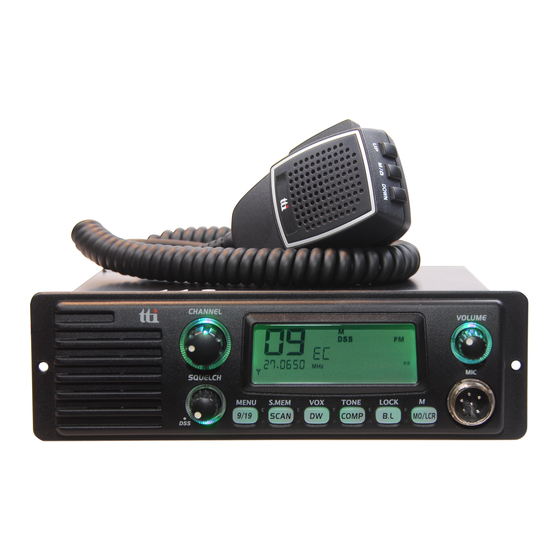

TTI TCB-1100 Owner's Manual

Am/fm 40 channel and tone squelch citizens band transceiver
Hide thumbs Also See for TCB-1100:

Advertisement

Quick Links

Download this manual See also: Service Manual

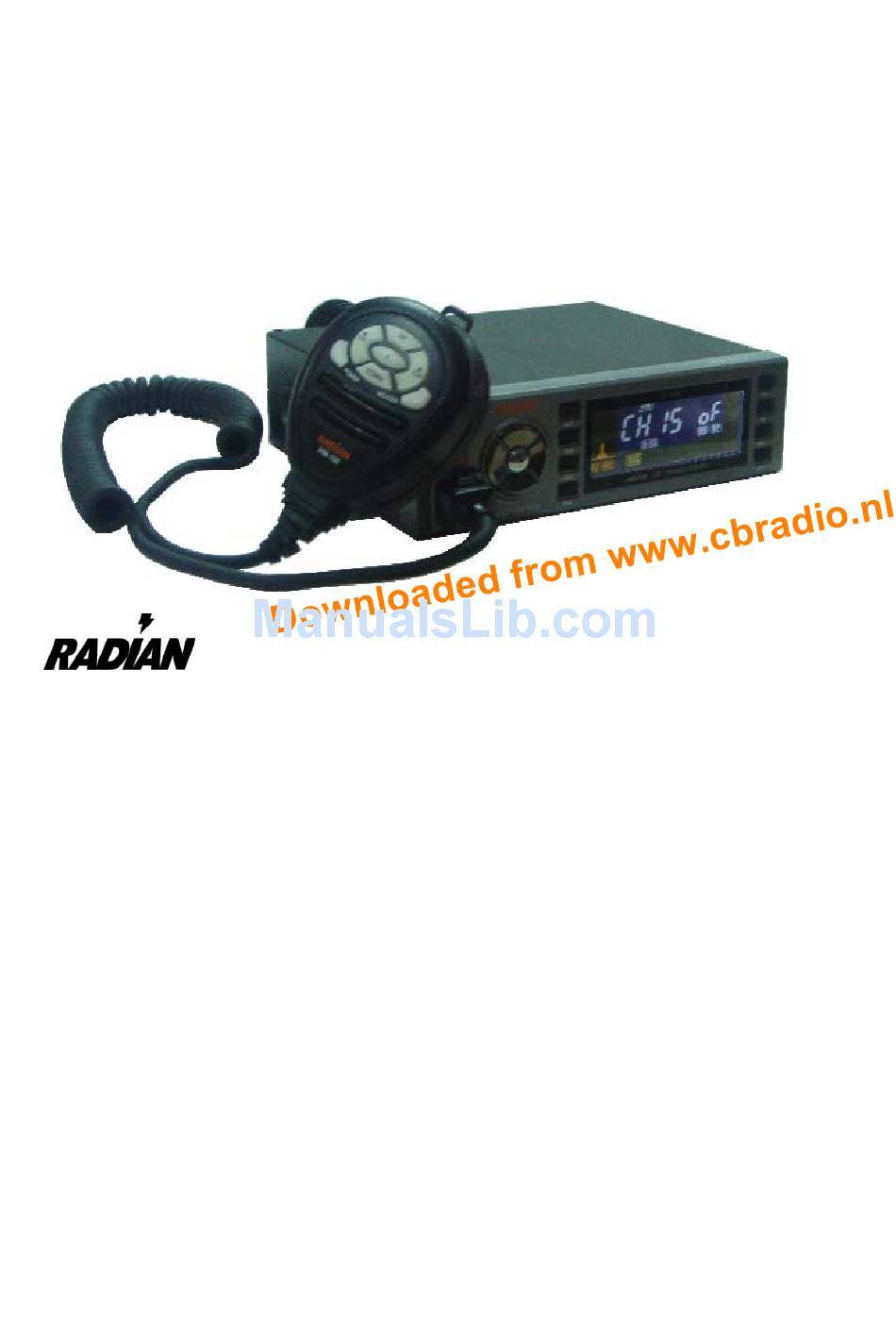

AM/FM 40 CHANNEL & TONE SQUELCH
CITIZENS BAND TRANSCEIVER
Characteristics of C-Five
1. Improved
audio
decompressing circuit.( general radio : S/N 45dB C-Five : S/N 70 dB)
2. Minimizing external RF interference by using NB circuit.
3. Convenient change of digital touch SQ and Auto SQ.
4. Visual enjoyment of identifying transmitting sound by function of voice
dancing.
Owner's Manual
sensitivity
by
adopting
audio
compressing
and

Advertisement

loading

Related Manuals for TTI TCB-1100

Summary of Contents for TTI TCB-1100

  • Page 1 Owner’s Manual AM/FM 40 CHANNEL & TONE SQUELCH CITIZENS BAND TRANSCEIVER Characteristics of C-Five 1. Improved audio sensitivity adopting audio compressing decompressing circuit.( general radio : S/N 45dB C-Five : S/N 70 dB) 2. Minimizing external RF interference by using NB circuit. 3.
  • Page 2 5. Identifying transmitting by red LED lighting and receiving by green LED lighting. 6. Adopting wide negative color LCD. 7. Long life of display by use of bright LED. 8. Adding filter circuit on power line to remove engine noise interference. 9.
  • Page 3 Check the requirements for your vehicle before you begin installation. Generally, you have a negative-ground system if the minus(-) battery terminal is connected to the motor block. Contact your dealer in the event you are unable to determine your vehicle’s polarity system. Where to locate your CB radio.
  • Page 4 loss of control of the vehicle. Power wiring (negative ground only) Step 1 : If you have not determined whether your vehicle has a negative or positive ground, do so now. Then disconnect the negative lead from the battery to prevent short circuits theat can occur during wiring. Do not connect this radio to positive ground electrical systems.
  • Page 5 performance. Installations using the cigarette lighter socket for power require an extra ground wire from the radio chassis to the vehicle if the radio is not fastened to a grounded part of the vehicle. Mechanical mounting. Step 1 : Heeding the caution, use the mounting bracket as a template for marking the location of screw holes under the dash.
  • Page 6 Step 4 : Tighten the retention knobs External speaker Fully insert the plug of external speaker into the jack (EX. SP) on the back of the radio as below. Antenna :...
  • Page 7 How to select, position, install and tune the right one for you. Basically, you may choose from two types of mobile CB antennas-full-length whip and loaded whip- and a variety of mounts (depending on where you locate your antenna). The dealer who sold you your CB radio can advise which type is best for you. Where you locate your antenna does make a difference.

  • Page 8: Factors Affecting Cb Range

    rear bumper. Where you decide to locate your antenna will determine the type of antenna you install. Again consult your CB radio dealer for advice and guidance. Antenna installation. Follow the manufacturer’s installation instructions carefully. Warning : Never operate your CB radio without attaching an antenna or with a broken antenna cable.
  • Page 9 signals. Terrain : Hills, valleys and building naturally interrupt and shorten CB signals. In short, anything that is between you and the person you want to talk to can shorten your CB range. You can expect to maintain maximum transmitting/receiving performance in flat, open country.

  • Page 10: Front Panel Controls

    C-Five operating controls0 Front panel controls : 1, POWER : Press the button and it is lock in, your radio power is on. Press it again and the button is lock out. your radio is off. 2. BUSY/TX Green LED indicator showing the unit is receiving and Red LED indicator showing the unit is transmitting.
  • Page 11 4. Mike jack Insert the plug from the mike into the mike jack (8 pin modular jack) until it locked 5.6.Volume UP/DOWN button Adjust sound volume level (0-20) by depressing upper button and lower button of FUNC. Volume level will be displayed as numeric and graphic when you adjust volume and fixed after 2 seconds or at the time of pressing PTT key of mike.
  • Page 12 Press and release FUNC button two times and ‘T-SQ’ will blink. Select the channel by depressing upper button and lower button of FUNC and the channel will be memorized after 2 seconds or at the time of pressing PTT key of mike. Press and release FUNC button three times and ‘RB’...
  • Page 13 T-SQ will be inoperative in AM mode. 12. A-SQ (automatic noise squelch) Automatic squelch the noise when no signal in RX and ‘A-SQ’ will be displayed. 13. SCAN Press and release the SCAN button to activate SCAN mode and SCAN will be displayed.
  • Page 14 and ‘DW’ will be displayed. And change the channel (changed channel : sub channel). The radio check the sub channel and stay for 0.5 second every 5 seconds. Press PTT at one of both channels, PTTed channel become main channel. If no receive signal for 5 seconds after PTT, DW will start again.
  • Page 15 2. Power 12-24VDC 3. EX, SP Connect external speaker plug (3,5 mm Dia). 1.FUNC 2. CH DOWN 3. CH UP 4. VR UP 5. VR DOWN : Same as above on front panel of the unit.
  • Page 16 6. EL-POWER (electronic switch) Press and release it and the radio will be on/off only when the POWER lock in the main unit. 7. PTT Press PTT to transmit and release to receive. 8. MC/OSQ Press and release continuously and the channel change to M1 to M2 to M3 to last channel used.
  • Page 17 CHANNEL FREQ,Hz CHANNEL FREQ,Hz REMARK 67.0 156.7 69.3 162.2 74.4 167.9 77.0 173.8 79.7 179.9 82.5 186.2 85.4 192.8 88.5 203.5 91.5 210.7 94.8 218.1 225.7 97.4 100.0 233.6 103.5 241.8 107.2 250.3 110.9 62.5 114.8 64.7 118.8 71.9 123.0 159.8 127.3 183.5...
  • Page 18 ELECTRICAL SPECFICATION 1. General features.
  • Page 19 S Y S T E M CPU CONTROL SYSTEM (FREQUENCY COMBINATION) C H A N N E L AM 40CH + FM 40CH(80 CHANNEL) - option 240channel M ODUL AT IO N AM / FM C H A N N E L 10KHz S P A C E S U B...
  • Page 20 DEMODULATION DOUBLE SUPER HETERODINE S E N S I T I V I T Y AM-0.5㎶(10㏈ S/N), FM-0.2㎶(S/N 12㏈) 0.2㎶ - 1㎶ S E N S I T I V I T Y S E L E C T I V I T Y MORE THAN 65㏈ AUDIO OUTPUT MORE THAN 3 watt D I S T O R T I O N LESS THAN 6.0%...
