Page 1: 8 ) S - M E T E

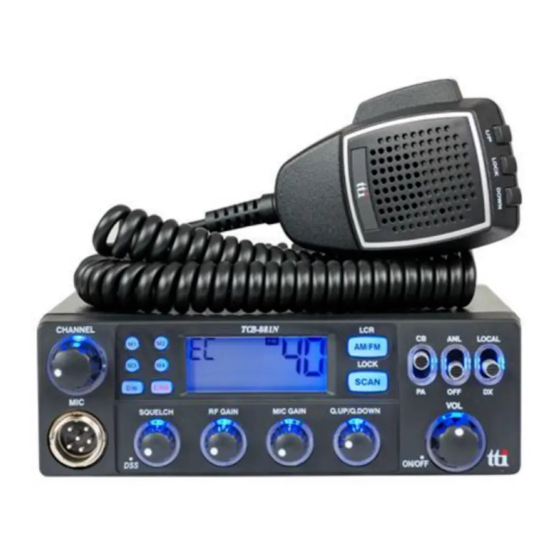

TCB-8 81 N 4W MOBILE CB TRANSCEIVER w w w.ttikorea.co.k r... -
Page 2: Table Of Contents
14. Restrictions on the use ......18 15. Frequency Table ........19 TCB-881N... -
Page 3: Introduction
The transceiver should normally be mounted horizontally, but may be mounted vertically. The bracket supplied can be fitted above or below the case allowing the TCB-881N to be cradled by the bracket or suspended from it. - Page 5 4) Make sure that you have a solid metal-to-metal ground connection. 5) Be careful not to damage the cable during the installation. Warning : Never try the operation of your transceiver before connecting a proper antenna in order not to cause any damage. TCB-881N...
-
Page 7: Memory Channel Selectors
To return to the previous channel operation, momentary press the memory channel selector, or use the channel selector or quick up/quick down selector. When you select a channel and the channel is same as one of the memorized channels, the matching memory number icon blinks. TCB-881N... -
Page 9: Am/Fm And Lcr Button
To receive weak signals, locate the selector on the DX position. While the transceiver is in the location where the signal is very strong, locate the selector on the Local position. This gives attenuation to get better audio sound. TCB-881N... -
Page 11: 7 ) Ante N N A Co N N E C To
5. LCD Display Selected Frequency Band 2 3 4 5 6 Scan Transmit FM Mode AM Mode Channel Display Signal Strength Meter Memory Channel Activated Receive Dual Watch Mode 7 8 9 10 11 12 Keypad Lock Emergency Channel Displa y TCB-881N... -
Page 13: Microphone
5) Turn on the transceiver and control the volume level. 6) Adjust the squelch control knob to the optimum level. 7) Select your desired channel. 8) To transmit, press the PTT button and speak to the microphone. 9) Release the PTT button to receive. TCB-881N... -
Page 15: Trouble Shooting
This should fix most problems. In case of further difficulty, please consult your dealer or visit our website. 11. CE Declaration CE versions of the TCB-881N which display the CE symbol on the product label, complies with the essential requirements of the Radio Equipment Directive (RED) 2014/53/EU. -
Page 16: Safety Requirement
12. Safety Requirement The power cable is for 12V/24V DC only. Be sure the transceiver is off before connecting the leads of the power cable to the power supply. It is important to observe the polarity even if the unit is protected against the accidental inversion : * Red : Positive pole (+) * Black : Negative pole (-) -
Page 17: Specification
13. Specification Channel 40 (See the frequency band chart) Frequency Range 26.96 MHz ~ 27.99125 MHz Operating Mode F3E (FM), A3E (AM) Frequency Control PLL Synthersizer Frequency Tolerance 0.002% Operating Temperature Range -10 to +55℃ Microphone Plug-in Type Input Voltage 12V 24V DC ±... -
Page 19: Frequency Table
