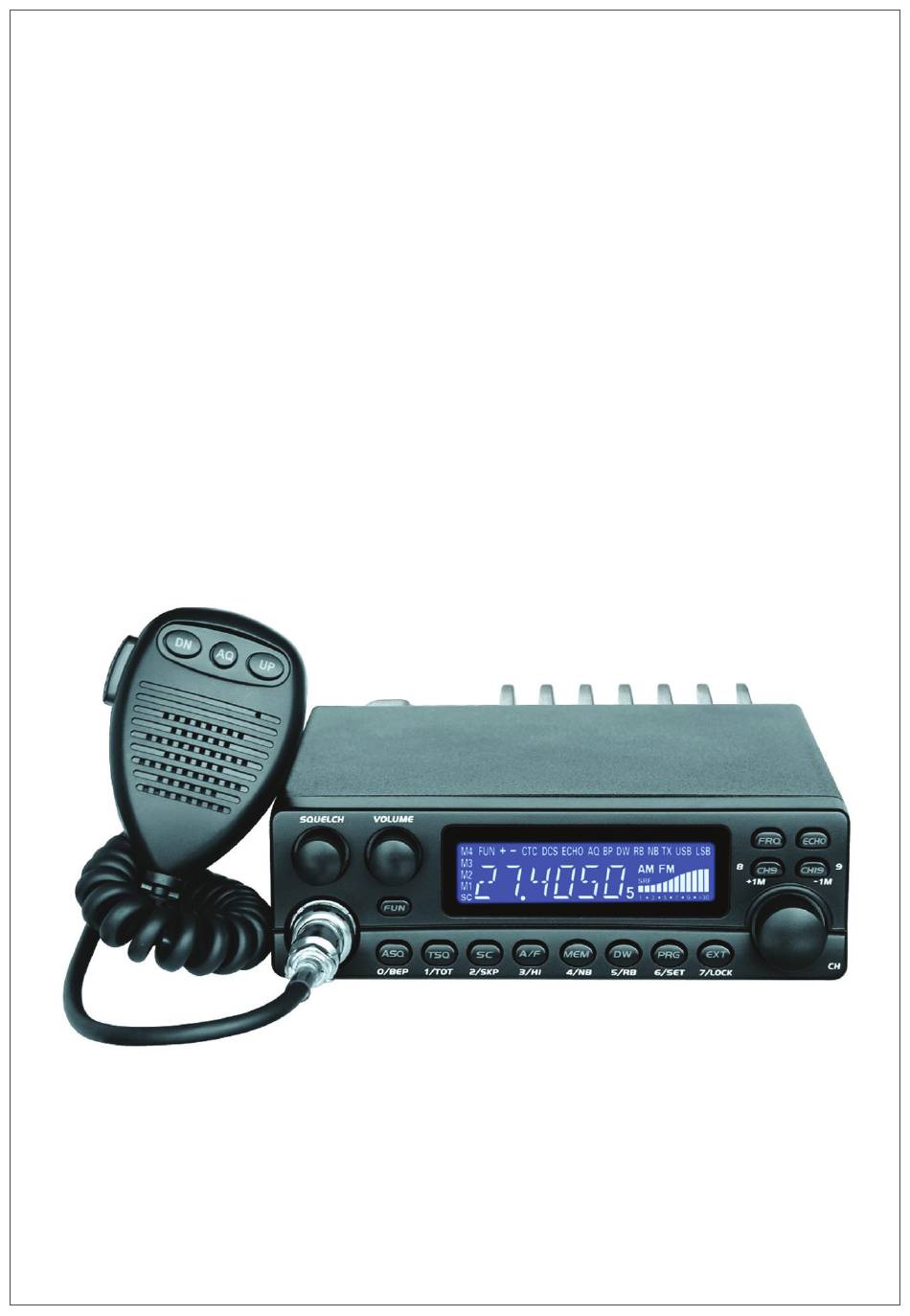

- Page 1 TTi TCB-5289 User manual / Manual de usuario / Használati utasítás Manuale dell’utente / Instrukcja obsługi / Manual de utilizare...
-
Page 2: Other Warning
WARNINGS Please read the following precautions to prevent fire, personal injury or the radio destruction. Do not attempt to adjust the radio while driving; is dangerous. This radio is designed for power supply at 13.8V DC. Do not use a 24V battery to power the radio. Do not place the station on an excessively dusty, damp or unstable surface. -
Page 3: Power Connection
• For antennas that are fixed by drilling, you need a good contact between the antenna and the table plane. To get this done, you should lightly scratch the surface on which the screw and nut are tightened. • Be careful not to pinch or flatten the coax cable to avoid the risk of permanent or short-circuit hazards. •... -

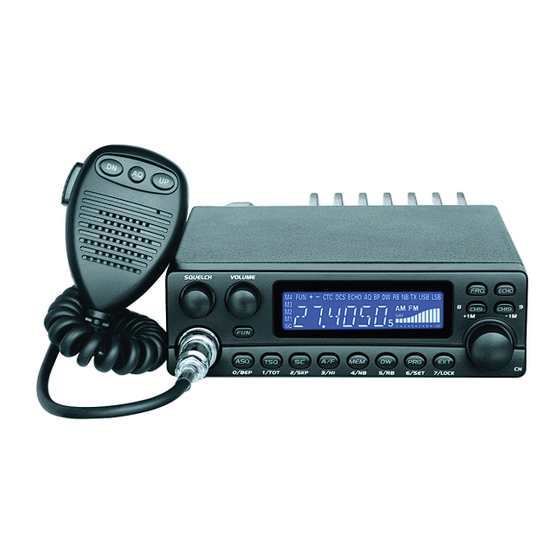

Page 4: Product Description
PRODUCT DESCRIPTION SQUELCH VOLUME FR Q EC HO C H1 9 FU N BE P 1 TOT SK P SE T LOC K Front panel 18 19 EXT SP DATA Rear panel Microphone INSTRUCTIONS FOR USE 1. Manual Squelch Turn the SQUELCH knob clockwise to the exact point where all background noise disappears. Please note that this control is fine regulation, if you set it to the maximum (fully clockwise), the radio can only receive the strongest signal. - Page 5 Note: ASQ will automatically turn off if the TSQ function turned on b. BEP: Press FUN, the LCD display “FUNC”, when “FUNC” disappear, press ASQ, the LCD displays “BP”, the key beep function is on, press it again to turn off BEP function. 5.
- Page 6 key to exit dual watch. RB (Roger beep) Press FUN, the LCD display “FUNC”, when “FUNC” disappear, press DW, the LCD displays “RB XXX”, turn the channel knob to choose the RB sound you need. Press any other key to exit. When any RB sound be choose, the LCD will displays “RB”...
- Page 7 12. CH9 key CH9: Press CH9 to jump to emerge channel 9 in present band, the LCD will flash; all key except CH9, FRQ key is valid. Press CH9 again to turn off emerging channel. +1M In VFO mode, press CH9 to increase the frequency by1MHZ. 13.
-
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS GENERAL Modulation modes AM/FM 28.000-29.700MHz (programmable) Frequency ranges 25.615-30.105MHz Antenna impedance 50 Ohms Power supply 13.2V Dimensions 15.8X 4.8X16.5 mm Weight 1.1KG TRANSMISSION Frequency error +/- 300HZ Output power AM: 4W,15W ; FM: 4W,15W, 50W Transmission interference inferior to 4nW(-54dBm) Audio response 300HZ to 3KHZ in AM/FM Emitted power in the adj.
