Summary of Contents for TTI PMR-1000TX
-

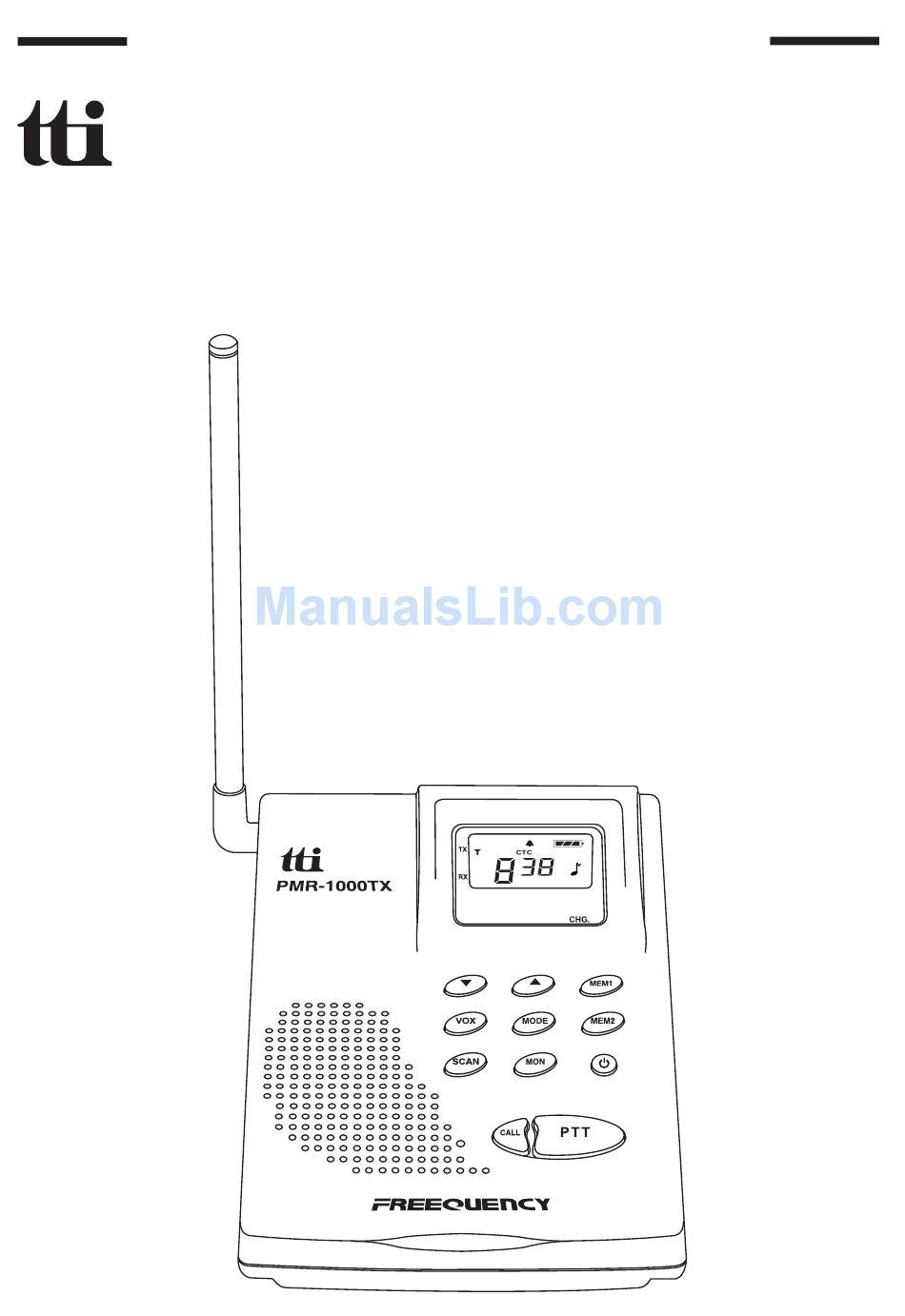

Page 1: Instruction Manual
Instruction Manual Tech Private Mobile Radio (PMR)446MHz Model:PMR-1000TX... - Page 2 BATTERIES. WHEN RECHARGING, USE ONLY THE RE- CHARGEABLE BATTERIES SUPPLIED WITH YOUR TRANS- CEIVER (OPTIONAL IN SOME CASES). USE OF OTHER BATTERIES WILL CAUSE DAMAGE TO YOUR PMR-1000TX TRANSCEIVER. OTHER TYPES OF BATTERIES MAY BURST CAUSING PERSONAL INJURY. AVOID INSTALLING THE PMR-1000TX TRANSCEIVER IN AN...
- Page 3 Model PMR-1000TX 1. Battery CHARGE On/Off Switch 11. CALL Button 2. Liquid Crystal Display (LCD) 12. DC12V Power Jack 3. TX/RX LED 13. Charging (CHG.) LED (Red) 14. Up/Down Channel/ 4. Antenna Volume Buttons 5. Battery Door 15. Memory 1 Button 6.
- Page 4 Model PMR-1000TX DISPLAY 1. Beep On/Off Indicator: This icon appears when the beep key tone is on, and disappears when tone is not in use. 2. Key Lock Indicator: Icon appears when keypad is locked. This function disables keys such as MODE, Memory, SCAN and VOX.
- Page 5 The icon appears when the VOX mode is activated. Powering the transceiver: The primary power source for Your PMR-1000TX base station is the AC wall adaptor. The PMR-1000TX is also supplied with a battery back-up, should you experience loss of household current.
- Page 6 COMPARTMENT COVER ARROW The following guidelines will improve performance and provide longer operating times for the PMR-1000TX: 1. Do not mix old and new batteries. 2. Do not mix alkaline, or rechargeable (Ni-MH) batteries. 3. If the unit is not to be used for an extended period of time, remove the batteries.
- Page 7 The battery charge indicator icon displays the battery charge level when the AC adaptor is unplugged. When the AC adaptor is connected and in use, the indicator icon will indicate a full charge as shown below. Full Battery - three segments are illuminated. Low Battery - one segment is illuminated.
- Page 8 PMR-1000TX OPERATIONAL MODES MODE CHANNEL SELECT CTCSS SELECT DUAL ROGER BEEP BEEP TONE MEMORY1 SELECT MEMORY2 SELECT CALL SELECT...
- Page 9 Controls: Power On/Off (18) Button Press and hold the power on/off button ( ) for at least 2 seconds. You will hear a confirming melody to indicate the unit is on. To turn the unit off, press and hold the button for at least 2 seconds. Adjusting the Volume With the unit powered on, press the Up Channel/Volume button ) to increase volume and the Down Channel/Volume button (...
- Page 10 Channel Selection In order to communicate with other PMR-446 units, both transmitting and receiving party must be on the same frequency. The PMR-1000TX has 8 channels (frequencies 01-08) indicated by the large digits on the LCD display panel. Communication with any compatible units...
- Page 11 Monitor (MON) button (7) to check the activity on that channel. If there is activity on the selected channel, change to another channel that is clear. To change the PMR-1000TX channel, - From the standby mode, press the MODE button (16) until the channel number flashes.
- Page 12 sub-code set to oF. The CTCSS sub-codes do not prevent others from hearing your transmission. This will only allow you to ignore all traffic on a given channel not using the same sub-code. Dual Watch Mode This feature allows you to monitor two channels. While in dual watch mode, the unit will continuously monitor both the primary and dual watch channel.
- Page 13 Beep Tone This feature allows the transceiver to sound a tone whenever the following keys are pressed: Up/Down buttons, VOX button, MODE button, SCAN button, Monitor (MON) button, Memory (MEM1/MEM2) button, or Power button. To turn the beep tones on or off: - From the standby mode, press the MODE button 5 times until bp, the Bell ( ) icon, and On or oF flash on the LCD display.
- Page 14 01 and 05, and an appropriate call ring. - Press the Up or Down button to preview and hear the 5 available call melodies. Call ring can be turned off buy selecting oF as the setting. - Momentarily press the PTT button to confirm your selection. VOX Selection Mode This option enables you to have hands-free conversation.
-
Page 15: Notes For Good Communication
4. Check that AC adaptor is plugged into a working AC power outlet. NOTES FOR GOOD COMMUNICATION 1.The PMR-1000TX channels are shared on a 'take turns' basis. This means other groups may be talking on any of the channels. A common code of courtesy is to switch to another vacant channel and not to attempt to talk over someone who is already using the channel you first selected. -
Page 16: Troubleshooting
TROUBLESHOOTING If you have problems with your PMR-1000TX, reset your unit by turning it off and removing the batteries. And re-insert the batteries and turn the unit on again. Check the battery power level since in many cases low batteries cause problems such as no transmission, weak receiving signal and low sound. - Page 17 Main Channel Frequency Table Frequency Frequency Channel Channel (MHz) (MHz) 446.00625 446.05625 446.01875 446.06875 446.03125 446.08125 446.04375 446.09375 CTCSS Tone Sub-code Table FREQ.(Hz) FREQ.(Hz) FREQ.(Hz) 67.0 107.2 167.9 71.9 110.9 173.8 74.4 114.8 179.9 77.0 118.8 186.2 79.7 123.0 192.8 82.5 127.3 203.5...
- Page 18 CE DECLARATION CE version of the PMR-1000TX that displays the "CE" symbol on the product label, complies with the essential requirements of the European Radio and Telecommunication Terminal Directive 1999/5/CE. This warning symbol indicates that this equipment operates in non-harmonized frequency bands and / or may be subject to licensing conditions in the country of use.
