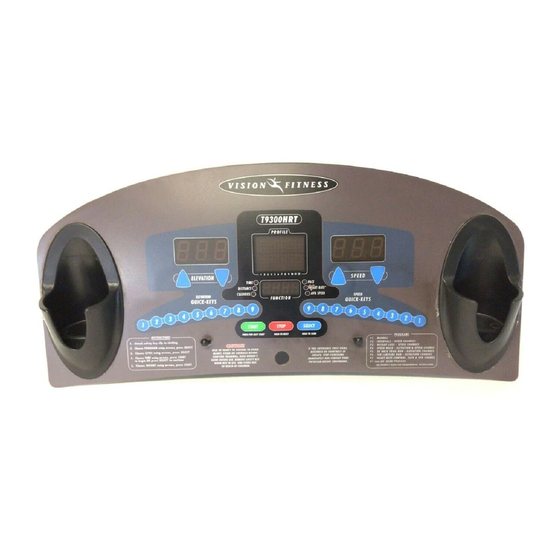

DGA3J

ENGINEERING GUIDE

S T A N D A R D C O N S O L E F O R :

V6.3 (T9200 DELUXE, T9500 DELUXE, T9600 DELUXE, T9250 DELUXE, T9450 DELUXE)

TREADMILL.UPPERBDENG.2006.REV2

Date of last revision: 11.05

Need help?

Do you have a question about the T9200 DELUXE and is the answer not in the manual?

Questions and answers

Summary of Contents for Vision Fitness T9200 DELUXE

Page 1 DGA3J ENGINEERING GUIDE S T A N D A R D C O N S O L E F O R : V6.3 (T9200 DELUXE, T9500 DELUXE, T9600 DELUXE, T9250 DELUXE, T9450 DELUXE) TREADMILL.UPPERBDENG.2006.REV2 Date of last revision: 11.05...
Page 2 DGA3J Upper Board: Engineering Guide ENGINEERING MODE With the SAFETY KEY in place, hold down for 5 seconds. “ “ E E N N G G 1 1 ” ” appears “ELEVATION UP” “SPEED DOWN” in the time window. The user has five engineering modes to choose from. The keys scroll “SPEED”...
Page 3 DGA3J Upper Board: Engineering Guide continued Address Description Default Value Min. Value Max. Value Checksum Configuration Min. offset Max. offset value (P6) Offset for Different models per v5.1: 792E Software Version v5.1 v5.6 v5.1 v5.6 v5.6: 240D T9300 No HRT -TM55/TM55C 00-English, 0.5 to 10 mph, 12% incline 01-Metric, 1.0 to 15 km/h, 12% incline T9400 HRT-TM56...
Page 4 DGA3J Upper Board: Engineering Guide continued Min. offset Max. offset Offset for Different models per Software Version v6.3 v6.3 T9250/T9450 40-English, 10 mph, 12% elevation 41-Metric, 16 kph, 12% elevation T9500 42-English, 12 mph, 12% elevation 43-Metric, 19 kph, 12% elevation T9600 44-English, 12 mph, 15% elevation 45-Metric, 12 kph, 15% elevation...
Page 5: Speed Down
DGA3J Upper Board: Engineering Guide continued ENG2: DISPLAY TEST MODE Function ENTER/SELECT Toggles all LEDs and displays on or off SPEED UP Turns on individual segments in all the displays in a clockwise motion SPEED DOWN Turns on individual segments in all the displays in a counter-clockwise motion STOP Watch dog test: Reboots into normal operating mode if test passes ELEVATION UP...
Page 6 DGA3J Upper Board: Engineering Guide continued Function (continued) ELEVATION UP Increases incline ELEVATION DOWN Decreases incline START Resumes program if paused. ENG4 AUTO-CALIBRATION MODE 1. Check Configuration in ENG1 before auto-calibrating treadmill. 2. Press the key once - DO NOT hold down the key. SEG 4-5 should display " " A A U U T T O O " " in the “SELECT/SCAN”...
Page 7 DGA3J Upper Board: Engineering Guide continued ERROR DISPLAY DESCRIPTION SOLUTION NOVRAM "Init" on Px values stored in NOVRAM are The system checks for valid P6 configuration. It Px values power up outside valid ranges or checksum writes the default values with respect to P6, if valid. invalid.
Page 8 DGA3J Upper Board: Engineering Guide continued Software Version 5.1 - If the safety magnet has been removed during a program while the incline was used an E5 may occur randomly until the treadmill is properly rebooted. 1. With power to the treadmill, remove the safety magnet. 2.
Page 9 DGA3J Upper Board: Engineering Guide continued USER ENGINEERING MODE User Engineering Mode, added starting in v5.6, is designed for the user to access functions that will not affect important treadmill settings. The user must hold down for 5 seconds while treadmill is in any “SPEED DOWN”...
