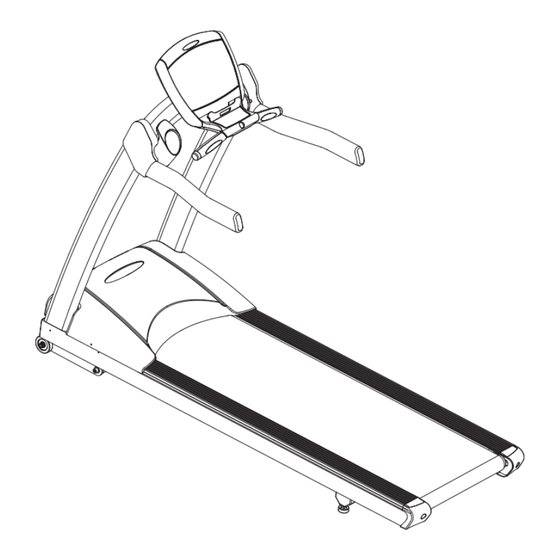

Vision Fitness T9200 Assembly Manual

MODEL CONFIGURATION & AUTO-CALIBRATION
5
STEP
Once the Treadmill is plugged in, you need to configure the Treadmill and perform an auto-calibration to assure maximum
performance.
PREMIER and DELUXE CONSOLE:
DO NOT STAND ON THE BELT WHEN PERFORMING THE AUTO-CALIBRATION
Once the treadmill is plugged in, you will need to configure and run auto-calibration. With the safety key in place, turn the
treadmill on. A setup screen should appear on the console. Set your treadmill to the correct model number (9200, 9500, or
9600) using the ELEVATION arrow keys and the correct units (MI [miles]/KM [kilometers]) using the SPEED arrow keys. If you
are unsure of the model number, you can locate the number on the console masts. Once you have located the model number
and units with the arrow keys, press and hold ENTER. Now you can perform auto-calibration by pressing START.
The treadmill will run through minimum and maximum speed and elevation. This will take 3 to 5 minutes. Let the treadmill
perform this complete function. "END" will appear when auto-calibration is complete. When auto-calibration is complete, the
treadmill will reboot and return to the start-up screen.
SIMPLE CONSOLE:
DO NOT STAND ON THE BELT WHEN PERFORMING THE AUTO-CALIBRATION
Once the treadmill is plugged in, you will need to configure and run auto-calibration. With the safety key in place, turn the
treadmill on. A setup screen should appear on the console. The large LED window displays the model number and the small
LED window displays the units. Set your treadmill to the correct model number (9200, 9500, or 9600) using the ELEVATION
arrow keys and the correct units (0 for miles and 1 for kilometers) using the SPEED arrow keys. If you are unsure of the model
number, you can locate the number on the console masts. Once you have located the model number and units with the arrow
keys, press and hold ENTER. Now you can perform auto-calibration by pressing START.
The treadmill will run through minimum and maximum speed and elevation. This will take 3 to 5 minutes. Let the treadmill
perform this complete function. "END" will appear in the window when auto-calibration is complete. When auto-calibration
is complete, the treadmill will reboot and return to the start-up screen.
ASSEMBLY
500 South CP Avenue • P .O. Box 280 • Lake Mills, WI 53551
toll free 800.335.4348 • phone 920.648.4090 • fax 920.648.3373
www.visionfitness.com
©2008 Vision Fitness. All Rights Reserved. T9200, T9500, T9600
May be covered by one or more patents or patents pending: AND
US 6273843, US 7104930, TW 586429, CN 03206094.7
8.08
