Vision Fitness DELUXE T9200 Engineering Manual
(6-window) upper board
Hide thumbs
Also See for DELUXE T9200:
- Troubleshooting manual (12 pages) ,
- Engineering manual (9 pages) ,
- Engineering manual (8 pages)
Related Manuals for Vision Fitness DELUXE T9200
Summary of Contents for Vision Fitness DELUXE T9200

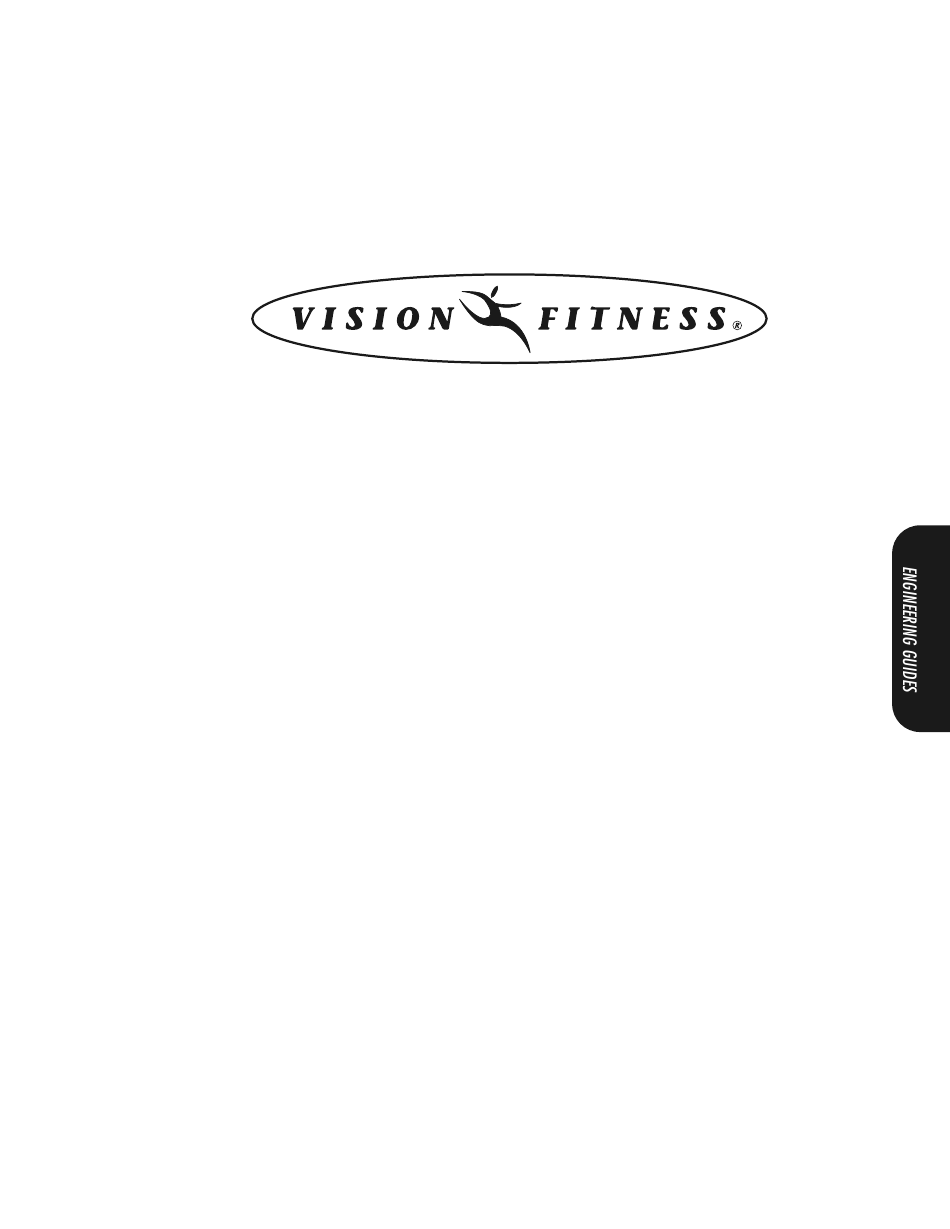

- Page 1 DELUXE (6-WINDOW) UPPER BOARD ENGINEERING GUIDE S T A N D A R D C O N S O L E F O R : (T9200 DELUXE, T9500 DELUXE, T9600 DELUXE, T9250 DELUXE, T9450 DELUXE) TREADMILL.UPPERBDENG.DELUXE.REV1 Date of last revision: 2.06...
- Page 2 Deluxe Upper Board: Engineering Guide ENGINEERING MODE The user must hold down for 5 seconds after powering up the treadmill to “ELEVATION UP” “SPEED DOWN” enter the engineering menus. The P6 menu appears with the software version in the upper right window along with the model number in the upper left window.
- Page 3 Deluxe Upper Board: Engineering Guide T9500/T9600 VARIABLES Address Description Default Value Min.Value MaxValue Minimum Speed Data Speed Data 2 1400 1/2 max Speed Data 2000 3200 Speed Data 4 3000 4200 Max speed Data 3900 5200 LED Brightness Minimum Elevation Data Max Elevation Data Model and Unit (Metric/US) Max Time...
- Page 4 Deluxe Upper Board: Engineering Guide ENG2: DISPLAY TEST MODE Function ENTER/ SELECT All LEDs light up SPEED UP Turns on individual LEDs in all the displays in a clockwise motion and the dots in the dot matrix move up in different colors SPEED DOWN Turns on individual LEDs in all the displays in a counter-clockwise motion and the dots in the dot matrix move down in different colors...
- Page 5 Deluxe Upper Board: Engineering Guide ENG 5: SPEED SENSOR MODE The PWM value is displayed in the upper right window. The Elevation A/D is displayed in the upper left window. The Dot Matrix displays a flashing row of lights between 2 constant rows of lights. As the arrow is “SPEED UP”...
- Page 6 Deluxe Upper Board: Engineering Guide USER ENGINEERING MODE (DELUXE ONLY) Your treadmill offers a User Engineering Mode that can access certain data and help to troubleshoot your treadmill. User Engineering Mode is designed for you to access functions that will not affect important treadmill settings. To access this mode please hold down for 5 seconds while the treadmill is in any state “SPEED DOWN”...
- Page 7 Deluxe Upper Board: Engineering Guide DEFAULT AGE P16 represents the default age, which is displayed in the upper left window. The Treadmill comes with the default age of 40. You can modify the age by using the arrows. Press and hold to save “SPEED”...
