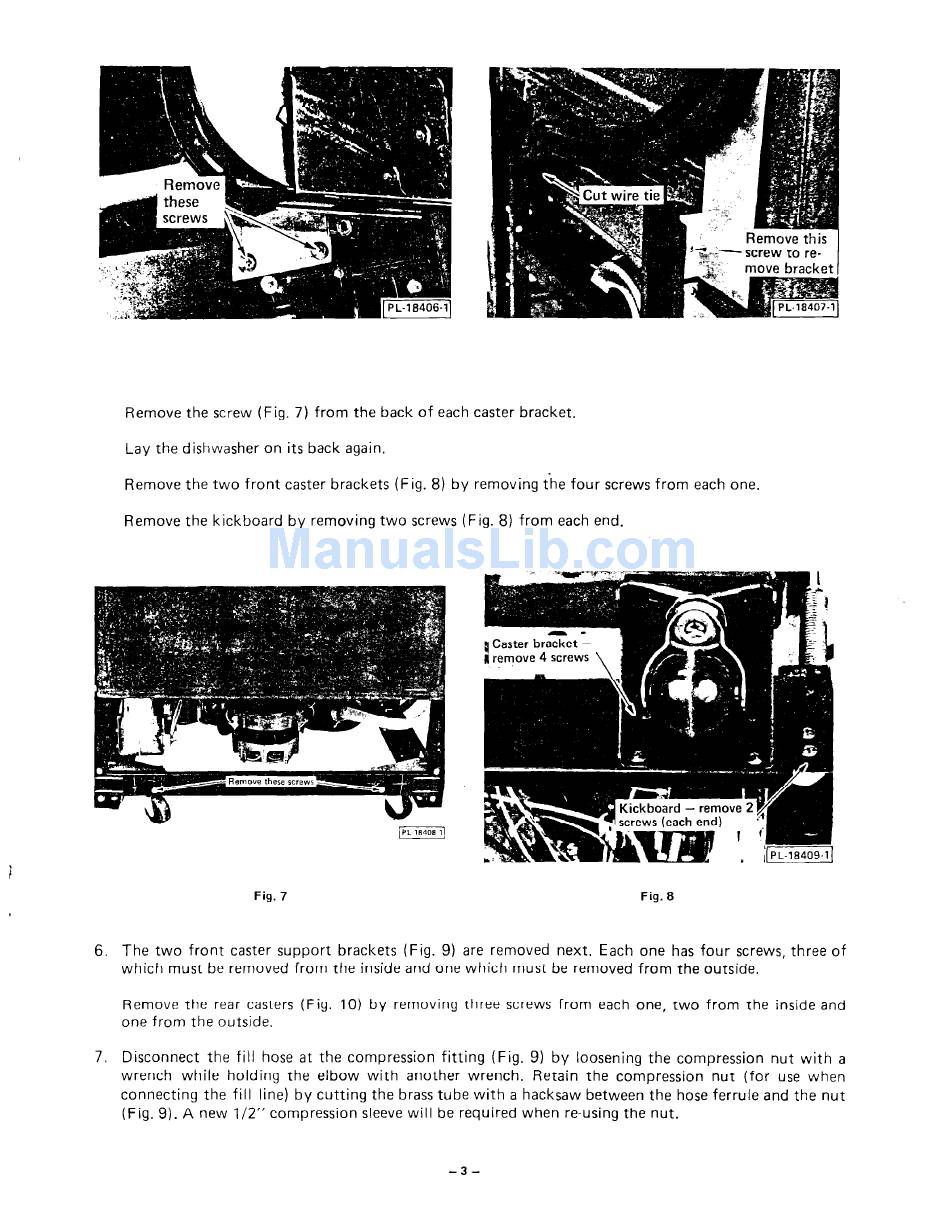

Remove
the screw
(Fig. 7) from
the back of each caster
bracket.
Lay the dishwasher
on its back again.
Remove
the two front
caster
brackets
(Fig. 8) by removing
the four screws from
each one.
Remove
the kickboard
by removing
two screws
(Fig. 8) from
each end.
Fig. 7
Fig. 8
6.
The two
front
caster
support
brackets
(Fig.
9) are removed
next.
Each one has four
screws,
three
of
which
must
be removed
from
the inside
and one which
must be removed
from
the outside.
Remove
the rear casters
(Fig.
10) by removing
three
screws
from
each one, two
from
the inside
and
one from
the outside.
7.
Disconnect
the fill
hose at the compression
fitting
(Fig.
9) by loosening
the compression
nut with
a
wrench
while
holding
the
elbow
with
another
wrench.
Retain
the compression
nut
(for
use when
connecting
the fill
line) by cutting
the brass tube with
a hacksaw
between
the hose ferrule
and the nut
(Fig. 9). A new l/2"
compression
sleeve will
be required
when
re-using
the nut.
-3-
