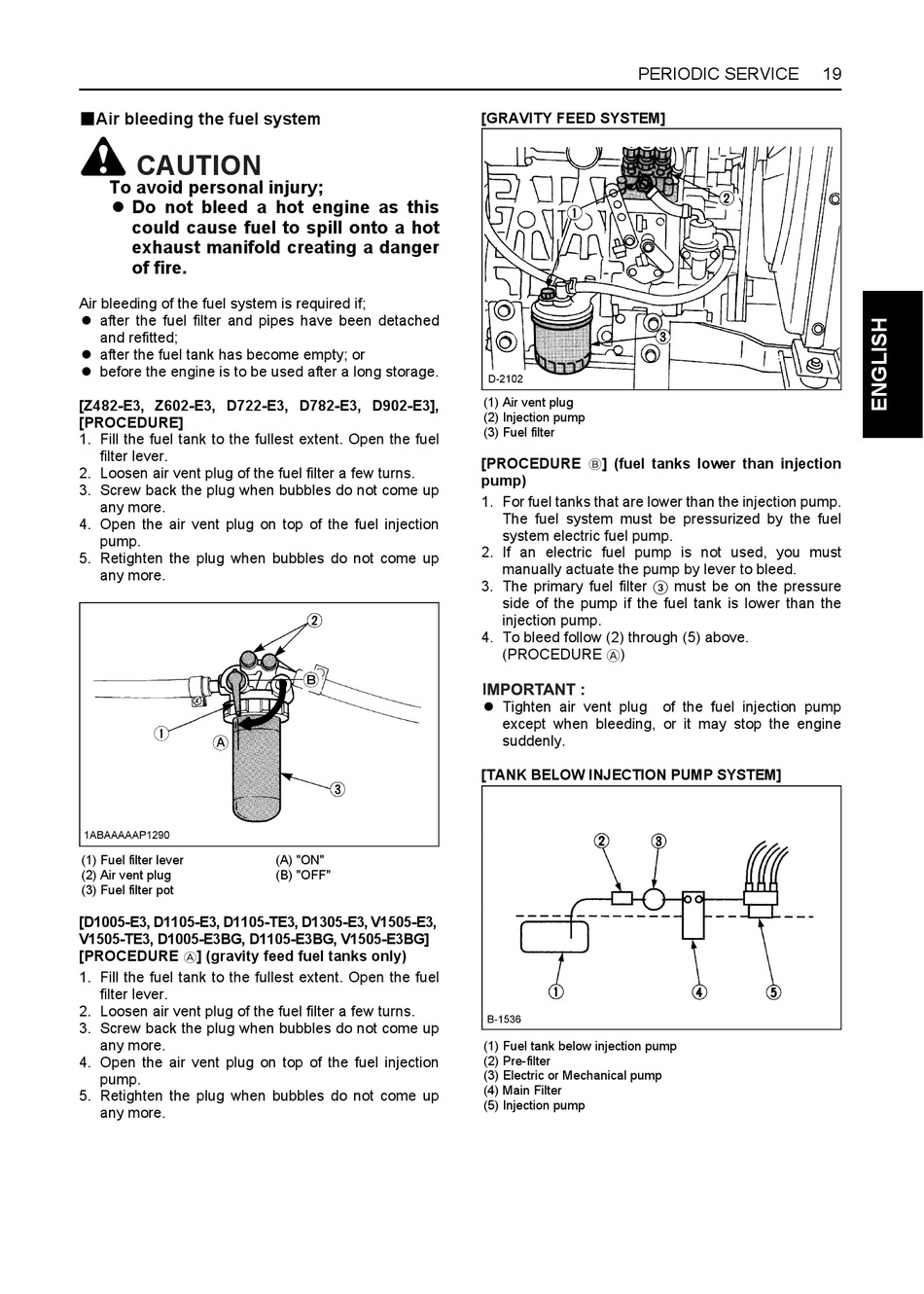

BAir bleeding the fuel system
CAUTION
To avoid personal injury;
A Do not bleed a hot engine as this
could cause fuel to spill onto a hot
exhaust manifold creating a danger
of fire.
Air bleeding of the fuel system is required if;
A after the fuel filter and pipes have been detached
and refitted;
A after the fuel tank has become empty; or
A before the engine is to be used after a long storage.
[Z482-E3, Z602-E3, D722-E3, D782-E3, D902-E3],
[PROCEDURE]
1. Fill the fuel tank to the fullest extent. Open the fuel
filter lever.
2. Loosen air vent plug of the fuel filter a few turns.
3. Screw back the plug when bubbles do not come up
any more.
4. Open the air vent plug on top of the fuel injection
pump.
5. Retighten the plug when bubbles do not come up
any more.
(1) Fuel filter lever
(2) Air vent plug
(3) Fuel filter pot
[D1005-E3, D1105-E3, D1105-TE3, D1305-E3, V1505-E3,
V1505-TE3, D1005-E3BG, D1105-E3BG, V1505-E3BG]
[PROCEDURE
] (gravity feed fuel tanks only)
1. Fill the fuel tank to the fullest extent. Open the fuel
filter lever.
2. Loosen air vent plug of the fuel filter a few turns.
3. Screw back the plug when bubbles do not come up
any more.
4. Open the air vent plug on top of the fuel injection
pump.
5. Retighten the plug when bubbles do not come up
any more.
(A) "ON"
(B) "OFF"
PERIODIC SERVICE
[GRAVITY FEED SYSTEM]
(1) Air vent plug
(2) Injection pump
(3) Fuel filter
[PROCEDURE
] (fuel tanks lower than injection
pump)
1. For fuel tanks that are lower than the injection pump.
The fuel system must be pressurized by the fuel
system electric fuel pump.
2. If an electric fuel pump is not used, you must
manually actuate the pump by lever to bleed.
3. The primary fuel filter
side of the pump if the fuel tank is lower than the
injection pump.
4. To bleed follow (2) through (5) above.
(PROCEDURE
)
A Tighten air vent plug of the fuel injection pump
except when bleeding, or it may stop the engine
suddenly.
[TANK BELOW INJECTION PUMP SYSTEM]
(1) Fuel tank below injection pump
(2) Pre-filter
(3) Electric or Mechanical pump
(4) Main Filter
(5) Injection pump
19
must be on the pressure
