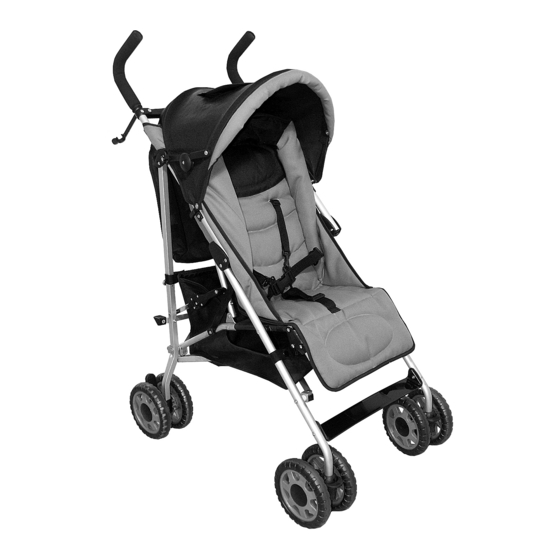

Phoenix Umbrella Layback Stroller
BRITAX CHILDCARE PTY. LTD A Britax International company.
(Incorporated in Victoria) A.B.N. 55 006 773 600
99 Derby Road, Sunshine, Victoria 3020, Australia
Phone: (03) 9288 7288 Fax: (03) 9311 5798
CUSTOMER SERVICE
1300 303 330 - Australia 0508 688 822 - New Zealand
Due to our continuing program of development, Britax reserves the right to alter
the specifications, color or design without any further notice.
The Steelcraft trademark is the property of Britax Childcare Pty.Ltd - Australia.
The Britax trademark is the property of Britax Childcare Holdings Limited - UK.
Visit the Britax website at: www.britax.com.au or email us at au-custserv@britax.com
Due to the variations in the style and design of our products the illustrations used
in this instruction booklet are generic.
This product is designed to comply with Australian and New Zealand standard
AS/NZS2088:2013 "Prams and Strollers - Safety Requirements."
2010-2013 Copyright Britax Childcare Pty. Ltd. Australia
IMPORTANT: KEEP THIS BOOKLET IN A SAFE PLACE FOR FUTURE REFERENCE
Art No.4001705
Series AX108

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX108 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Steelcraft AX108

Summary of Contents for Steelcraft AX108

  • Page 1 Due to our continuing program of development, Britax reserves the right to alter the specifications, color or design without any further notice. The Steelcraft trademark is the property of Britax Childcare Pty.Ltd - Australia. The Britax trademark is the property of Britax Childcare Holdings Limited - UK.

  • Page 2: Care And Maintenance

    IMPORTANT NOTES CARE AND MAINTENANCE IMPORTANT NOTES: • To prolong the life of your stroller keep it clean and do not leave it in the direct sunlight or in the car boot for extended periods of time. ALWAYS FOLLOW THE MANUFACTURERS INSTRUCTIONS. •...

  • Page 3: Lifting And Carrying The Stroller

    13. LIFTING AND CARRYING THE STROLLER IMPORTANT NOTES AND WARNINGS (Continued) WARNINGS: TO AVOID INJURY OR DEATH: ALWAYS APPLY THE BRAKES WHENEVER THE STROLLER IS STATIONARY. • DO NOT LEAVE CHILDREN UNATTENDED. • SECURE THE CHILD IN THE HARNESS AT ALL TIMES. •...

  • Page 4: Manual Handling Techniques

    12. FOLDING THE STROLLER (Continued) MANUAL HANDLING TECHNIQUES SMART lifting technique Stand the stroller upright. Hold the stroller handle with one hand This technique can be used to pick up small light loads from low and with the other hand apply the storage latch. Ensure the storage levels.

  • Page 5: Parts List

    12. FOLDING THE STROLLER (Continued) PARTS LIST Then with both feet on the ground push the handles forward until the frame is fully folded. CAUTION 1 x Stroller Frame, Seat & basket 1 x Canopy 2 x Front Wheel 1 x Rain Cover...

  • Page 6: Opening The Stroller

    12. FOLDING THE STROLLER (Continued) 1. OPENING THE STROLLER IMPORTANT NOTES: Place your foot under the lower locking bar peg at the rear of the stroller and lift upwards until the frame hinge unlocks. PLEASE REFER TO PAGE 4 FOR SMART LIFTING TECHNIQUES. •...
  • Page 7 1. OPENING THE STROLLER 12. FOLDING THE STROLLER (Continued) Stand the stroller upright. Hold the stroller handle with one hand Close the canopy. (Refer to Section 8C) and with the other hand release the storage latch. Raise the backrest to the fully upright position. (Refer to Section 7B) CAUTION...
  • Page 8 1. OPENING THE STROLLER (Continued) 12. FOLDING THE STROLLER (Continued) Lift the handles upwards and allow the front legs to drop towards Lock the brakes. (Refer to Section 4A) the floor. Stroller is now partially open. CAUTION Lock the swivel wheels. (Refer to Section 3A) To fully open the frame, continue to hold the handles.
  • Page 9 1. OPENING THE STROLLER (Continued) 12. TO FOLD THE STROLLER IMPORTANT NOTES: The frame is fully opened and locked. Check that both the upper hinge and lower locking bar are fully engaged before using the PLEASE REFER TO PAGE 4 FOR LIFTING TECHNIQUES. stroller.
  • Page 10 2. ASSEMBLING AND REMOVING THE FRONT SWIVEL WHEELS 11. TO USE THE STROLLER PLEASE REFER TO PAGE 4 FOR LIFTING TECHNIQUES. Take each front swivel wheel assembly and push it onto each of the front legs until it clicks into place. Check that each wheel is fully •...

  • Page 11: Using The Swivel Wheels

    3. USING THE SWIVEL WHEELS 10. TO USE THE TETHER STRAP WARNINGS: NOTE: Always lock the swivel wheels when using the stroller on USE THE TETHER STRAP TO STOP rough surfaces as this will minimise wheel wobble. THE STROLLER ROLLING AWAY. The swivel wheels should only be locked when the wheels are in the trailing position (wheels under frame).

  • Page 12: Using The Brakes

    4. USING THE BRAKES 9. TO SECURE YOUR CHILD IN THE HARNESS (Continued) WARNING: The shoulder straps must be positioned near the child’s shoulders. ALWAYS APPLY THE BRAKES WHEN THE To change the shoulder harness height, push the shoulder harness STROLLER IS STATIONARY.

  • Page 13: Important Note

    9. TO SECURE YOUR CHILD IN THE HARNESS (Continued) 5. TO FIT THE RAIN COVER IMPORTANT NOTE: ENSURE THE RAIN COVER IS KEPT AWAY FROM THE CHILD’S FACE. REFIT THE RAIN COVER IF REQUIRED TO ENSURE YOUR CHILD IS SAFE. Place the rain cover over the stroller canopy.

  • Page 14: Adjusting The Leg Rest

    9. TO SECURE YOUR CHILD IN THE HARNESS (Continued) 6. ADJUSTING THE LEG REST IMPORTANT NOTES: • THE LEG REST FEATURE IS PROVIDED FOR YOUR CHILD'S COMFORT. • THE LEG REST IS NOT DESIGNED TO SUPPORT EXTRA WEIGHT. • DO NOT ALLOW CHILDREN TO STAND OR SIT ON THE LEG REST. IT WILL DISENGAGE IF EXTRA WEIGHT IS APPLIED.

  • Page 15: Adjusting The Backrest

    9. TO SECURE YOUR CHILD IN THE HARNESS (Continued) 7. ADJUSTING THE BACKREST WARNINGS: • THE UPRIGHT POSITIONS ARE NOT SUITABLE FOR USE WITH 3 bar slider 3 bar slider CHILDREN LESS THAN 6 MONTHS OLD. • THE LOWEST RECLINE POSITION SHOULD BE USED TO Waist TRANSPORT BABIES.
  • Page 16 7. ADJUSTING THE BACKREST (Continued) 9. TO SECURE YOUR CHILD IN THE HARNESS (Continued) To lower the backrest, lock the brakes (Refer to Section 4). Locate Shoulder straps the backrest adjusters on both sides of the stroller. Push both grey latches on the adjusters down to release the locking mechanism and slide the adjusters back towards the rear of the stroller to the Buckle...
  • Page 17 9. TO SECURE YOUR CHILD IN THE HARNESS 8. ATTACHING AND USING THE CANOPY IMPORTANT NOTE: WARNING: USE THE HARNESS AT ALL TIMES. The sun is very strong. DO NOT LEAVE YOUR CHILD EXPOSED TO THE • ENSURE YOUR CHILD IS SECURED WITH A CORRECTLY SUN.The canopy or hood on this product will not give your child ADJUSTED HARNESS.
  • Page 18 8. TO ATTACH AND USE THE CANOPY (Continued) 8. TO ATTACH AND USE THE CANOPY (Continued) To open the canopy window, pull the canopy window flap away To fold the canopy, release the canopy adjusters on each side of the From the canopy.
