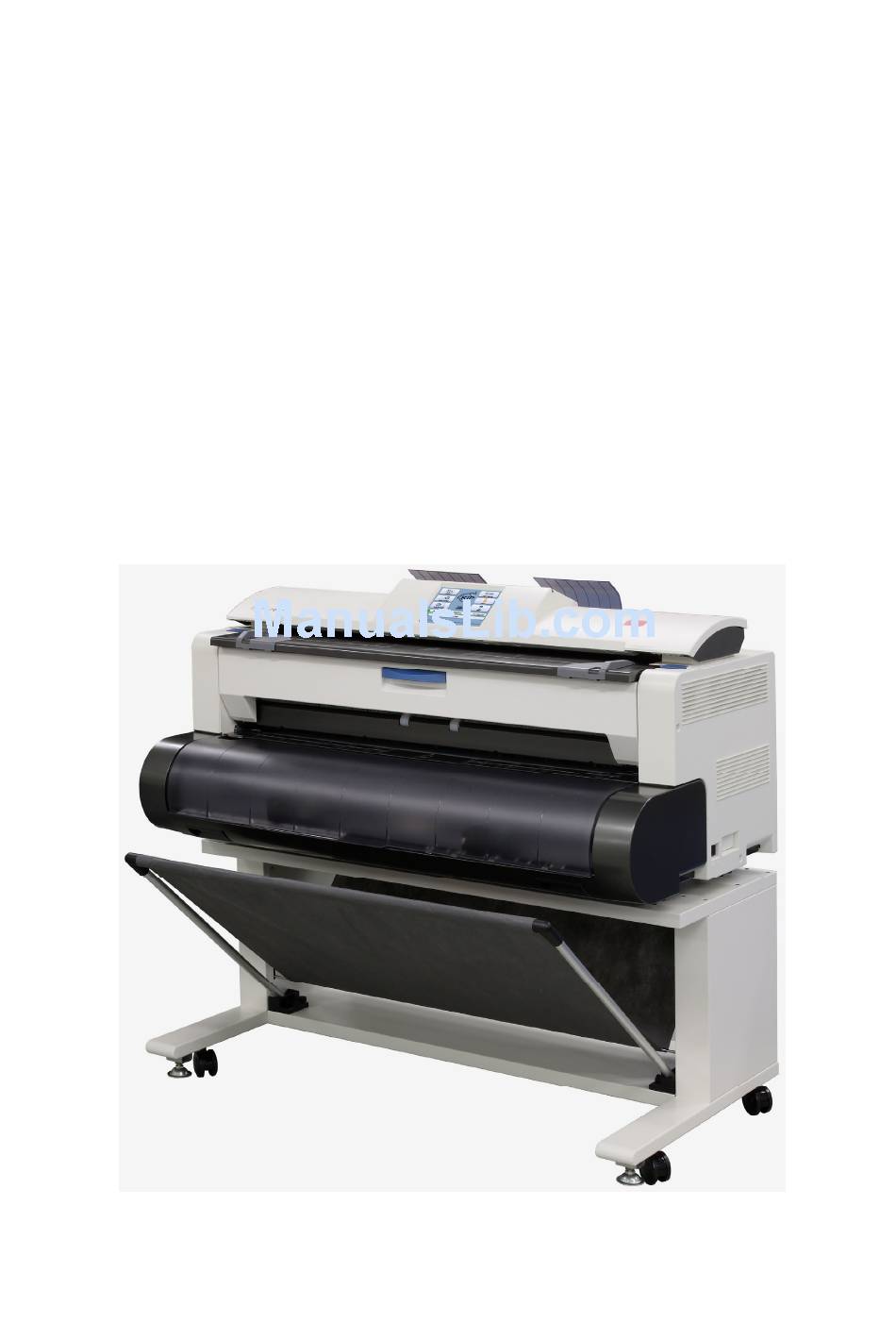

- Page 1 MULTI-FUNCTION PRINTER KIP 700m Hardware Operation Guide Version A.3 September 6, 2010 Carefully read this manual before use. Keep this manual for future reference.
- Page 2 Thank you for purchasing the Multi-Function Printer KIP 700m. This Hardware Operation Guide contains functional and operational explanations for the KIP 700m. Please read this Hardware Operation Guide carefully before using the printer. Please keep this Hardware Operation Guide for future reference.
-
Page 3: Installation Requirements
(Refer to the following figure.) The equipment must be leveled and the floor strength must be ample to sustain the weight of the equipment. 20cm/8” or larger with no option (Rear) KIP 700m 10cm/4” or larger 10cm/4” or larger (Front) 20cm/8” or larger... -
Page 4: Specifications
1. 4 Specifications 1. 4. 1 General Subject Specification Model KIP 700m Configuration Console Power consumption 1500w (US model) (Maximum) 1600w (Europe/Asia model) (Including Scanner & Controller Unit) Power consumption 13w or less (US model) (Low power mode) 13.5w or less (Europe/Asia model) - Page 5 1. 4. 2 Printer part Subject Specification Printing method LED Array Electro photography Photoreceptor Organic Photoconductive Drum Print speed 40mm per second (Inch) 1.7ppm/E 2.9ppm/D Landscape (Metric) 1.6ppm/A0 2.8ppm/A1 Landscape Print head LED Array Resolution of print head 600dpi x 600dpi Print width Maximum 914mm / 36”...
- Page 6 Subject Specification Media source 1 Roll Deck (3” / 2” core roll) Manual Feeder (single cut sheet) Paper Tray (multiple cut sheet, option) Media (Recommended Roll Media) - US model: Bond : 64g/m to 80g/m , US Bond (20# Bond) Vellum : US Vellum (20# Vellum) Film...
- Page 7 1. 4. 3 Scanner part Subject Specification Scanning method Contact Image Sensor (CIS) (5 pieces of A4 sized CIS) Light source LED (R/G/B) Setting of original Face up Starting point of scan Center Scan width Max: 914.4mm / 36” Min : 279.4mm Scan length Max:...
-
Page 8: Turning On Kip 700M
In Europe : 220-240V plus 6% or minus 10%, 50/60Hz and 10A 2. Press “ | ” side the Power Switch on the right side of the printer to turn on the KIP 700m. Power Switch Press “ | “ side. - Page 9 Ready Indicator The UI screen may vary depending on your system configuration. (Shown with available options) 4. When Ready Indicator stops flashing, the KIP 700m is ready for operation. NOTE It is impossible to make any prints while Ready Indicator is flashing in orange.
-
Page 10: Turning Off Kip 700M
” side. CAUTION The KIP 700m print engine and UI appear to be shut down when you turn off KIP 700m. However, the controller PC embedded inside the KIP 700m is still operating and will shutdown in approximately two minutes after Power Switch operation. -
Page 11: Canceling Sleep Mode
NOTE (1) It may take time for the machine to get ready. (2) Tapping on the UI screen can cancel the screensaver but the KIP 700m needs to recover temperature on Fuser Unit. It may need another waiting time to start warming up for printing. -
