MISTRAL M60, M90 & M135 BOTTLE COOLERS
INSTALLATION AND OPERATING MANUAL
PLEASE LEAVE WITH OPERATOR
Mistral M60, M90 and M135 Bottle Coolers
R290a
Series 13
Imperial Machine Company Limited
Unit 1, Abbey Road
Wrexham Industrial Estate
Wrexham LL13 9RF
Tel: +44 (0)1978 661155
Fax: +44 (0)1978 729990
Service Fax: +44 (0)1978 667766
Spares Fax: +44 (0)1978 667759
E-mail: info@imco.co.uk
Website: www.imco.co.uk
A34/092 R1
ECN 8827 March 2019
Advertisement
Table of Contents
Related Manuals for IMC MISTRAL 13 Series
Summary of Contents for IMC MISTRAL 13 Series
- Page 1 MISTRAL M60, M90 & M135 BOTTLE COOLERS INSTALLATION AND OPERATING MANUAL PLEASE LEAVE WITH OPERATOR Mistral M60, M90 and M135 Bottle Coolers R290a Series 13 Imperial Machine Company Limited Unit 1, Abbey Road Wrexham Industrial Estate Wrexham LL13 9RF Tel: +44 (0)1978 661155 Fax: +44 (0)1978 729990 Service Fax: +44 (0)1978 667766 Spares Fax: +44 (0)1978 667759...
- Page 2 Mistral M60, M90, M135 EC DECLARATION OF CONFORMITY (Guarantee of Production Quality) We, Imperial Machine Company Limited of: Unit 1, Abbey Road, Wrexham Industrial Estate, Wrexham, LL13 9RF Declare under our sole responsibility that the following products Mistral M60, M90 and M135 as described in the attached technical documentation, are in conformity with the protection requirements of the Electromagnetic Compatibility Directive 2014/30/EU and manufactured in accordance with harmonised standards EN 61000-6-1: 2001 Immunity and EN 61000-6-3: 2007...
-
Page 3: Table Of Contents
Mistral M60, M90, M135 INDEX INDEX ........................3 WARRANTY ......................4 DELIVERY ......................4 SAMPLE RATING LABEL ..................5 INTRODUCTION ....................5 TURNING LED LIGHTS ON-OFF ................. 9 CHANGING A LED LIGHT ASSEMBLY............. 10 ELECTRICITY SUPPLY CONNECTION............. 11 COMMISSIONING ....................11 CHANGING THE CONTROLLER SET POINT ........... -
Page 4: Warranty
Mistral M60, M90, M135 WARRANTY These bottle coolers are guaranteed by IMC for 2 years from the date of purchase from IMC, or from one of its stockists, dealers or distributors. The guarantee is limited to the replacement of faulty parts or products and excludes any consequential loss or expense incurred by the purchaser. -
Page 5: Sample Rating Label

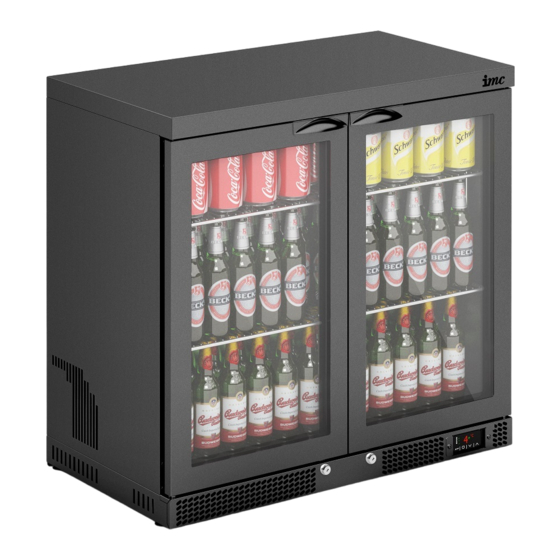

Mistral M60, M90, M135 SAMPLE RATING LABEL INTRODUCTION The Mistral M60 , M90 and M135 are back-bar or under-bar refrigerators designed for the cooling and storage of beverages. The following quantity of beverage bottles/mixers can be held in each unit: Bottle Cooler Capacity (330ml Bottles / 150ml mixer cans) - Page 6 Mistral M60, M90, M135 Mistral Dimensions: MODEL M60 STANDARD M60 850 SHORT M60 800 SHORT M90 STANDARD M90 850 SHORT M90 800 SHORT M135 STANDARD M135 800 SHORT 500 mm 900mm 500 mm 600mm Y mm Y mm...
- Page 7 Mistral M60, M90, M135 500 mm 1350mm Y mm M135...
- Page 8 INSTALLATION For the Installer These Instructions contain important information designed to help the user obtain the maximum benefit from their investment in an IMC Mistral Bottle Cooler. Please read them carefully before starting work, and consult with the supplier in the event of any queries.
-
Page 9: Turning Led Lights On-Off
Mistral M60, M90, M135 TURNING LED LIGHTS ON-OFF The cabinet is illuminated by a LED light unit, this light can be turned on or off by depressing the switch that is located on the underside of the worktop. To access this switch the door must be opened (the right hand furthest door on the M90 &... -
Page 10: Changing A Led Light Assembly
Mistral M60, M90, M135 CHANGING A LED LIGHT ASSEMBLY The cabinet interior is illuminated by a LED light strip fitting located at the front of the top inner panel. To change the light assembly: · Ensure the mains power to the unit has been turned off. ·... -
Page 11: Electricity Supply Connection
Mistral M60, M90, M135 ELECTRICITY SUPPLY CONNECTION Position the unit in the chosen site. The electricity supply connection should be made to a power outlet socket or isolator mounted on the wall close to the machine. This socket or isolator must be accessible once the machine is installed. -
Page 12: Changing The Controller Set Point
Mistral M60, M90, M135 CHANGING THE CONTROLLER SET POINT The electronic temperature controller is factory set to 4°C and will cycle the air temperature between 2°C and 6°C. The set point can be adjusted between 0°C and 10°C by following the button sequence below: Press SET the current SET Point will be displayed, if Loc is displayed then the controller is locked, to unlock press and hold the SET button for 3 seconds,... -
Page 13: Cleaning
· On the shelves in the M135 ensure that the clips are in position on the front covering the join (it should be a tight fit if not squeeze the clip slightly to give a better fit) Extra shelves are available from IMC. -
Page 14: Maintenance
Mistral M60, M90, M135 MAINTENANCE Warning Never service, repair or troubleshoot a unit unless you are a professional air conditioning / refrigeration service person. Improper servicing can lead to serious injury or death from fire, electric shock or explosion. Remove the service panel and insulation block inside the cabinet after switching the unit off from the mains supply. -
Page 15: Do's And Don'ts
Mistral M60, M90, M135 Other than regular cleaning the unit requires no maintenance by the end user. It is recommended that the unit is serviced by an IMC approved engineer at least once a year. Details of IMC Service Contracts are available on application. -
Page 16: Ordering Spare Parts
SERIES AND SERIAL NUMBER of the machine. This is to be found inside the cabinet. For installations outside the UK please contact your supplier. For information on IMC spares and service support (if applicable), please call IMC on +44 (0)1978 661155. Alternatively, contact us via email or fax: IMC Service Desk Fax: +44 (0)1978 667766 E-mail: service@imco.co.uk... -
Page 17: M60 Wiring Diagram
Mistral M60, M90, M135 M60 WIRING DIAGRAM... -
Page 18: M90 Wiring Diagram
Mistral M60, M90, M135 M90 WIRING DIAGRAM... -
Page 19: M135 Wiring Diagram
Mistral M60, M90, M135 M135 WIRING DIAGRAM... -
Page 20: Spares Identification Front
Mistral M60, M90, M135 SPARES IDENTIFICATION FRONT... -
Page 21: Spares Identification Rear
Mistral M60, M90, M135 SPARES IDENTIFICATION REAR... -
Page 22: Spare Parts List
Mistral M60, M90, M135 SPARE PARTS LIST Mistral M60 – Series 13 Mistral M90 – Series 13 Part No Description Part No Description A11/278 Door Gasket A11/279 Door Gasket A11/283 Door Gasket (850) A11/285 Door Gasket (850) A11/284 Door Gasket (800) A11/286 Door Gasket (800) A12/073... - Page 23 Mistral M60, M90, M135 Mistral M135 – Series 13 Part No Description A11/279 Door Gasket A11/286 Door Gasket (800) A12/073 Pilaster Strip A12/099 Shelf A12/102 Wine Shelf E76/267 Perforated Shelf LH 135 E76/268 Perforated Shelf RH 135 A12/036 Shelf Clip (6 per shelf) A19/027 Glider Foot A21/011...
-
Page 24: Notes
Mistral M60, M90, M135 NOTES... - Page 25 Mistral M60, M90, M135...
