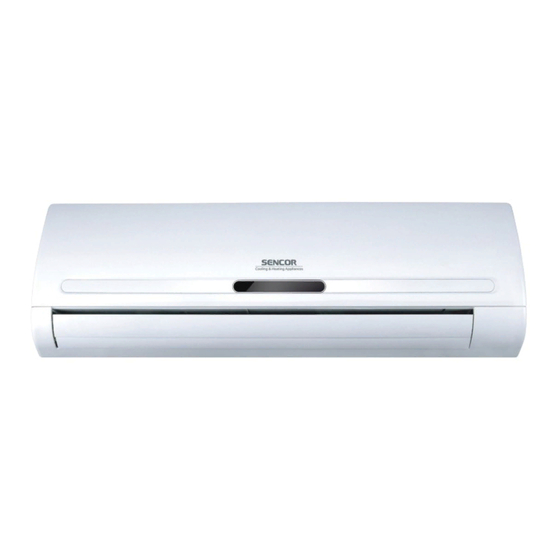

Wall Mounted Split Air Conditioner
Prior to using this air conditioner, please read the user's manual thoroughly, even in cases, when one
has already familiarised themselves with previous use of similar types of appliances. Only use the device
in the manner described in this user's manual. Keep the manual for future use.
Save the original shipping transport box, packaging material, receipt and warranty card for the duration
of the warranty. In the case of transportation, pack the air conditioner using the original packaging
materials only.
Copyright © 2011, Fast ČR, a.s.
User's manual
EN-1
SAC 0910C
SAC 0922CH
12/2011
Advertisement
Table of Contents
Related Manuals for Sencor SAC 0910C
Summary of Contents for Sencor SAC 0910C
- Page 1 Wall Mounted Split Air Conditioner User's manual SAC 0910C SAC 0922CH Prior to using this air conditioner, please read the user's manual thoroughly, even in cases, when one has already familiarised themselves with previous use of similar types of appliances. Only use the device in the manner described in this user's manual.
-
Page 2: Table Of Contents
Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH CONTENTS IMPORTANT SAFETY INSTRUCTIONS ......................3 DESCRIPTION OF THE AIR CONDITIONER ..................... 5 DESCRIPTION OF THE DISPLAY ........................6 HORIZONTAL AIR FLOW DIRECTION ADJUSTMENT ..................7 EMERGENCY OPERATION BUTTON ......................8 CLEANING AND MAINTENANCE ........................ -
Page 3: Important Safety Instructions
Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND STORE FOR FUTURE USE • This device must not be used by persons (including children) with physical or mental impairments or by inexperienced persons, unless properly trained or schooled in the safe use of the device, or unless they have been properly supervised by a qualifi... - Page 4 Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH • Do not use this device for special purposes, e.g. in locations where fi ne mechanics, food, paintings, etc. are stored. These products require a certain humidity and temperature and so their quality could be negatively affected.
-
Page 5: Description Of The Air Conditioner
Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH DESCRIPTION OF THE AIR CONDITIONER Indoor unit Outdoor unit 1 Filter 7 Air inlet 2 Front panel 8 Connecting pipe 3 Air inlet 9 Water drain hose 4 Horizontal air fl ow control defl ector 0 Air outlet 5 Vertical air fl... -
Page 6: Description Of The Display
Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH DESCRIPTION OF THE DISPLAY 1 SLEEP mode 4 Set temperature or room temperature 2 Automatic On/Off timer mode (room temperature is shown in the FAN FAN mode, and DRY modes) -
Page 7: Horizontal Air Flow Direction Adjustment
Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH HORIZONTAL AIR FLOW DIRECTION ADJUSTMENT If the air conditioner is in operation then turn it off using the remote control. Manually open the vertical airfl ow direction defl ector C1 so that it is stopped in the top position. To tilt the horizontal airfl... -
Page 8: Emergency Operation Button
Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH EMERGENCY OPERATION BUTTON Use the emergency operation button in the event that the battery in the remote control goes fl at or if the remote control malfunctions . Verifi cation button – this button may only be used by a service technician. -
Page 9: Cleaning And Maintenance
Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH CLEANING AND MAINTENANCE • Before cleaning the air conditioner, turn it off and disconnect it from the power supply by pulling the power plug out of the power socket or by turning off the circuit breaker. - Page 10 Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH Before putting the air conditioner out of operation for an extended period of time Set the fan to run non-stop for several hours so that the unit is completely dry inside.
-
Page 11: Troubleshooting
Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH TROUBLESHOOTING The following table is a troubleshooting guide. If you are unable to remedy the problem with the help of the following table, please contact a service centre. Problem Analysis of the problem The air conditioner is not working. - Page 12 Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH Problem Analysis of the problem In the heating mode (only for models with a heat • This process takes a maximum of 10 minutes. pump) the indoor fan stops. If the outdoor temperature is low and humidity is high, the air conditioner freezes over.
-
Page 13: Technical Parameters
Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH TECHNICAL PARAMETERS SAC 0922CH SAC 0910C Model (model with a heat pump) Power source V-Hz 220–240 V~ 50 Hz 220–240 V~ 50 Hz Power output 2700 2700 Power input Nominal current EER cooling factor 3.21... -
Page 14: Installation Of The Air Conditioner
Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH Cooling mode indoors 27 °C (DT) 19 °C (WT) outdoors 35 °C (DT) 24 °C (WT) Heating mode indoors 20 °C (DT) 15 °C (WT) outdoors 7 °C (DT) 6 °C (WT) DT –... -
Page 15: Indoor Unit
Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH ILLUSTRATION OF THE INSTALLATION Indoor unit Marking out the installation location using the mounting plate of the indoor unit. The connecting pipe may Note: lead from the rear, the right,... - Page 16 Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH INSTALLING THE INDOOR UNIT Installing the mounting plate Attach a string to the middle hole min. 250 mm min. 140 mm min. 180 mm Hole for the pipe 120 mm...
- Page 17 Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH ELECTRICAL CONNECTION OF THE INDOOR UNIT 1 Terminal of the indoor unit 2 Screw 3 Connecting cable ELECTRICAL CONNECTION OF THE OUTDOOR UNIT 1 Terminal of the outdoor unit 2 Connecting cable EN-17 Copyright ©...
- Page 18 Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH DIAGRAM OF THE ELECTRICAL CONNECTION OF THE INDOOR AND OUTDOOR UNIT 4 R1R2 Model with a heat Model without Model with pump a heat pump a heat pump 1 Brown...
-
Page 19: Instructions And Information Regarding The Disposal Of Used Packaging Materials
Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Take the packaging material to a designated municipal waste facility. DISPOSAL OF USED BATTERIES Batteries contain environmentally damaging compounds and therefore do not belong in standard household waste. - Page 20 Wall Mounted Split Air Conditioner SAC 0910C / SAC 0922CH EN-20 Copyright © 2011, Fast ČR, a.s. 12/2011...
