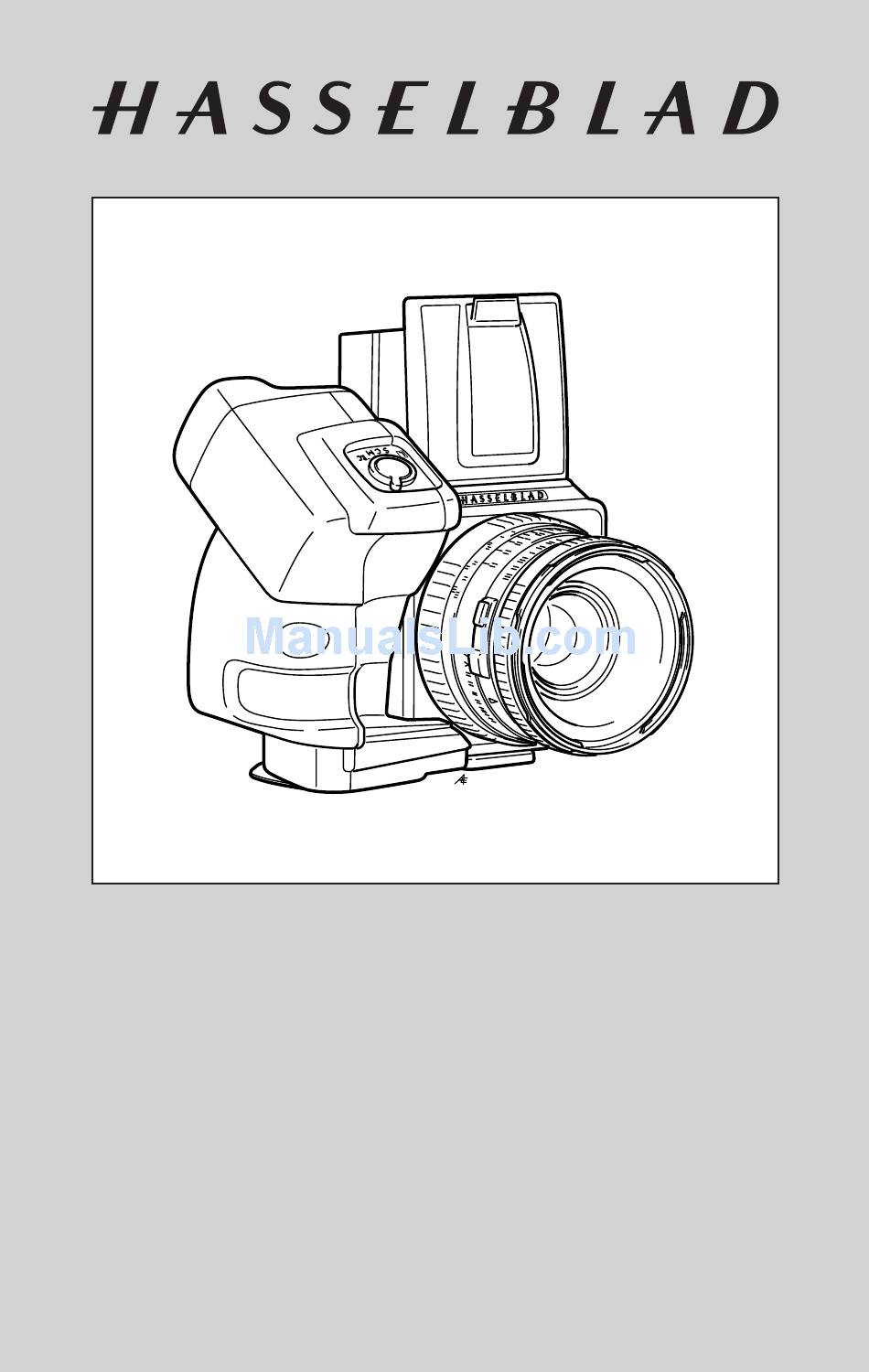

- Page 1 COPYRIGHT © 2000 ANDERS ENGSTR…M ANDERS ENGSTR…M, ILLUSTRAT…R …stra vŠgen 46 501+3..49.eps 430 91 H…N… 001210 tel/fax 031-96 84 64 anders.968464@telia.com Winder CW Instruction Manual Gebrauchsanweisung Brugsanvisning Manual de Instrucciones Manual d’Instructions Manuale d’Istruzioni Gebruiksaanwijzing Manual de Instruções Bruksanvisning Käyttöohjekirja...
-
Page 5: Parts And Components

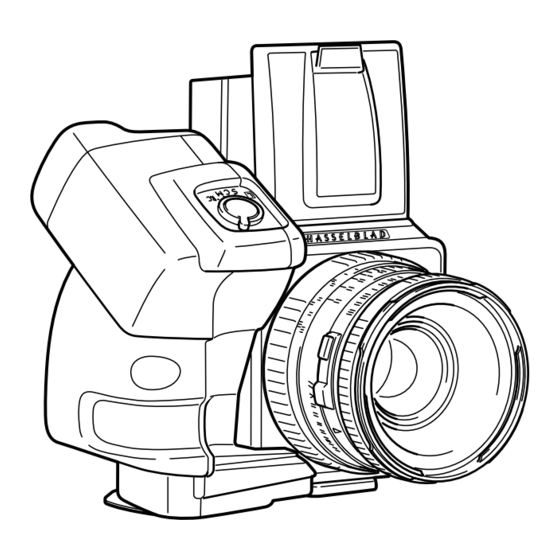

Hasselblad Winder CW The Winder CW (3044105) is a compact, ergonomically designed unit providing not only a motor drive facility but also a comfort- able and robust grip for the 503CW and 503CXi cameras. It features single exposure, continuous exposure, multi-exposure and remote control modes. - Page 6 13. Battery holder 14. Battery holder catch 15. Upper strap lug The Winder CW is supplied with an IR Remote control (3044113) and a wrist strap (3044118). Batteries The winder uses six 1.5V pen cells of ‘AA’ (LR6) type. Under normal...
-
Page 7: Operation Modes
camera is already wound. If the camera was unwound, however, it will now be automatically wound (and an attached loaded film magazine will be advanced by one frame, see note below). Removing the winder Remove the lens. Firmly grip the winder and depress the winder catch with the thumb. -
Page 8: Wrist Strap
= r eMote ontroL For use with the Hasselblad IR Remote Control only. In this position the winder’s modes are selected by way of the IR Remote Control unit and the manual release button on the winder becomes inoperative. As much more current is required in the ‘RC’... - Page 9 A winder can be re-programmed at any time to receive a new code from another IR Remote control simply by repeating the programming pro- cedure with the new control. Restrictions With the winder attached, the following Hasselblad accessories cannot be used: Cable release, Flashgun bracket 1, Quick-focusing handle ...
-
Page 10: Troubleshooting
If the problem persists, the following should also be considered: In certain cases, the Winder CW may fail to wind the camera com- pletely or even not at all, resulting in a locked condition where nei- ther the winder nor the lens can be removed. The situation is sim- ply corrected by depressing and immediately releasing the winder catch. -
Page 11: Points To Remember
If none of the above helps, or the problem recurs, then return the wind- er to a Hasselblad Authorized Service Center for service. Remember that in some cases (see above) the fault might originate in the camera or magazine mechanisms and so they too should be included in the service check. -
Page 12: Technical Specifications
Remove the batteries if you do not intend to use the winder for � several weeks or longer. Technical Specifications ompatibility Hasselblad 503CW and 503CXi odes Single exposure, continuous exposure, multiple exposure, remote control, lock/off inding speeds 1.4 sec, approximately 0.7 frames/sec in continuous mode attery requirement 6 x 1.5V AA pen cells (LR6). - Page 13 Code article: Cod: Artikelnr: Número do Producto: Produkt nr: Tuotenumero: 3044105 Hasselblad reserve the right to make chang- es in the published specifications without prior notice. All rights reserved. No part of this material may be reproduced, stored in a retrieval sys-...
