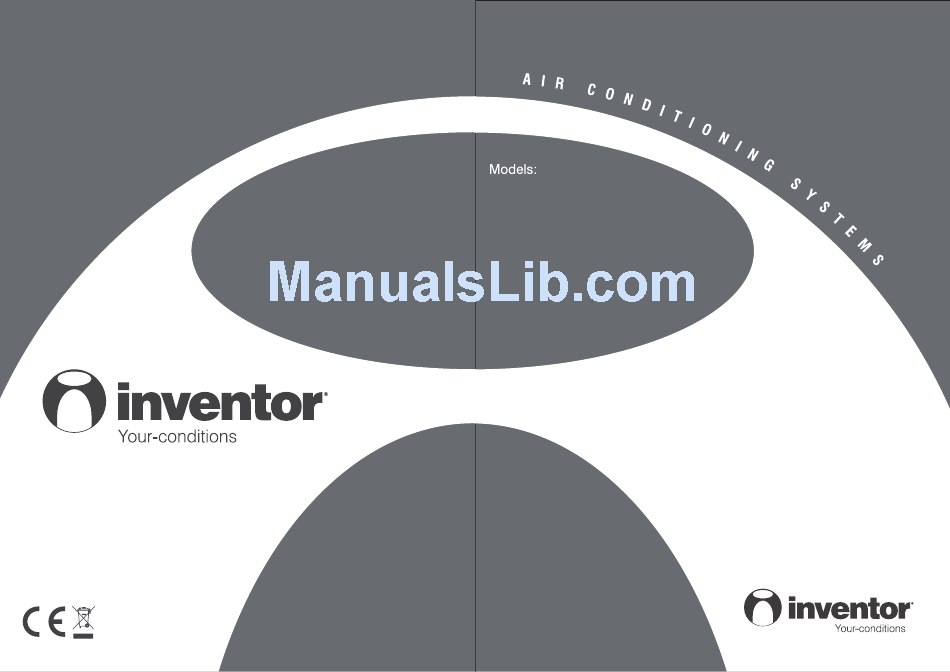

- Page 1 V3MFI-24 / V3MFO-24 Floor Standing Unit User’s Manual English Thank you for choosing INVENTOR air conditioning system. For correct use of this unit, please read this manual carefully and keep it for future reference.
-
Page 2: Table Of Contents
CONTENTS SOCIABLE REMARK Sociable remark.........................2 SAFETY PRECAUTIONS Warning ............................3 Caution .............................4 Prior to operation ........................5 Operating temperature ......................5 OPERATIING INSTRUCTIONS Product overview ........................6 Unit control panel ........................7 Airflow direction control ......................10 Operation tips ..........................11 CARE AND MAINTENANCE Cleaning the indoor unit ......................12 Cleaning the air outlet ......................13 Cleaning the air inlet grille and air filter ..................13 TROUBLESHOOTING TIPS... -
Page 3: Sociable Remark
SOCIABLE REMARK The follow contents apply only the countries of Europe. DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. It is prohibited to dispose of this appliance in domestic household waste. For disposal, there are several possibilities: A) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. This symbol indicates the possibility of death or serious injury. -
Page 5: Caution
SAFETY PRECAUTIONS ! CAUTION When the air filter is to be Do not clean the air Ventilate the room well conditioner with water. when used together removed, do not touch the with a stove, etc. metal parts of the unit. An oxygen shortage It may cause an injury. -
Page 6: Prior To Operation
SAFETY PRECAUTIONS Prior to operation 1. Contact an installation specialist for installation. 2. Make sure the unit is grounded efficiently. 3. Do not use a damaged or non-standard power cord. 4. Do not share the same outlet with other appliances. 5. -
Page 7: Operatiing Instructions
OPERATING INSTRUCTIONS Product Overview Outdoor unit Indoor unit Drain pipe, vent pipe Air outlet Connection cable Operation panel Connection pipe Horizontal airflow control louver Refrigerant pipe port Vertical airflow control louver Air outlet Remote controller holder(on some models) Air inlet(2 sides) T2 T3 T4 All the pictures in this manual are for explanation purpose only. -
Page 8: Unit Control Panel
OPERATING INSTRUCTIONS Unit Control Panel Indicators Room Temp /Set Temp Auto operation display /Set Timer Cooling operation display display Dry operation display Fan speed Heating operation display operation display Fan operation display Vertical airflow display(optional) Horizontal airflow display Sleep operation display Turbo operation display(optional) Off timer operation display On timer operation display... - Page 9 OPERATING INSTRUCTIONS NOTE: You can not select a fan speed under AUTO and DRY mode. The fan motor operates at pre-set AUTO speed under AUTO mode and at LOW speed under DRY mode. FAN speed display: The display is separated into 3 zones. When setting the speed, the corresponding zone will illuminate.
- Page 10 OPERATING INSTRUCTIONS 5. Under malfunction condition: Press the to check the malfunction code E1, E2, E3 , E4, E7, E8 and Ed ( details refer to TROUBLESHOOT in page 12 ). It displays dF while defrosting. 6. Under any of the above circumstance, if keep pressing the without releasing, the rate of adjustment is 4 times a second.
-
Page 11: Airflow Direction Control
OPERATING INSTRUCTIONS Turbo operation (on some models): When select this function in cooling mode, the fan motor will operate at super high fan speed and the set temperature will reach in the shortest time. After half an hour, the fan speed will revert back to the previous set fan speed. The fan speed can be adjusted under Turbo operation. -
Page 12: Operation Tips
OPERATING INSTRUCTIONS Operation Tips Note: The starting angle of the horizontal louver should not be too small, otherwise the narrow air outlet will affect cooling or heating efficiency. Do not set the starting angle of the louvers too small during cooling or drying operation. Otherwise, condensation may occur on the surface of the horizontal louver and cause dew dripping. -
Page 13: Care And Maintenance
CARE AND MAINTENANCE 6. The air conditioner turns to Fan Mode from COOL or HEAT (For cooling and heating models only) Mode. When indoor temperature reaches the temperature setting on air conditioner, the compressor will stop automatically, and the air conditioner turns to Health mode. The compressor will start again when the indoor temperature rises on COOL mode or falls on HEAT mode (For cooling and heating models only) to the set point. -
Page 14: Cleaning The Air Outlet
CARE AND MAINTENANCE Cleaning the air outlet: After using for a period, the air outlet and louvers will become dirty. It is recommended to dip a soft cloth into warm water or a mild kitchen cleanser, ring it out, then wipe any soiling from the unit. After, wipe with a dry cloth. -
Page 15: Troubleshooting Tips
TROUBLESHOOTING TIPS Before calling for service, please review the following list of common problems and solutions. Solutions Problem Possible Cause Wait for power restoring Power failure The power supply is disconnected. Switch on the main power switch Air conditioner does not The power fuse is blown.
