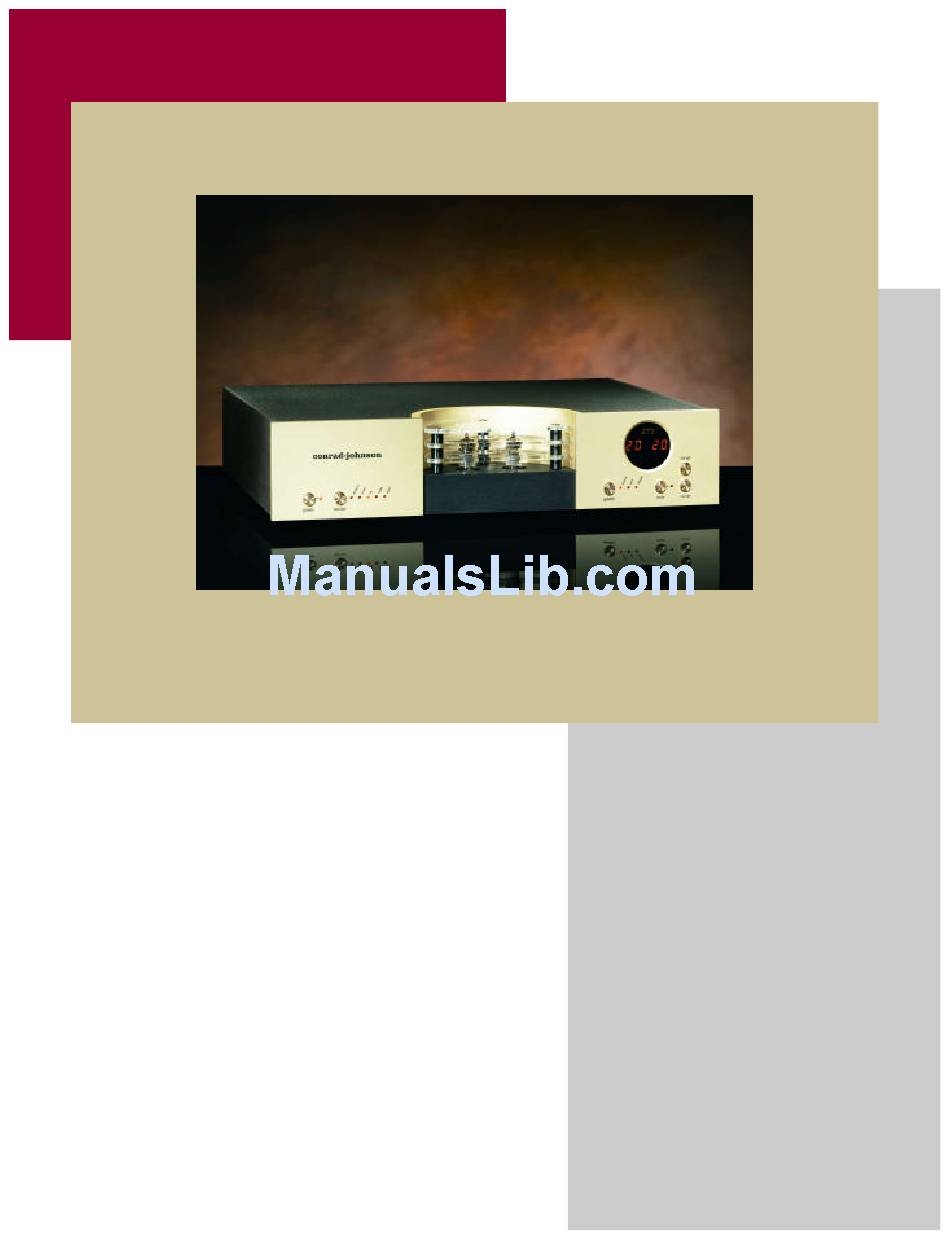

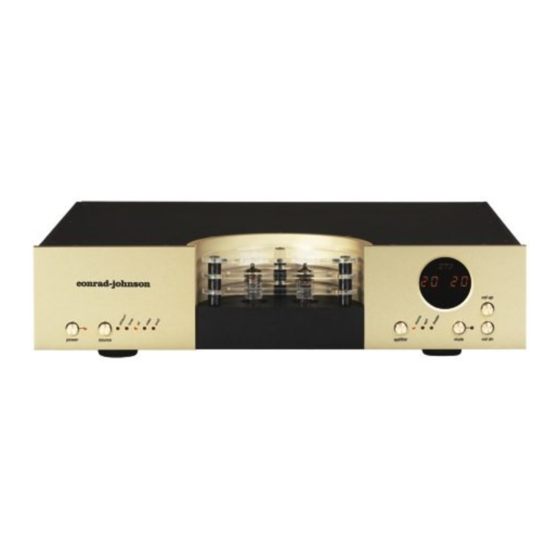

- Page 1 Conrad-Johnson Owner’s Manual ET2 Vacuum-Tube Preamplifier conrad-johnson It just sounds right.
- Page 2 Thank you for selecting the ET2 vacuum-tube preamplifier as the control center for your audio system. Using it, we believe that you will hear more from your favorite recordings than ever before. Drawing on nearly three decades of research at conrad-johnson...
- Page 3 Warranty For Conrad-Johnson Components Conrad-Johnson Design, Inc. will provide service under warranty to the original owner on products sold new in the United States for the lesser period of three years from the date of purchase by the origi- nal purchaser, or five years from the date of shipment to the au- thorized conrad-johnson dealer.
- Page 4 Service Department. Questions about this warranty should be addressed to: Service Department conrad-johnson design, inc. 2733 Merrilee Drive Fairfax, VA 22031 The conrad-johnson service department can also be reached by e- mail at service@conradjohnson.com, by phone at 703-698-8581,...
-
Page 5: Electromagnetic Interference (Emi)
nstallation The ET2 dissipates approximately 20 watts of heat, and must be adequately ventilated. Mount the unit horizontally on a flat, hard surface, and take care that the ventilation holes in the bottom are unobstructed. Allow at least two inches of clearance above the unit and keep the cabinet or shelf open at the back. - Page 6 Physical location and cable “dress” can be an important factor in minimizing hum pickup. The installation should situate the pream- plifier well away from the power amplifier, and power (ac mains) cords should be dressed to remain at least 4" (100mm) away from input/output cables.
- Page 7 onnection SOURCES (TUNER, CD, VIDEO, AUX2): These high level inputs are electrically equivalent. These inputs present a 13.5 kOhm load to the source. Connect the corresponding source components to these inputs. PH/AUX1: If the optional phono stage is installed, this input pro- vides the extra gain and RIAA equalization required for playback of LPs.
- Page 8 ontrols <power>: Press the switch labeled power to switch the preampli- fier on. A time delay auto-muting circuit is incorporated into the ET2 to suppress turn-on/turn-off transients. All outputs are grounded via relays for approximately 45 seconds after the unit is turned on in o rder to suppress warm-up transient noises.
-
Page 9: Remote Control
Remote Control All operations of the ET2 can be controlled by the wireless remote unit. MUTE: Pressing the mute button will cause the main outputs to mute and the level display to be zero. Pressing it again will restore the last level setting. Pressing and holding the mute button for more than three seconds will switch the ET2 into standby mode (all tube circuitry switched off). - Page 10 Therefore, we highly recommend that you purchase replacement tube sets from conrad-johnson design. We anticipate tube life to accommodate two to three years of operation without degradation in normal use - if the preamplifier is switched off when not in use.
-
Page 11: Absolute Phase
etting The Most From Your ET2 In a system of commensurate high quality components, the conrad-johnson ET2 offers an unparalleled level of sophistication and refinement in music reproduction. To get the best performance out of any audio system, there are a number of important details that must be attended to. - Page 12 The Importance Of Wires Interconnect and speaker wires are an important element in your stereo system. Interconnects are available which will permit a ref- erence quality system to blossom and fulfill its promise of musical reality. Others will strangle the system to t h e point where it b e- comes little better than average.
- Page 13 pecifications Line Stage Gain: 28 dB Maximum Output: 5.5 Vrms Bandpass: 2Hz to more than 100kHz Hum and Noise: 95 dB below 2.5V output Distortion at 1.0 V output: less than .1% THD or IMD Phase: inverts phase of all inputs (including phono) at main out Ouput Impedance: 200 ohms Mechanical Dimensions: 16.125"D x 19"W x 4.625"H...
