- Page 1 Conrad-Johnson Owner’s Manual: CAV45 Control Amplifier conrad-johnson It just sounds right.

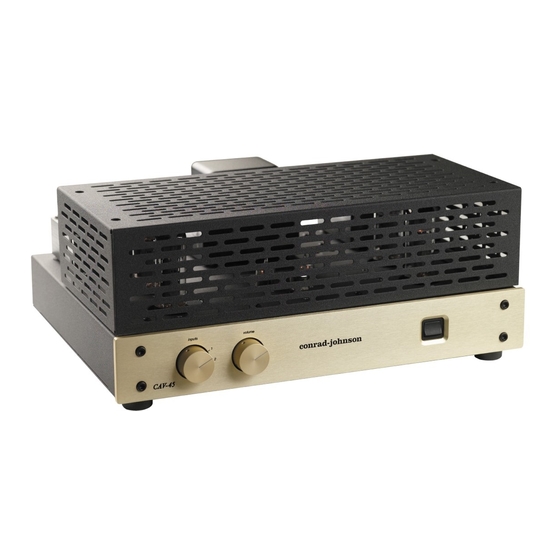

- Page 2 Thank you for selecting the CAV45 control amplifier as the control center and power amplifier for your audio system. The CAV45 draws on three decades of research at conrad-johnson into the reproduction of recorded music. The result is a control amplifier with a remarkable ability to recreate the dynamics, textures, tonalities, and ambience of live musical performances.
- Page 3 Warranty For Conrad-Johnson Components Conrad-Johnson Design, Inc. will provide service under warranty to the original owner on products sold new in the United States for the lesser period of three years from the date of purchase by the original purchaser, or five years from the date of shipment to the authorized conrad-johnson dealer.
- Page 4 Service Department. Questions about this warranty should be addressed to: Service Department conrad-johnson design, inc. 2800K Dorr Avenue Fairfax, VA 22031 The conrad-johnson service department can also be reached by e- mail at service@conradjohnson.com, by phone at 703-698-8581,...
-
Page 5: Electromagnetic Interference (Emi)
The cabinet should be open at front and back. For more restricted installations, cooling fans are recommended. The CAV45 is supplied with a cover to provide protection from the hot surfaces of the vacuum-tubes. It should always be used in installations where there is any possibility that children or pets may come near the amplifier. - Page 6 Relative phase may be reversed by switching the "+" and "-" leads at one speaker only. ontrols <power>: Rocker switch to power the CAV45 on. <selector>: Use this rotary switch to select between the three available high-level inputs.
- Page 7 Tube Replacement The CAV45 uses seven vacuum tubes of three different types: one type 6922 (V1), two type 5965 (V2 and V3), and four type EL34 (V4 through V7). The brands of tubes we supply have been chosen by first selecting those brands which are known to be most reliable, then by extensive auditioning of these acceptable brands with the final choices being made solely on the basis of sonic performance.
- Page 8 PLATE FUSE: Your CAV45 has been fitted with plate supply fuses that are installed to protect the amplifier circuitry in the event of output tube failure.
-
Page 9: Absolute Phase
This will be the case if the number of phase inversions is even (or zero). The CAV45 is phase correct (non-inverting). If your system has an odd number of inversions, (if you have a phase inverting source) then you must add one phase inversion. - Page 10 The warm up period can be expected to last about fifteen minutes. Questions: If you have questions about the installation or function of your CAV45 do not hesitate to call Customer Service at (703) 698-8581. CAV45 Owner’s Manual...
- Page 11 Dimensions: 13.375"D x 17.375”W x 6.625”H Net Weight: 42 lb Fuses The CAV45 power transformer is protected by a fuse on the ac power line (F1, located in a compartment in the ac line-cord receptacle mounted on the back of the amplifier), and by four separate internal fuses on the secondary circuits of the transformer (F2 –...
