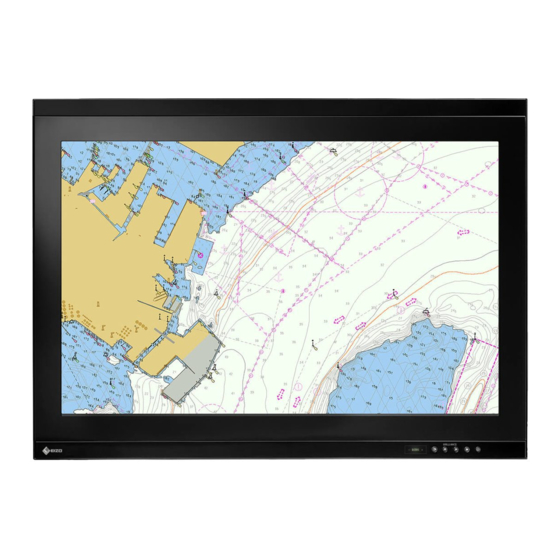

Eizo FDS1904 User Manual

Hide thumbs Also See for FDS1904:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Setup Manual
User's Manual
Color LCD Monitor
Touch Panel Color LCD Monitor
Important
Please read this User's Manual, and the Setup Manual (separate
volume) carefully to familiarize yourself with safe and effective usage.
• Please refer to the Setup Manual for basic information ranging from
monitor installation to using the monitor.
• The latest User's Manual is available for download from our web site:
www.eizoglobal.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDS1904 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eizo FDS1904

Summary of Contents for Eizo FDS1904

  • Page 1 User’s Manual Color LCD Monitor Touch Panel Color LCD Monitor Important Please read this User’s Manual, and the Setup Manual (separate volume) carefully to familiarize yourself with safe and effective usage. • Please refer to the Setup Manual for basic information ranging from monitor installation to using the monitor.
  • Page 2 EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.

  • Page 3: Notice For This Monitor

    The backlight of the LCD panel has a fixed lifetime. When the screen becomes dark or begins to flicker, please contact your local EIZO representative. Do not scratch or press on the panel with any sharp objects, as this may result in damage to the panel. Do not attempt to brush with tissues as this may scratch the panel.

  • Page 4: Cleaning

    Cleaning Attention • Chemicals such as alcohol and antiseptic solution may cause gloss variation, tarnishing, and fading of the panel, and also quality deterioration of the image. • Never use any thinner, benzene, wax, and abrasive cleaner, which may damage the panel. •...

  • Page 5: Table Of Contents

    4-3. Setting Touch Sound ........27 1-1. Features ............6 Chapter 5 Power Saving Functions ....28 1-2. EIZO LCD Utility Disk........7 ● 5-1. Setting Power Saving ......... 28 Disk contents and software overview ..... 7 5-2. Setting the automatic power off function 29 1-3.

  • Page 6: Chapter 1 Introduction

    Chapter 1 Introduction Thank you very much for choosing an EIZO color LCD monitor. 1-1. Features • 19.0″ LCD (FDS1904/FDS1904T) • 25.5″ LCD (FDU2603W/FDU2603WT) Provides a display area (vertical: over 340 mm) required for radar on large ships. • Applicable to the resolution of 1280 × 1024. (FDS1904/FDS1904T) •...

  • Page 7: Eizo Lcd Utility Disk

    1-2. EIZO LCD Utility Disk An “EIZO LCD Utility Disk” (CD-ROM) is supplied with this product. The following table shows the disk contents and the overview of the software programs. ● Disk contents and software overview The disk includes adjustment software, touch panel software, and user’s manuals. Refer to Readme.

  • Page 8: Basic Operations And Functions

    1-3. Basic Operations and Functions ● Basic Adjustment menu operations Note • The language is set to English in the default settings. To change the language, please refer to “3-2. Setting Language” (page 19). Displaying Adjustment Menu 1. Press . The Adjustment menu appears. Menu title Current display mode Item...

  • Page 9: Showing Button Guide

    Exiting 1. Press a few times. The Adjustment menu finishes. ● Showing button guide Press the front buttons other than , and the button guide appears above the button. BRILLIANCE Note • The Button Guide will continue to appear while the Adjustment menu is showing. •...

  • Page 10: Functions

    ● Functions The following table shows all the Adjustment menu’s adjustment and setting menus. Main menu Setting Reference Color “2-3. Adjusting Color” (page 15) Brilliance Temperature Gamma Advanced Settings Saturation Outline Enhancer Gain “3-9. Return To Default Setting” (page 23) Color Reset Screen “2-4.

  • Page 11: Chapter 2 Adjusting Screens

    Chapter 2 Adjusting Screens 2-1. Setting the Resolution ● Display resolution For details on compatible resolutions, refer to “Compatible Resolutions” in the Setup Manual. ● Setting resolution When you connect the monitor to the PC and find that the resolution is improper, or when you want to change the resolution, follow the procedure below.

  • Page 12: Digital Signal Input

    2-2. Displaying Screen Correctly ● Digital Signal Input When digital signals are input, images are displayed correctly based on the preset data of the monitor. When performing advanced adjustment, see “2-3. Adjusting Color” (page 15) and subsequent pages. ● Analog Signal Input Attention •...
  • Page 13 Setting Procedures Prepare to use analog screen adjustment patterns. Load the “EIZO LCD Utility Disk” to your PC, and then open the “Screen adjustment pattern files”. Note • For details and instructions on opening the “Screen adjustment pattern files”, refer to the Readme.txt file.
  • Page 14 ● To remove flickering or blurring Procedure 1. Choose “Phase” from the “Analog Adjustment” menu, and press 2. Adjust the phase with to minimize flickering or blurring. 3. Press to exit the adjustment. Attention • Flickering or blurring may not be eliminated depending on your PC or graphics board. ●...

  • Page 15: Adjusting Color

    Adjusting color gradation. ● To adjust color gradation automatically Every color gradation (0 to 255) can be displayed by adjusting the signal output level. Procedure 1. Display Pattern 2 in full screen on the monitor using the “Screen adjustment pattern files”. 2.

  • Page 16: To Adjust Color Temperature

    ● To adjust color temperature The color temperature can be adjusted. The color temperature is normally used to express the hue of “White” and/or “Black” by a numerical value. The value is expressed in degrees “K” (Kelvin). The screen becomes reddish at a low color temperature, and bluish at a high color temperature, like the flame temperature.

  • Page 17: To Adjust Color Saturation

    ● To adjust color saturation This function allows you to adjust color saturation. Adjustable range -100 to 100 Procedure 1. Choose “Color” from the Adjustment menu, and press 2. Choose “Advanced Settings” from “Color”, and press 3. Choose “Saturation”, and press 4.

  • Page 18: Selecting Screen Size

    Displays an image in full screen. In some cases, a blank horizontal or vertical border appears to equalize the vertical rate and the horizontal rate. Normal Displays images with the specified resolution. Example: Image size 1024 × 768 Full Enlarged Normal FDS1904/FDS1904T: (1280×1024) (1280×960) (1024×768) FDU2603W/FDU2603WT: (1920×1200) (1600×1200) (1024×768) Procedure 1.

  • Page 19: Chapter 3 Setting Monitor

    Chapter 3 Setting Monitor 3-1. Setting Brightness of Front Button The brightness of the front buttons (control button and power button) can be set. Attention • They are set to light up under the following condition, and are set to “4” by default. - Power button: When the power cord is connected to the power outlet.

  • Page 20: Setting The Adjustment Menu Orientation

    3-4. Setting the Adjustment Menu orientation When the monitor is set to the portrait display mode, the orientation of the Adjustment Menu can be changed as well. Default setting: Landscape Procedure 1. Press for five seconds or more to turn off the monitor. 2.

  • Page 21: Locking Buttons

    Function When “Brilliance” is set to the lower limit value, the backlight is turned off to darken the screen. (However, this excludes when the Adjustment menu, “Signal Error”, or the EIZO logo are displayed) Even when “Brilliance” is set to the lower limit value, the screen is not darkened.

  • Page 22: Turning The Ecdis Indicator On/Off

    3-8. Turning the ECDIS Indicator ON/OFF The ECDIS Indicator will light up when this setting is set to ON. Please use this as a guide to adjust the monitor brightness. ECDIS Indicator Monitor status The monitor brilliance is set to the ECDIS adjustment value. The monitor brilliance is set higher than the ECDIS adjustment value.

  • Page 23: Return To Default Setting

    3-9. Return To Default Setting There are two different Resets: Color Reset for only resetting the color adjustments to the default settings and All Reset for resetting all settings to the defaults. There is also a function to reset the screen brightness to the default value.

  • Page 24: Chapter 4 Touch Panel Settings (Fds1904T/Fdu2603Wt)

    Chapter 4 Touch Panel Settings (FDS1904T/FDU2603WT) This chapter explains the settings for when the FDS1904T/FDU2603WT is used in an environment that satisfies the following conditions. • The PC and monitor are connected with a USB cable • The OS is Windows 8.1 / Windows 8 / Windows 7 Attention •...
  • Page 25 Click “Hardware and Sound” - “Tablet PC Settings”. “Tablet PC Settings” window appears. Click “Setup” in the “Display” tab. A touchscreen specification screen with a white background is displayed. Attention • If using the monitor in a multiple monitor environment, specify the touchscreen according to the message displayed on screen.

  • Page 26: Configuring Touch Panel Operation Settings

    4-2. Configuring Touch Panel Operation Settings Open the Windows Control Panel. The method for opening the Control Panel differs depending on the OS (see page 24). Click “Hardware and Sound” - “Pen and Touch”. “Pen and Touch” window appears. Configure the touch panel operation settings in the “Pen and Touch” window. For detailed settings, refer to the settings on each tab and Windows Help.

  • Page 27: Setting Touch Sound

    4-3. Setting Touch Sound The sound output when the screen is touched can be changed or turned off. Open the Windows Control Panel. The method for opening the Control Panel differs depending on the OS (see page 24). Click “Hardware and Sound” - “Sound” - “Change system sounds”. “Sound”...

  • Page 28: Chapter 5 Power Saving Functions

    Chapter 5 Power Saving Functions 5-1. Setting Power Saving This function allows you to set the monitor into the power saving mode according to the PC status. When the monitor has shifted to the power saving mode, the images on the screen are not displayed. Attention •...

  • Page 29: Setting The Automatic Power Off Function

    5-2. Setting the automatic power off function This function allows you to specify whether to turn on/off the monitor automatically after a specified time has elapsed in the power saving mode. Adjustable range Off, 0, 1, 2, 3, 4, 5, 10, 15, 20, 25, 30, 45 min, 1, 2, 3, 4, 5 h Procedure 1.

  • Page 30: Chapter 6 Troubleshooting

    Chapter 6 Troubleshooting If a problem still remains after applying the suggested remedies, contact your EIZO representative. 6-1. No picture Problem Possible cause and remedy 1. No picture • Check whether the power cord is connected properly. • None of the operation buttons light up.

  • Page 31: Imaging Problems (For Both Digital And Analog)

    6-2. Imaging problems (for both digital and analog) Problem Possible cause and remedy 1. The screen is too bright or too dark. • Use “Brilliance” in the Adjustment menu to adjust it. (The LCD monitor backlight has a limited life span. When the screen becomes dark or begins to flicker, contact your local dealer.) 2.

  • Page 32: Imaging Problems (For Analog Only)

    6-3. Imaging problems (for analog only) Problem Possible cause and remedy 1. Display position is incorrect. • Use “Position” in the Adjustment menu to correct the image position (see “To correct the screen position” (page 14)). • If the problem persists, use the graphics board’s utility if available to change the display position.

  • Page 33: Touch Panel Problems (For Fds1904T/Fdu2603Wt Only)

    6-5. Touch panel problems (for FDS1904T/FDU2603WT only) Problem Possible cause and remedy 1. Touch operation is disabled. • Check that the monitor and PC are connected with a USB or RS-232C cable. • Turn off and on the monitor. • Check that the power cord of the monitor and PC is connected to a grounded main outlet.
  • Page 34 Problem Possible cause and remedy 5. (If the OS being used is Windows 8.1 / • Reset the touch panel to the state before calibration (by Windows 8 / Windows 7) clicking “Reset” in the “Display” tab of the “Tablet PC Calibration does not work correctly.

  • Page 35: Chapter 7 Reference

    Chapter 7 Reference 7-1. Connecting Multiple PCs The product has multiple connections to PCs and allows you to switch to one of the connections for display. Attention • It is assumed the touch panel monitor will be used with one computer. When the monitor is to be connected to multiple computers, connect a RS-232C cable to the computer used for touch operation (one unit only).

  • Page 36: To Switch Among Input Signals

    ● To switch among input signals Procedure 1. Choose “Tools” from the Adjustment menu, and press 2. Choose “Input” from “Tools”, and press 3. Select “D-SUB” or “DVI” with 4. Press to exit. ● To set input signal selection Setting Function Auto The monitor recognizes the connector through which PC signals are input.

  • Page 37: Displaying Monitor Information

    7-2. Displaying monitor information ● Displaying signal information This function displays the information about the current input signals displayed. Procedure 1. Choose “Tools” from the Adjustment menu, and press 2. Choose “Signal Info” from “Tools”, and press The “Signal Info” appears. (Example) ●...

  • Page 38: How To Replace The Cooling Fan

    The cooling fan in this product can be replaced according to the following procedure. Attention • Be sure to follow the procedure when replacing the fan. Note that EIZO Corporation assumes no responsibility for any damages caused due to improper handling of this product.
  • Page 39 1. Disconnect the cables connected to the monitor. 2. Remove the four screws that secure the fan. Attention • Make sure to hold the connector when removing the cable. Pulling on the cable may damage the connector. Connector FDS1904/FDS1904T Connector Connector FDU2603W/FDU2603WT Chapter 7 Reference...
  • Page 40 39) (recommended torque: 8.0 ± 2kgf•cm/ 0.78 ± 0.2 N•m). 2. Connect the cable to the monitor. Securely connect the connector to the monitor. Connector Orient the label surface outwards FDS1904/FDS1904T Orient the label surface outwards Connector Connector FDU2603W/FDU2603WT Chapter 7 Reference...
  • Page 41 Fix the cover to the monitor using the screws removed in step 2 (page 38). Attention • Orient the air outlets downwards when installing the cover. Air outlets FDS1904/FDS1904T Air outlets FDU2603W/FDU2603WT Install the monitor into the enclosure. Chapter 7 Reference...

  • Page 42: Specifications

    7-4. Specifications ● FDS1904/FDS1904-OP LCD Panel Type Backlight Size 48 cm (19.0 inch) (48.1 cm diagonal) Native Resolution 1280 dots × 1024 lines Display Size (H x V) 376.3 mm × 301.0 mm Pixel Pitch 0.294 mm Display Colors Approx. 16.77 million colors Viewing Angles 178˚...
  • Page 43 Transportation/ Temperature -20˚C to 60˚C Storage Humidity 10% to 92% R.H. (no condensation) Environmental Requirements Viewing distance (Recommended) 1014 mm or more (*Based on IEC 62288) Protection structure Front: IP65, Rear: IP22 (Landscape only) Chapter 7 Reference...

  • Page 44: Fds1904T/Fds1904T-Op

    ● FDS1904T/FDS1904T-OP LCD Panel Type Backlight Size 48 cm (19.0 inch) (48.1 cm diagonal) Resolution 1280 dots × 1024 lines Display Size (H x V) 376.3 mm × 301.0 mm Pixel Pitch 0.294 mm Display Colors Approx. 16.77 million colors Viewing Angles 178˚...
  • Page 45 Power supply Input Rating AC 100 - 240 V (Operating: AC 85 V - 264 V), 50/60 Hz, 0.65 A - 0.3 A Rating DC +24 V (Operating: +30%/-10%), 2.7 A (DC 24 V) Maximum Power 64 W or less Consumption Power 9.0 W or less...

  • Page 46: Fdu2603W/Fdu2603W-Op

    ● FDU2603W/FDU2603W-OP LCD Panel Type Backlight Size 65 cm (25.5 inch) (64.8 cm diagonal) Native Resolution 1920 dots × 1200 lines Display Size (H x V) 550.0 mm × 343.8 mm Pixel Pitch 0.2865 mm Display Colors Approx. 16.77 million colors Viewing Angles (H / 176˚...

  • Page 47: Fdu2603Wt/Fdu2603Wt-Op

    ● FDU2603WT/FDU2603WT-OP LCD Panel Type Backlight Size 65 cm (25.5 inch) (64.8 cm diagonal) Native Resolution 1920 dots × 1200 lines Display Size (H x V) 550.0 mm × 343.8 mm Pixel Pitch 0.2865 mm Display Colors Approx. 16.77 million colors Viewing Angles 176˚...

  • Page 48: Main Default Settings

    10% to 90% R.H. (no condensation, wet bulb temperature ≤ 39 °C) Environmental Requirements Viewing distance (Recommended) 988 mm or more (*Based on IEC 62288) Protection structure Front: IP65, Rear: IP22 Main Default Settings Brilliance FDS1904/FDS1904T 1-Custom: 100% (255/255) 2-Day: 65% (166/255) 3-Dusk: 56% (144/255) 4-Night: 11% (28/255)

  • Page 49: Outside Dimensions

    Outside Dimensions ● FDS1904 / FDS1904T Unit: mm 26.34 26.34 74.5 4 376.32 (for FDS1904T only) ● FDU2603W / FDU2603WT Unit: mm 15.5 15.5 Display area M6×8 (for FDU2603WT only) Chapter 7 Reference...

  • Page 50: Pin Assignment

    ● Pin Assignment D-Sub mini 15-pin connector 8 7 6 Pin No. Signal Pin No. Signal Pin No. Signal Red Video Red Video Ground Ground Green Video Green Video Ground Data (SDA) Blue Video Blue Video Ground H.Sync Ground V.Sync Ground Clock (SCL) (NC: Not connected)
  • Page 51 RS-232C port • D-Sub 9-pin (female, for monitor control) Pin No. Signal Pin No. Signal Pin No. Signal Attention • The monitor is the DCE side. • Use a straight-through cable (male to female) to connect with the PC. • D-Sub 9-pin (male, for touch panel control) Pin No.

  • Page 52: Preset Timing

    • If a signal other than those listed in the table is input, adjust the screen using the Adjustment menu. However, screen display may still be incorrect even after the adjustment. • When interlace signals are used, the screen cannot be displayed correctly even after screen adjustment using the Adjustment menu. FDS1904/FDS1904T Frequency Resolution Dot Clock: MHz...

  • Page 53: Chapter 8 Glossary

    Chapter 8 Glossary Clock The analog signal input monitor needs to reproduce a clock of the same frequency as the dot clock of the graphics system in use, when the analog signal is converted to a digital signal for image display.

  • Page 54: Range Adjustment

    The LCD panel consists of numerous pixels of specified size, which are illuminated to form images. This monitor consists of horizontal 1280 pixels and 1024 vertical pixels (FDS1904/FDS1904T), or horizontal 1920 pixels and 1200 vertical pixels (FDU2603W/FDU2603WT). At a resolution of 1280 ×...

  • Page 55: Appendix

    Kensington and MicroSaver are registered trademarks of ACCO Brands Corporation. EIZO, the EIZO Logo, ColorEdge, DuraVision, FlexScan, FORIS, RadiCS, RadiForce, RadiNET, Raptor, and ScreenManager are registered trademarks of EIZO Corporation in Japan and other countries. ColorNavigator, EcoView NET, EIZO EasyPIX, EIZO ScreenSlicer, i • Sound, Screen Administrator, and UniColor, and Re/Vue are trademarks of EIZO Corporation.

  • Page 56: Testing Standard

    Testing Standard This product complies with the IEC60945 4th edition standard. Equipment category: b) protected from the weather Type approval of ship classification This product is pending approval for the following types of ship classifications. - NK (Nippon Kaiji Kyokai) DNV (Det Norske Veritas) - ABS (American Bureau of Shipping) - LR (Lloyd’s Register of Shipping) * For the latest information on approvals for ship classifications, please refer to our website.

  • Page 57: Limited Warranty

    Original Purchaser or any third parties other than as provided under this Warranty. EIZO and Distributors will cease to hold or store any parts of the Product upon expiration of ten (10) years after the production of such parts is discontinued. In repairing the monitor, EIZO and Distributors will use renewal parts which comply with our QC standards.
  • Page 58 Haftung oder Verpfl ichtung dem Erstkäufer oder Dritten gegenüber. EIZO und seine Distributoren halten im Produkt verbaute Teile für einen Zeitraum von zehn (10) Jahren vorrätig, nachdem die Produktion dieser Bauteile eingestellt wurde. EIZO und seine Vertriebspartner verpflichten sich, bei einer etwaigen Reparatur des Monitors ausschließlich Produkte gemäß...
  • Page 59 à toute autre personne à l’exception de celles stipulées dans la présente Garantie. EIZO et ses distributeurs cesseront de conserver ou d’entreposer toute pièce du produit au terme d’un délai de dix (10) ans à compter de l’arrêt de la production des pièces concernées. Pour réparer le moniteur, EIZO et ses distributeurs utiliseront des pièces de rechange conformes à...
  • Page 60 (en lo sucesivo el “Comprador original”) que compró el producto especifi cado en este documento (en riferimento da lo sucesivo el “Producto”) a EIZO o a sus Distribuidores, que EIZO y sus Distribuidores, a su propio criterio, repararán originale”) ch o sustituirán el Producto de forma gratuita si el Comprador original detecta dentro del periodo de la Garantía (indicado...

  • Page 61: Garanzia Limitata

    GARANZIA LIMITATA EIZO Corporation (a cui si farà riferimento da qui in poi con “EIZO”) ed i Distributori autorizzati da EIZO (a cui si farà riferimento da qui in poi con “Distributori”) garantiscono, secondo i termini di questa garanzia limitata (a cui si farà...
  • Page 62 Garantin är endast giltig i de länder där det finns Distributörer. Garantin begränsar inte några av den Ursprunglige köparens lagstadgade rättigheter. Oavsett andra villkor i denna garanti ska inte EIZO Distributörer under några villkor ha något ansvar i något av de fall som beskrivs nedan: (a) När någon bristfällighet hos Produkten kan härledas till att ha uppstått vid frakt, modifiering, ändring, felaktigt...
  • Page 63 «Εγγύηση»), στον αρχικό αγοραστή (στο εξής «Αρχικός Αγοραστής») ο οποίος αγόρασε το προϊόν που καθορίζεται στο παρόν έγγραφο (στο εξής «Προϊόν») από την EIZO ή τους Διανομείς, η οποία εξασφαλίζει ότι η EIZO και οι Διανομείς, σύμφωνα με τη διακριτή ευχέρειά τους, είτε θα επισκευάσουν είτε θα αντικαταστήσουν το Προϊόν χωρίς χρέωση εάν ο...
  • Page 64 относительно Продукта по отношению к Первоначальному покупателю или по отношению к любым третьим сторонам, кроме обязательств, оговоренных в этой Гарантии. Компания EIZO и ее дистрибуторы прекращают хранить детали продукта в продаже или на складе по прошествии десяти (10) лет с момента снятия детали с производства. В случае ремонта монитора EIZO и Дистрибьюторы...
  • Page 65 有限责任保证书 EIZO Corporation（以下简称 EIZO ）和 EIZO 授权的经销商（以下简称 经销商 ） ，接受并依照本有限责任保证书（以 下简称 保证书 ）之条款，向从 EIZO 和经销商购买本文中所规定产品（以下简称 产品 ）的原买方（以下称 原买方 ） 提供保证 ： 在保证期内（规定如下） ，如果原买方发现按本产品所附使用说明书（以下简称 用户手册 ）所述方式正常使 用本产品过程中，本产品出现故障或损坏，EIZO 和经销商根据其独自的判断免费修理或更换该产品。 本保证期限定为本产品自购买本产品之日起的三（3）年（以下简称 保证期限 ） 。EIZO 和经销商将不向原买方或任何第 三方承担本保证书所规定之外的与本产品有关任何责任或义务。 EIZO 和分销商将不再保留或储存任何停产超过十 (10) 年的产品的零部件。维修显示器时，EIZO 与经销商将使用符合我方 质量控制标准的替换零件。 本保证书仅对于设有经销商的国家或地区有效。本保证书并不限定原买方的任何法律权利。...
  • Page 66 니다 . (a) EIZO 및 유통업체 이외 제 3 자에 의한 화물 운송 피해 , 개조 , 변경 , 남용 , 오용 , 사고 , 부적절한 설치 , 재난 , 잘 못된 유지보수 및 / 또는 부적절한 수리로 인해 발생되는 제품 결함 ;...

  • Page 67: Recycling Information

    Cuando desee deshacerse de este producto, póngase en contacto con un distribuidor o una fi lial de su país. Encontrará las direcciones de contacto en el sitio web de EIZO que se indica a continuación. http://www.eizoglobal.com Informazioni sul riciclaggio Per lo smaltimento e il riciclaggio del presente prodotto, attenersi alle normative vigenti nel proprio paese per ridurre l’impatto ambientale.
  • Page 68 Ten produkt po zużyciu powinien być zbierany i przetwarzany zgodnie z krajowymi przepisami dotyczącymi ochrony środowiska. Wyrzucając ten produkt, należy skontaktować się z lokalnym dystrybutorem lub partnerem. Adresy kontaktowe można znaleźć we wskazanej poniżej witrynie internetowej fi rmy EIZO. http://www.eizoglobal.com...
  • Page 69 Při likvidaci produktu musí být produkt vyzvednut a recyklován podle zákonů příslušné země, aby nedocházelo k zatěžování životního prostředí. Zbavujete-li se produktu, kontaktujte distributora nebo pobočku ve své zemi. Kontaktní adresy jsou uvedeny na následující webové stránce společnosti EIZO. http://www.eizoglobal.com Ringlussevõtu alane teave...
  • Page 70 вашата страна за да се намали замърсяването на околната среда. Когато искате да се освободите от този продукт, моля свържете се с търговския му представител или със съответните органи отговарящи за това във вашата страна. Данните за връзка с нас са описани на следния Интернет сайт на EIZO: http://www.eizoglobal.com Informaţie referitoare la reciclare Acest produs, când debarasat, trebuie colectat şi reciclat conform legislaţiei ţării rspective ca să...

  • Page 71: China Measures For Rohs Compliance In Chinarohs

    China Measures for RoHS Compliance in ChinaRoHS 关于电子信息产品污染控制标识 本标识根据「电子信息产品污染控制管理办法」 ，适用于在中华人民共和国销售的电子信息产品。标识中央的 数字为环保使用期限的年数。只要您遵守该产品相关的安全及使用注意事项，在自制造日起算的年限内，不会 产生对环境污染或人体及财产的影响。上述标识粘贴在机器背面。 • 有毒有害物质或元素的名称及含量 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 （Pb） （Hg） （Cd） （Cr（VI） ） （PBB） （PBDE） × ○ ○ ○ ○ ○ 印刷电路板 ○ ○ ○ ○ ○...
  • Page 72 2nd Edition-January, 2015 03V25044B1 Copyright © 2014-2015 EIZO Corporation All rights reserved. (U.M-FDS1904)
