Intel

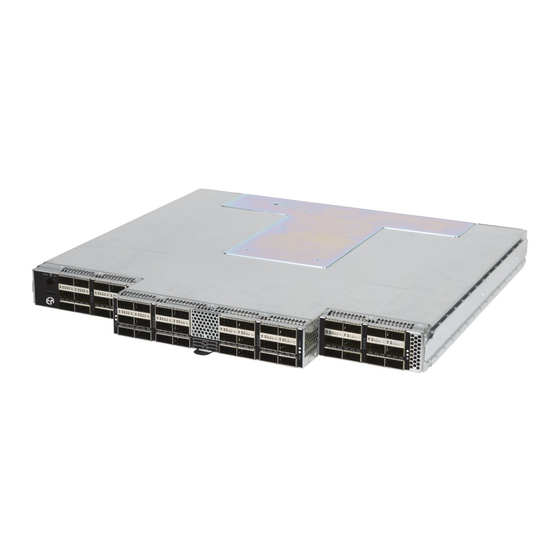

Omni-Path Fabric Switches
Hardware Installation Guide
May 2016
: H76456Rev 3.0US
Doc. No.

Advertisement

Table of Contents
loading

Related Manuals for Intel 100 Series

Summary of Contents for Intel 100 Series

  • Page 1 ® Intel Omni-Path Fabric Switches Hardware Installation Guide May 2016 : H76456Rev 3.0US Doc. No.
  • Page 2 OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT. A "Mission Critical Application" is any application in which failure of the Intel Product could result, directly or indirectly, in personal injury or death. SHOULD YOU PURCHASE OR USE INTEL'S PRODUCTS FOR ANY SUCH MISSION CRITICAL APPLICATION, YOU SHALL INDEMNIFY AND HOLD INTEL AND ITS...

  • Page 3: Table Of Contents

    Installing the Switch Fascia..............33 2.3.5 Reversing the Fan Airflow ................ 33 2.3.6 Installing the Q7 Management Module............36 Omni-Path Director Class Switches 100 Series Installation ........38 2.4.1 Mounting Hardware Kit Contents: ............. 38 2.4.2 Unpacking the Switch ................38 2.4.3...
  • Page 4 Ports, Fabric Manager (FM), Managed (M), and FM Switch LEDs ........61 Activating the FM Enable Switch LED ................62 Power Supply LEDs ....................63 Airflow Direction LED ....................63 ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...
  • Page 5 Omni-Path Switches Management Module LEDs..................64 Leaf Module LEDs..................... 65 Spine Module LEDs ....................66 SEEB Module LEDs ....................67 Director Class Fan LEDs .................... 68 ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...
  • Page 6 Omni-Path Switches Tables Related Documentation for this Release ................ 7 Cable Bend Radius Guidelines..................25 ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...
  • Page 7 Omni-Path Switches Date Revision Description May 2016 Document updated for Revision 3.0 February 2016 Document updated for Revision 2.0 November 2015 Document updated for Revision 1.0 § § ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...
  • Page 8 Omni-Path Switches ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...

  • Page 9: Introduction

    This manual describes the hardware installation and initial configuration tasks for the ® Intel Omni-Path Switches 100 Series. This includes: ® • Intel Omni-Path Edge Switches 100 Series, 24 and 48-port configurable edge switches ® • Intel Omni-Path Director Class Switches 100 Series This manual is organized as follows: Section 1.0...

  • Page 10: Documentation Conventions

    — Press the UP ARROW key. • Text in italics indicates terms, emphasis, variables, or document titles. For example: — For a complete listing of license agreements, refer to the Intel Software End User License Agreement. — What are shortcut keys? —...

  • Page 11: Laser Safety Information

    The assemblies used in the switch chassis are ESD sensitive. Observe ESD handling procedures when handling any assembly used in the switch chassis. License Agreements Refer to the Intel Software End User License Agreement for a complete listing of all license agreements affecting this product. Technical Support Intel Technical Support for products under warranty is available during local standard working hours excluding Intel Observed Holidays.

  • Page 12: Safety Information

    Отключите устройство: В данном устройстве может быть более одного сетевого шнура. Во избежание поражения электрическим током отсоедините все сетевые шнуры до проведения технического обслуживания устройства. ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...
  • Page 13 Одвојте уређај: Ова јединица може имати више од једног кабла за напајање. Да бисте смањили ризик од струјног удара, одвојте све каблове за напајање пре сервисирања јединице. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 14: Statement 2

    Lyftning av chassi. Iakttag säkerhetsanvisningar vid lyft. OBS! Använd ett team personer lämpade för vikten på varje specificerad produkt och i samband med gällande riktlinjer. Använd en mekanisk lyftanordning närhelst det är möjligt. ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...
  • Page 15 Ανύψωση του περιβλήματος: ακολουθείτε ασφαλείς πρακτικές κατά την ανύψωση. Σημείωση: Χρησιμοποιείτε ομάδα ατόμων ανάλογα με το βάρος του κάθε προϊόντος και σύμφωνα με τις ισχύουσες οδηγίες. Όταν είναι εφικτό, χρησιμοποιήστε μηχανικό ανυψωτικό. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...
  • Page 16 Risk för elektrisk stöt. Reducera risken för elektrisk stöt genom att hålla händer och fingrar borta från strömförsörjningsfack och bakpanelsområden. Áramütés veszélye – Az áramütés kockázatának csökkentése érdekében kezeit és ujjait tartsa távol a tápcsatlakozóktól és a hátsó területektol. ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...
  • Page 17 Straling kan worden afgegeven door connectoren of glasvezelkabels. Lasersäteily. Jotkut optiset laitteet saattavat päästää lasersäteilyä. Niiden suojusten poistaminen saattaa altistaa vaaralliselle lasersäteilylle. Säteily voi tulla liittimistä tai optisista kuitukaapeleista. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...
  • Page 18 óptica. ‫קרינת לייזר: מוצרים אופטיים מסוימים עשויים לפלוט קרינת לייזר. הסרת כיסויים עלולה להוביל לחשיפה לקרינת‬ .‫לייזר מסוכנת. קרינה עשויה להיפלט ממחברים או מכבלי סיבים אופטיים‬ ® Intel Omni-Path Fabric Switches Installation Guide May 2016...

  • Page 19: Statement 5

    Non rimuovere le coperture. Ingen deler som kan vedlikeholdes av brukeren: farlig strømmengde kan finnes inni strømforsynings- og kretskortmoduler. Fjern ikke dekslene. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...
  • Page 20 Kapakları çıkarmayın. Делови које корисници не могу сервисирати: Опасни нивои напона могу бити присутни унутар напонских јединица и модула штампаних картица. Немојте уклањати поклопце. ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...

  • Page 21: Statement 6

    .‫התקנת הציוד: יש לאפשר לעובדים מיומנים בלבד להתקין, להסיר או להחליף מארז או מודולים‬ Montaż sprzętu: tylko wykwalifikowany personel może być upoważniony do montażu, demontażu lub wymiany obudowy i modułów. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 22: Statement 7

    Statement 7: ® Adding or Replacing Modules: These modules are intended only for installation in Intel Omni-Path Fabric base units. Always install blanks when removing an active module. They prevent exposure to energy hazards inside the unit, contain EMI, and maintain cooling air balance in the chassis.
  • Page 23 De förhindrar exponering för energirisker på enhetens insida, hindrar EMI och upprätthåller kylluftbalansen i chassin. ® Modulok hozzáadása vagy cseréje – Ezek a modulok kizárólag Intel Omni-Path-es sorozatú bázisegységekbe építhetoek be. Aktív modul cseréjekor mindig szereljen be üres helyeket. Ezek megakadályozzák az egységen belüli energiaveszélyek kialakulását, tartalmaznak EMI-t, és fenntartják a hutolevego egyensúlyát a borításon...
  • Page 24 Modul kosong akan mencegah terpaparnya energi berbahaya di dalam unit, termasuk EMI, dan memelihara keseimbangan udara penyejuk di dalam kerangka. ® Modüllerin Takılması veya Değiştirilmesi: Bu modüller yalnızca Intel Omni-Path Fabric sistem biriminde kullanım içindir. Aktif modülleri çıkarırken daima boşluk modüllerini kurunuz.

  • Page 25: Installation

    Omni-Path Switches Installation This section describes how to install and configure for first-time use: ® • The Intel Omni-Path Fabric Series switches in a network environment. Planning the Installation The Omni-Path switches are designed for installation in standard 19-inch equipment racks.

  • Page 26: Qsfp Cable Connector Orientation

    — Recommended minimum bend radius is >69mm ® • Intel Omni-Path Active Optical Cable 100 Series: — Recommended minimum bend radius is >105 mm within 100 mm of either cable end module, and >60 mm on the rest of the cable Table 2.

  • Page 27: Copper Cable Bend Radius

    — Add the VA from each piece of equipment together to find the total VA requirement. Then add 30% to determine the minimum amperage requirements for the UPS. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 28: Uninterruptible Power Supply Equipment

    Tools and Equipment Required • An ESD wrist strap • A #0 and #2 Phillips screwdriver • An M6 HEX nut wrench ® • Lifting device (e.g., pallet jack) for the Intel Omni-Path Director Class Switches 100 Series 2.2.2 Check the Installation Site The switches are designed to be installed in an existing server cabinet (not a telco cabinet), where it can be mounted in a standard equipment rack.

  • Page 29: Mark The Rack

    2. Mark the upper (if applicable) and lower mounting positions on the vertical rails on the front of the rack. 3. Mark the upper (if applicable) and lower mounting positions on the vertical rails on the back of the rack. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 30: Omni-Path Fabric Edge Switch Installation

    Fasten the rail using two (2) M6 screws. Torque screws to 30in-lb. Repeat this step for the second rail. ® Intel Omni-Path Fabric Switches Installation Guide May 2016...

  • Page 31: Rail Installation Pin

    2. Fasten the port-side rails using four (4) M6 screws. Torque screws to 30in-lb. Note the orientation of mounting rails in Figure 7. The rails are shown from the front side of the rack. Figure 7. Installed the Rack Rails ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 32: Omni-Path Fabric Edge Switch Mounted In A Four Post Standard Rack

    Omni-Path Fabric Edge Switch Mounted in a Four Post Standard Rack 3. The rails are designed for different mounting positions, from flush mount to recessed (in 1 inch increments) as shown in Figure ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...

  • Page 33: Switch Rail Adjustments

    5. Slide the switch to the desired depth in the rack. The switch is adjustable in increments of 1 inch. When the switch is at the proper depth, push the rail adjustment notches back to their original position to secure in place. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide...

  • Page 34: Installing The Airflow Baffles

    Figure 12. Secure the Top Baffle to the Switch 3. After baffle is fully inserted, push the handles back until the rail locks in place. ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...

  • Page 35: Installing The Switch Fascia

    This section details the procedure to reverse the airflow on the switch fan assembly from the default port-side exhaust position. 2.3.5.1 Tools Required: • ESD wrist strap • #0 Phillips screwdriver ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 36: Switch Cover Thumbscrews (Top View)

    3. Lower the fan assembly straight down. The airflow direction indicators should now face towards the rear of the chassis as shown in Figure Note: Make certain to provide strain relief for the wire assembly. ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...

  • Page 37: Wire Assembly Strain Relief And Airflow Direction Indicators

    Omni-Path Switches Figure 17. Wire Assembly Strain Relief and Airflow Direction Indicators 4. Reattach the switch cover. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 38: Installing The Q7 Management Module

    2.3.6.2 Procedures 1. Remove the switch cover as detailed in Section 2.3.5.2, Step 1. The Management Module slot is displayed in Figure Figure 19. Management Module Slot ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...

  • Page 39: Installing The Q7 Module

    3. Once the module is seated properly in the connector, secure screw to the chassis using a regular screwdriver. Figure 21. Q7 Module Mounting Screw 4. Reattach the switch cover. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 40: Omni-Path Director Class Switches 100 Series Installation

    Omni-Path Switches Omni-Path Director Class Switches 100 Series Installation 2.4.1 Mounting Hardware Kit Contents: • Mounting Kit containing: — Support Platform (1) — Plenums (2) — #10 Mounting screws — #10 Mounting nuts — M6 Mounting Screws 2.4.2 Unpacking the Switch Note: Set aside packaging materials in the event that the switch requires return shipment.

  • Page 41: Unpacking The Switch (2)

    2. Remove the lid. Figure 24. Unpacking the Switch (3) 3. Remove the accessory kit box and white packing form. The accessory kit contains required hardware, power cables, documentation, etc. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 42: Unpacking The Switch (4): Accessory Kit

    Omni-Path Switches Figure 25. Unpacking the Switch (4): Accessory Kit Figure 26. Unpacking the Switch (5) 4. Lift the box up out of the base. ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...

  • Page 43: Unpacking The Switch (6)

    5. Remove the plenum boxes. Figure 28. Unpacking the Switch (7) 6. Remove the plastic bag, then remove the support shelf from the top of the switch. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 44: Installation Tasks

    The following section details rack mounting instructions for the 6-slot and 24-slot ® Intel Omni-Path Director Class Switch 100 Series. The installations are very similar; the majority of steps apply to both switches. Where applicable, any specifics for either the 6-slot or 24-slot Director are called out.

  • Page 45: Install Fixture Brackets

    5. Attach the plenums to the top of each platform rail using 10 mounting nuts, 5 per platform rail as displayed in Figure 33. Torque nuts to 30in-lb. Note: Make certain to tighten the adjustable rail screws (from Step 2) at this time. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 46: Secure The Plenums To Top Of Platform Rails

    24 Slot Chassis: use the lower of the 2 openings, 1 mounting nut per rail. Figure 34. Secure the Top of the Baffles to the Rack Rails ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...

  • Page 47: Completed Platform Assemblies

    Omni-Path Switches 7. The completed Platform assemblies for both the 6 and 24 slot switches are displayed in Figure Figure 35. Completed Platform Assemblies ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 48: Slide The Chassis Into The Rack

    Management Guide” on page 51), install the cage nuts into the rack rails before fully sliding the chassis into the rack. Figure 36. Slide the Chassis into the Rack ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...

  • Page 49: Fasten The Chassis To The Rack

    4. Fasten the chassis to the rack with M6 screws: a. 6-Slot Director: six (6). b. 24-Slot Director: twelve (12). Figure 37. Fasten the Chassis to the Rack ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 50: Completed Switch Installations

    Omni-Path Switches 5. The completed switch installations for both the 6 and 24-slot switches are displayed Figure Figure 38. Completed Switch Installations ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...

  • Page 51: Installing The Optional Cable Management Guide

    Installing the Optional Cable Management Guide The optional Cable Management Guides are attached to the rack rails with M6 cage nuts and screws as shown in Figure Figure 39. Installing Cable Management ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 52: Installing Director Class Modules

    Omni-Path Switches 2.4.5 Installing Director Class Modules ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...

  • Page 53: Module Installation 1

    The Management Module (MM) is used here as the example. 1. Grasp and pull the release arms out and away from the module body as shown in Figure Figure 40. Module Installation 1 ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 54: Module Installation 2

    Do the allows the MM to communicate with the SEEB module on the other side of chassis as shown in Figure Figure 43. Module Installation 4 ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...

  • Page 55: Module Installation 5

    Serial, Ethernet, Chassis EEPROM Board (SEEB) module, then pull down to release the MRL as shown in Figure 44. This allows enough clearance for leaf module to be installed. Figure 44. Module Installation 5 ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 56: Power Supplies

    3. Slide the module straight into an applicable open slot until it engages with the backplane connector. 4. Push the handle back up and reconnect the thumbscrew. ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...

  • Page 57: Connect Equipment To The Ports And Power On The System

    Connect the other end of the Cat 5/6 to an OOB LAN workstation, another switch or a hub. 2. Connect the switch to host(s)/switch(es) using QSFP cables. Caution: It is important to provide strain relief for the cable connector. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 58: Port Edge Switch Cabling Recommendations

    The switch is located in the lower left corner on the chassis spine side> 5. The switch, power supply(s), and fan LEDs light up. ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...

  • Page 59: Setting Up The Usb Console

    ), and is the new subnet mask in dotted xxx.xxx.xxx.xxx -m <netMask> decimal format. 2. To change the switch default gateway IP address type: setDefaultRoute -h <ipaddress> ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 60: Updating The Management Module Ip Addresses In A Director Class Redundant Management Configuration

    To update the IP address on a management module, do the following: 1. Ensure that the module is connected to a COM port on a serial terminal device through the USB port. ® Intel Omni-Path Fabric Switches Installation Guide May 2016...
  • Page 61 5. At the prompt type , and press ENTER. Following the reboot, the [boot]: reboot IP address is changed. Repeat these steps for the second management module. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 62: Component Leds

    — The module can no longer function properly. The system will take the appropriate actions to ensure that no damage is done to its components. • Blinking Amber (once every four seconds): LED test state. ® Intel Omni-Path Fabric Switches Installation Guide May 2016...

  • Page 63: Ports, Fabric Manager (Fm), Managed (M), And Fm Switch Leds

    The FM LED indicates that the switch is recognized by the active Fabric Manager. 2.8.1.3.3 Managed (M) The Managed (M) LED indicates that a Q7 management module is installed switch. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 64: Activating The Fm Enable Switch Led

    — Pressing the button for 2 seconds leaves the configuration state, and saves the FM control button state persistently, restoring the FM enabled LED to the proper value ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...

  • Page 65: Power Supply Leds

    Figure 52. Airflow Direction LED • Green indicates the fans are blowing from front to back. • Off indicates the fans are blowing from back to front. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 66: Director Class Leds

    The Chassis Fault Tolerant (FT) LED indicates the following condition: • Green: Redundant Cooling, DC Power and management all present (n+1) • Off: Redundant Cooling, DC Power and management are not all present ® Intel Omni-Path Fabric Switches Installation Guide May 2016...

  • Page 67: Leaf Module Leds

    • Steady Green: the module is operating normally. • Blinking Green: LED test state. • Off: module is in the removable state. 2.8.2.2.3 Module Attention The Attention LED indicates one of the following conditions: ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 68: Spine Module Leds

    — The switch silicon temperature is at a warning level — DC voltages on the board are slightly out of tolerance • Blinking Amber (once every four seconds): LED test state. ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...

  • Page 69: Seeb Module Leds

    (MRL) thumbscrew is secured to the serial, Ethernet, Chassis EEPROM Board (SEEB) and a Management Module is installed in the front of the chassis. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...

  • Page 70: Director Class Fan Leds

    10,950 RPM. • Green Amber on indicates a possible problem, including: — The fan tray is not responding to commands for configuration and temperature- related operations. ® Intel Omni-Path Fabric Switches Installation Guide May 2016 Doc. No.: H76456Rev 3.0US...
  • Page 71 — A fan is not responding to commands for temperature and speed related operations. — The fan speed has fallen below the minimum allowed RPM for a fan. ® Intel Omni-Path Fabric Switches May 2016 Installation Guide Doc. No.: H76456Rev 3.0US...
