  • Page 1 Operation and Service Manual Badu Stream ® Counter Swimming Unit Rev. 07/16...
  • Page 2 Website: www.usa.speck-pumps.com Email: technical.usa@speck-pumps.com Date of Installation: Installed by: Serial Number: For Service Call: Manufactured by Speck Pumps, Jacksonville Florida USA, © 2016 All Rights Reserved. This document is subject to change without notice. 2999999189A - Rev. 0716 SW OO.0.OO...

  • Page 3: Table Of Contents

    Table of Contents Important Safety Instructions SwimJet Combination Fitting Manufacturers Warnings. . 4 General Safety Instructions....5 Operation Overview ..... . 7 Basic Operation .

  • Page 4: Important Safety Instructions

    2. This fitting should be mounted in the vertical pool wall only per manufacturer’s instructions. 3. All fittings and fasteners should be examined for damage or tampering before each use. 4. Any missing, broken, or cracked fittings must be replaced before using this product. Only genuine Speck replacement parts may be used.

  • Page 5: General Safety Instructions

    General Safety Instructions The following guidelines provide information to minimize the risk of injury to users of pools, spas, and hot tubs. WARNING: TO REDUCE THE RISK OF ENTRAPMENT HAZARD Pool and spa pumps produce high levels of suction, which can pose extreme danger if a person comes in close proximity to an open pool or spa drain or if a drain cover is loose, cracked, broken or missing.
  • Page 6 General Safety Instructions - continued VGB Compliance VIRGINIA GRAEME BAKER POOL AND SPA SAFETY ACT The Virginia Graeme Baker Pool and Spa Safety Act raises certain new requirements on owners and operators of swimming pools and spas. Pools or spas constructed on or after December 19, 2008, shall utilize: No submerged suction outlets, a gravity drainage system with ASME/ANSI cover(s), one or more unblockable outlets;...

  • Page 7: Operation

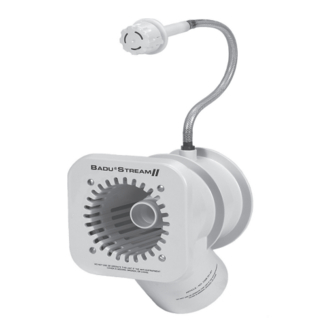

    Overview The BaduStream II from Speck Pumps is designed to be installed during the construction of your pool to create a water treadmill for anyone wanting a therapeutic and effective exercise. Topping off the experience is the pulsating massage hose which can be attached to the jet nozzles for easy and convenient massage treatments for joints and muscles.

  • Page 8: Service And Maintenance

    Priming Pump The BaduStream system comes with a 4 HP self-priming pump (Speck Model 21-80/33 GS) to specifically work with the swimjet system. The Model 21-80/33 GS self-priming pump has the ability to remove air from the plumbing lines when installed above the water level (up to 4 feet).

  • Page 9: Nozzle Adjustments

    Nozzle Adjustments When setting the nozzles for basic swimming, it is recommended that you set the nozzles in such a way that each nozzle intersects 4 feet away while breaking the surface at the same time. To help set the nozzles in position for best performance, please follow these instructions: 1.

  • Page 10: Winterizing

    What are the maintenance requirements for the pump? The Speck Model 21-80/33 GS pumps are generally maintenance free. From time to time you should carry out a visual inspection. Check to see if pump is leaking, a few drops is normal. Remove any debris around the pump.

  • Page 11: Troubleshooting

    As I swim against the jet it pushes me to the side? Yes, refer to nozzle adjustment section and also Speck Pumps offers a BADU Swim Mirror that will help with staying in the swim lane. You will be able to see yourself as you swim.
  • Page 12 Trouble Shooting - continued PROBLEM POSSIBLE CAUSES SOLUTION 4. Noisy operation of a. Bad bearings. Check for noise when shaft is turned by hand. Motor motor. will be very hot in bearing area when running. Replace bearing. 5. Motor runs hot. These motors will run hot to the touch, however, this is normal.

  • Page 13: Product Specification

    Trouble Shooting - continued PROBLEM POSSIBLE CAUSES SOLUTION 11. My plastic cover is Contact your pool service company or call 800-223- cracked. 8538. 12. The massage hose is Apply both hands on the outer side of the lip of the stuck against the jet locking ring, slightly pulling back until this snaps back.

  • Page 14: Replacement Parts And Exploded View

    Exploded View PART DRAWING DESCRIPTION NUMBER NUMBER REQUIRED 2306002009 FACE RING - NOZZLE 5879006020 THREAD CUTTING SCREW - FACE RING K60 x 20 A2 2308762004 RING - CLAMPING 2302002854 NOZZLE - ADJUSTABLE FLOW 40mm 2308761001A 5 & 7 HOUSING WITH REDUCER BUSHING 16mm x 1/4” 2308750003 COVER - SQUARE AE 5879650625...

  • Page 15: Limited Warranty

    Badu SwimJet System(s). 2. To the fullest extent permitted by law, the Limited Warranty will be void and of no force or effect and Speck Pumps-Pool Products, Inc. will have no liability, responsibilities or obligations to Buyer or with respect to the Badu SwimJet System(s) in...
  • Page 16 32256 USA. Under no condition will products be accepted after the expiration of the Limited Warranty Period. Speck Pumps- Pool Products, Inc. shall not bear any costs or risks incurred by Buyer in shipping a defective Badu SwimJet System(s) to Speck...
