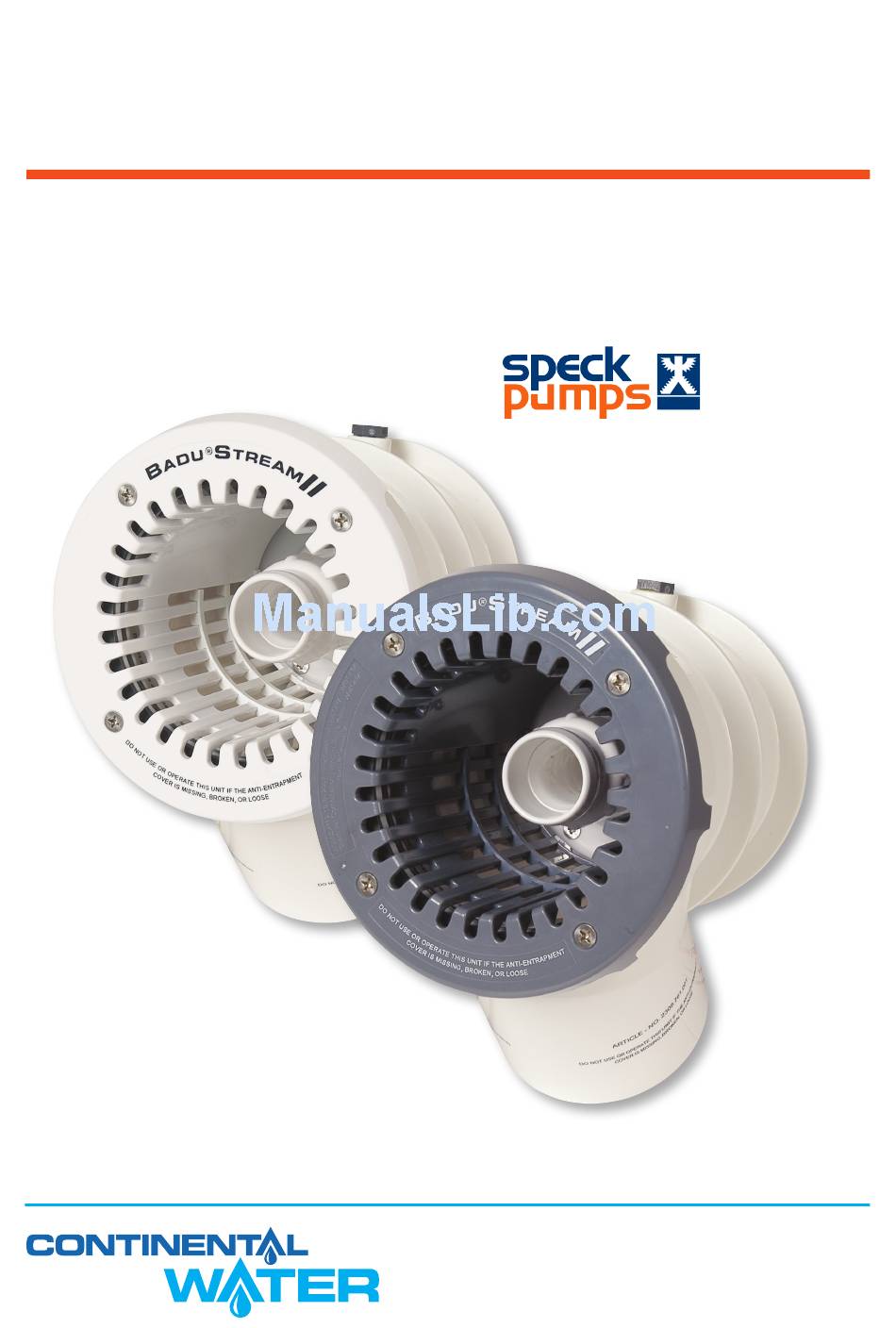

- Page 1 SPECK ® BADU STREAM II ® INSTALLATION, OPERATING AND SERVICE MANUAL IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS BADU STREAM II ® COUNTERSTREAM SWIMMING UNIT U.S. PATENT NO. 3.977.027 OWNER 1S MANUAL SPECK Pool Products for Pure Enjoyment...
-
Page 2: Table Of Contents
SPECK BADU STREAM II ® ® 1 .0 SAFETY INFORMATION INSTALLATION, OPERATING AND SERVICE MANUAL 1.1.1 When installing and using this electrical equipment, basic safety precautions should alway be IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS BADU ® STREAM II followed, including the following: COUNTERSTREAM SWIMMING UNIT U.S. -
Page 3: Introduction And Planning
Be sure to decide which method of switching the pumps on and off you are going to use. If you are going to be using the soft air switches these will need to have provisions prior to concreting. Fig 7. SPECK BADU SWIM SYSTEMS – Water Line Graph ® Pipe Recommendations... -
Page 4: Plumbing
3.0 PLUMBING FOR BADU STREAM II ® 3.1.1 The BADU®STREAM II assembly package contains all necessary parts for the installation of the unit into concrete, gunite, liner or fiberglass pools. 3.1.2 CAUTION: All necessary screws and bolts included with the BADU®STREAM II are PLUMBING REQUIREMENTS stainless steel or plastic. - Page 5 4.0 INSTALLATION cont. Fig 3. BADU ® STREAM II in Fig 2. Template for Installation in Concrete Pool. Concrete Pools. 4) Recheck location of the jet housing when concrete is being applied. The force of the concrete may move the jet location. 5) To avoid stress on the jet housing, we recommend that the BADU STREAM II housing be ®...
- Page 6 CAUTION: Locate the air control hose connector (part #6) at the top and center of the jet 4.3.1 CAUTION: Before installing the Speck Pump, read the entire pump owner’s manual found in housing. Connectors must be exactly vertical or the cover will be uneven in appearance.
-
Page 7: Nozzle Adjustment Instructions
5.0 NOZZLE ADJUSTMENT 6.0 OPERATION INSTRUCTIONS OPERATING INSTRUCTIONS 5.1.1 When setting the nozzles of the BADU STREAM II for basic swimming, it is recommended that ® 6.1.1 Remove red filler plug or strainer tank lid on pump and fill pump with water. Replace red filler you set the nozzles in such a way that each nozzles intersects 1.2m away while at the same time plug or lid. - Page 8 7.0 PARTS LIST FOR BADU STREAM II ® Code Description Qty Per Pump PDSSFRGNOZ Face Ring - Nozzle PDSSTAP55 Screw - Tapping 5.5 x 19 PDSSRGCLMP Clamping Ring PDSSNO240M Nozzle - Adjustable Flow PDSSBUR16 Bushing PDCPHCT001 Hose Connector 1/4" PDSSHSNG Housing PDSSCOVRDW Round Cover (Available in White &...
-
Page 9: Frequently Asked Questions
Yes. However, for best performance we recommend ordering pump for flooded suction (Model 21-80/33G) instead of self-priming (Model 21-80/32 GS). We recommend installing Your Speck pool pump carries a manufacturer’s warranty of two (2) years on the motor and five (5) years on valves for ease of maintenance. - Page 10 exceeding 35°C, hot operating enclosures with poor ventilation, fluctuating power supplies, water All Warranty claims must be accompanied by the proof of purchase, alleged defect and any appropriate pressure greater than 250kpa, or lack of protection from the weather. documentation (Historical and maintenance records). •...
- Page 11 1300 166 253 for Sales and Service sales@continentalwater.com.au / accounts@continentalwater.com.au ABN: 71 050 287 735 New South Wales Office Victorian Office Queensland Office New Zealand Office (02) 8814 2800 (03) 8794 3800 (07) 3434 1100 0011 64 9570 9570 (02) 9838 7030 (03) 9702 3941 (07) 3219 2266 0015 64 9527 7641...
