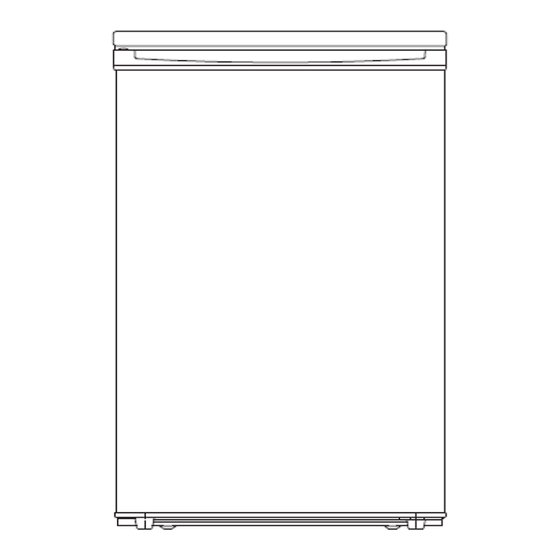

- Page 1 REFRIGERATOR Service manual MODEL: RS-09DC4S*（BD-65） NOTE: This is a basic model.the shape and specification of refrigerator is subject to change.
-
Page 2: Circuit Diagram
PARTS INENTIFICATION NOTE: This figure is only a sketch Of the Refrigerator, and the actual Products may differ from it. CIRCUIT DIAGRAM COOLING DIAGRAM... - Page 3 Evaporator Condenser Capillary Dry filter Compressor The guide for Disassembly Common parts of Refrigerator ◆ The instruction of replacing thermostat. The location of the thermostat remove screws of top cover...
-
Page 4: The Instruction Of Replacing Ptc Starting Relay And Overload Protector
Unplug the connecting wire Take out the thermostat ◆ The instruction of replacing PTC Starting relay and Overload protector. Take down Spring tap and Cover. Unplug the connecting wire Take out the PTC Starting relay and Overload protector Door Reversal... -
Page 5: Troubleshooting
TROUBLESHOOTING ◆ The common problem judging method... - Page 6 Problem Cause 1.1 Is the power cord connecting well？ 1.2 Is the power voltage too low？ 1.3 Is the ambient temperature too low? Refrigerator can’t 1.4 Is the circuit on power? start 1.5 Is there some default in compressor 1.6 Is the refrigeration system blocked by ice or dirty, please stop the unit and restart after 10 minutes to see if the compressor can start.
-
Page 7: The Solution For The Common Problem
Refrigerator’s two 8.1 As condensation tube is placed here and caused the above phenomenon, sides or the back which is normal. heat the cabinet surface 9.1 Air humidity is too large. condensation ◆ The solution for the common problem. 1.Cooling is not enough good (Many reasons might cause that cooling not enough good, as blow :) Reason analysis... - Page 8 see if it is normal. b, higher temperature of compressor surface. C, cut off the discharging tube, to see if you can block the gas coming out of the tube when compressor is working. Some time there is something blocked the filter of liquid cycle system, so that unit is not 5) There is something cold.
- Page 9 B, there is offal block the capillary Phenomenon of failure: If the capillary is blocked by something such as offal etc., the sound of liquid flow disappears. The ice on the evaporator defrosts First stop unit for several minutes, and then The pressure of absorbing open charging tube, discharge all of gas.
- Page 10 Will the refrigerator for repair, must first pull out the power plug, assure maintenance safety。 3、Prevent to electric shock: Usually for repair shall first will cut off power supply. If must be energized check circuit, should be careful to get an electric shock, do not touch charged area. Maintenance if discover the wire aging, should change in time。...
