Summary of Contents for Hisense RS-15DR

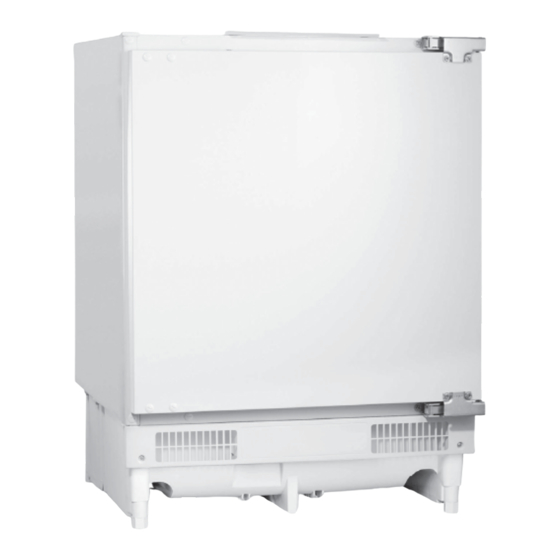

- Page 1 Refrigerator Service manual MODEL: RS-15DR#(BC-128#) CIR60W10 RS-17DR (BC-128) NOTE: This is a basic model.the shape and specification of refrigerator is subject to change.
-
Page 2: Table Of Contents
Contents Warnings and precautions for safety ..........................3 Parts Description ................................4 Circuit diagram ................................5 Cooling diagram ................................5 Specification ................................6 Thermostat Checking ..............................6 Compressor checking ..............................7 The guide for Disassembly Common parts of Refrigerator ..................9 ◆... -
Page 3: Warnings And Precautions For Safety
Warnings and precautions for safety Please observe the following safety precautions in order to use safely and correctly the refrigerator and to prevent accident and danger during repair. 1. Be care of an electric shock. Disconnect power cord from wall outlet and wait for more than three minutes before replacing PCB parts. -
Page 4: Parts Description
Parts Description... -
Page 5: Circuit Diagram
Circuit diagram Cooling diagram... -
Page 6: Specification
Specification Thermostat Checking Use a multi-meter to test the resistance between L & C when the thermostat is at normal position such as: “ 1, 2, .. 7” : If there shows “000”then the thermostat is OK If there shows anything but “000”then the thermostat is always at OFF Position and compressor... -
Page 7: Compressor Checking
will not start ever. Use a multi-meter to test the resistance between L & H and C&H when the thermostat is at shut position such as “0”: If there shows no response then the thermostat is OK If there shows anything (have response) then the thermostat is always at ON Position and the compressor will keep on working and will not stop ever. - Page 8 Normal range of C&S : About 5-20Ω Normal range of M&S : About 5-20Ω Normal range of M&C : About 10-40Ω If the test result is not in this range then it means the inner coil has some problem and the compressor can not work properly.
-
Page 9: The Guide For Disassembly Common Parts Of Refrigerator
The guide for Disassembly Common parts of Refrigerator ◆ The instruction of replacing thermostat The location of the thermostat Remove screws of thermostat box Unplug the connecting wire Remove screws of thermostat box... -
Page 10: The Instruction Of Replacing Lamp
Take out the thermostat ◆ The instruction of replacing lamp 1.Before carrying out the bulb replacement always press and turn the thermostat control dial to Position 0, then disconnect the mains supply. 2.Hold and unscrew the light bulb cover. 3. Remove the plastic light bulb cover. -
Page 11: The Instruction Of Replacing Ptc Starting Relay And Overload Protector
The location of door switch Take out the door switch with a screwdriver ◆ The instruction of replacing PTC Starting relay and Overload protector The location of the PTC Starting relay and Overload protector Take down Spring tap and Cover. Remove the compressor electric box cover Unplug the connecting wire... -
Page 12: The Instruction Of Replacing Fan Motor
Take out the PTC Starting relay and Overload protector ◆The instruction of replacing fan motor The location of the fan motor Remove the fan motor fixing clip Remove the fan motor Troubleshooting ◆ The common problem judging method Problem Cause Refrigerator can’t 1.1 Is the power cord connecting well？... - Page 13 start 1.2 Is the power voltage too low？ 1.3 Is the ambient temperature too low? 1.4 Is the circuit on power? 1.5 Is there some default in compressor 1.6 Is the refrigeration system blocked by ice or dirty, please stop the unit and restart after 10 minutes to see if the compressor can start.
-
Page 14: The Solution For The Common Problem
Refrigerator’s two 8.1 As condensation tube is placed here and caused the above phenomenon, sides or the back which is normal. heat the cabinet surface 9.1 Air humidity is too large. condensation ◆ The solution for the common problem 1.Cooling is not enough good (Many reasons might cause that cooling not enough good, as blow :) Reason analysis Solutions... - Page 15 a, lower pressure of discharging, check the pressure of system with pressure meter to see if it is normal. b, higher temperature of compressor surface. C, cut off the discharging tube, to see if you can block the gas coming out of the tube when compressor is working.
-
Page 16: Note
sound of gas flow comes from the capillary abruptly. The pressure of absorbing becomes higher. It is Ice blocking. B, there is offal block the capillary Phenomenon of failure: If the capillary is blocked by something such as offal etc., the sound of liquid flow disappears.
