Summary of Contents for thomann Harley Benton SolidBass 115T

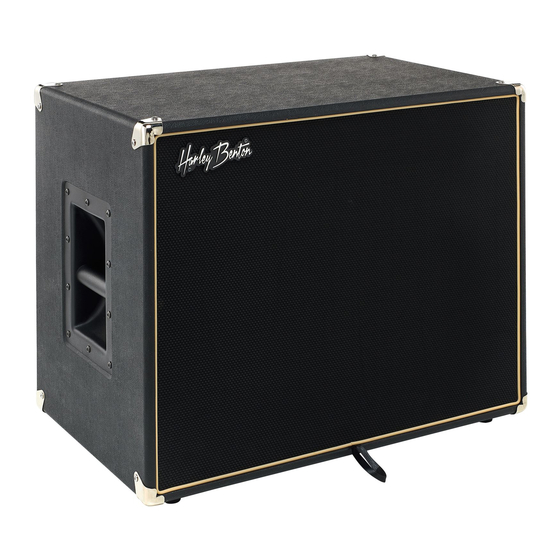

- Page 1 SolidBass 115T SolidBass 210T SolidBass 410T SolidBass 810 bass box user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 10.12.2019, ID: 477619, 477625, 477626, 477627...
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 11 Installation and starting up........................ 12 Connections and controls........................14 Technical specifications........................16 Plug and connection assignment.................... -
Page 4: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. bass box... -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used in a sound reinforcement system. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid‐ ered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 9 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 10 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specified in the chapter ‘Technical specifications’...
-
Page 11: Features
Features Features Special features of the device: Power rating: – SolidBass 115T, item no. 477619, 250 watt (8 Ω) – SolidBass 210T, item no. 477625, 250 watt (8 Ω) – SolidBass 410T, item no. 477626, 450 watt (8 Ω) – SolidBass 810, item no. -
Page 12: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 13 Installation and starting up NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. SolidBass 115TSolidBass 210TSolidBass 410TSolidBass 810...
-
Page 14: Connections And Controls
Connections and controls Connections and controls Rear panel bass box... - Page 15 Connections and controls 1 [SPEAKER INPUT] 1 × lockable Speaker Twist input socket 2 [HORN] Rocker switch for the horn (not for item no. 477627) [ON] turned on [OFF] turned off 3 [SPEAKER LINK] 1 × 1/4" phone socket SolidBass 115TSolidBass 210TSolidBass 410TSolidBass 810...
-
Page 16: Technical Specifications
Technical specifications Technical specifications SolidBass 115T SolidBass 210T SolidBass 410T SolidBass 810 Item no. 477619 Item no. 477625 Item no. 477626 Item no. 477627 Speaker 1 × 15-inch woofer 2 × 10-inch woofer 4 × 10-inch woofer 8 × 10-inch woofer 1 ×... - Page 17 Technical specifications SolidBass 115T SolidBass 210T SolidBass 410T SolidBass 810 Item no. 477619 Item no. 477625 Item no. 477626 Item no. 477627 Dimensions (W × H × D) 600 mm × 380 mm × 600 mm × 380 mm × 600 mm ×...
-
Page 18: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 19 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding SolidBass 115TSolidBass 210TSolidBass 410TSolidBass 810...
- Page 20 Plug and connection assignment Speaker Twist chassis connector 1, + Signal 1 (in phase) 1, – Signal 1 (out of phase) 2, + Signal 2 (in phase) 2, – Signal 2 (out of phase) bass box...
-
Page 21: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 22 Notes bass box...
- Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
