Summary of Contents for thomann Harley Benton Mighty-15TH

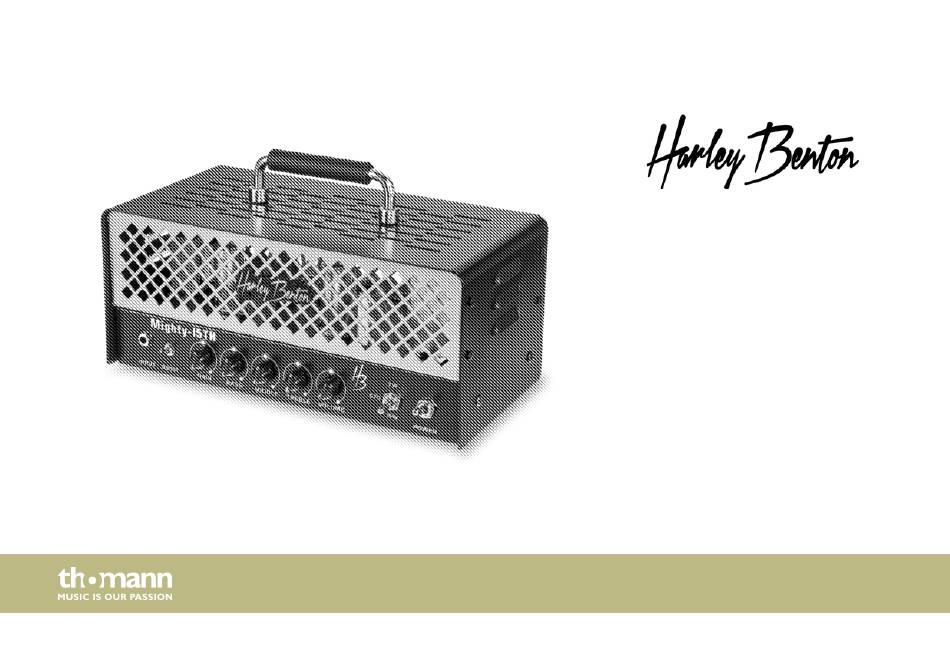

- Page 1 Mighty-15TH guitar amp head user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 13.10.2020, ID: 484306 (V2)
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 13 Installation and starting up........................ 14 Connections and controls........................15 Technical specifications........................19 Plug and connection assignment.................... -
Page 4: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. guitar amp head... -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used for the amplification of signals from musical instruments with electromagnetic pickups. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. - Page 9 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
- Page 10 Safety instructions DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician.
- Page 11 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture.
- Page 12 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.
-
Page 13: Features

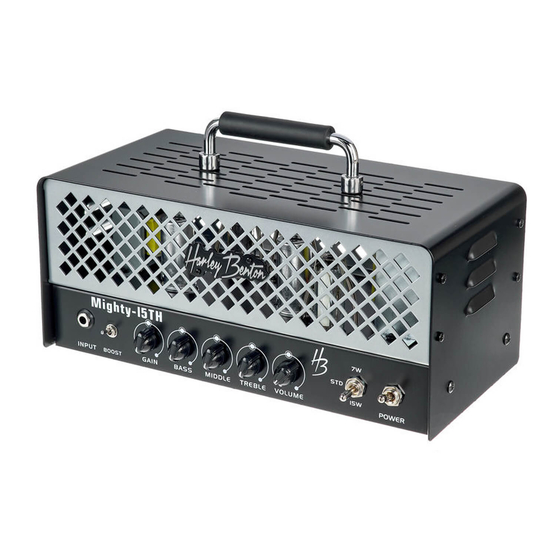

Features Features Special features of the device: 15 watt tube amp head for electric guitar Class A circuit with switchable output power 1 channel Power 15 W Reducible to 7 W 2 × 12AX7 preamp tube 2 × EL84 power tube 1 ×... -
Page 14: Installation And Starting Up
Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 15: Connections And Controls
Connections and controls Connections and controls Mighty-15TH... - Page 16 Connections and controls 1 [INPUT] 1/4" jack socket to connect your instrument 2 [BOOST] Boost switch 3 [GAIN] Gain control for the overall gain and overdrive level 4 [BASS] Control for boosting / attenuating the low frequencies 5 [MIDDLE] Control for boosting / attenuating the mid frequencies 6 [TREBLE] Control for boosting / attenuating the high frequencies 7 [VOLUME]...
- Page 17 Connections and controls 8 [STD] [7W] [15W] [STD]: Standby Toggle switch for selecting output power and standby [7W]: Power reducer to 7 W [15W]: Power 15 W 9 [POWER] Mains switch. Turns the device on and off. 10 [FS BOOST] Connection for foot switch to switch the boost on / off 11 [SEND] 1/4"...
- Page 18 Connections and controls 14 [1x16 Ω] Output for connecting speaker boxes with 16 Ω impedance 15 [1x8 Ω] Output for connecting speaker boxes with 8 Ω impedance 16 High voltage fuse 17 IEC chassis plug for connecting the mains cable with fuse holder The amplifier can operate a pair of 16 Ω...
-
Page 19: Technical Specifications
Technical specifications Technical specifications Speaker Preamp: 2 × 12AX7 Power amp: 2 × EL84 Indicator tube: 1 × 6E2 Amp class Output power max. 15 W @ 8 or 16 Ω Input connections Voltage supply IEC chassis plug C14 Instrument 1/4"... - Page 20 Technical specifications Operating supply voltage AC 230 V 50/60 Hz Fuse 5 mm × 20 mm, 1 A, 250 V, slow-blow High voltage fuse 5 mm × 20 mm, 315 mA, 250 V, slow-blow Dimensions (W × H × D) 330 mm ×...
- Page 21 Technical specifications Further information Power rating 15 W Power tubes EL84 Channels Reverb Foot switch Mighty-15TH...
-
Page 22: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... -
Page 23: Cleaning
Cleaning Cleaning Device components Clean the device components that are accessible from the outside regularly. The cleaning fre‐ quency depends on the operating environment: damp, smoky or particularly dirty environ‐ ments can cause greater accumulation of dirt on the device components. Clean with a dry soft cloth. -
Page 24: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 25 Notes Mighty-15TH...
- Page 26 Notes guitar amp head...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
