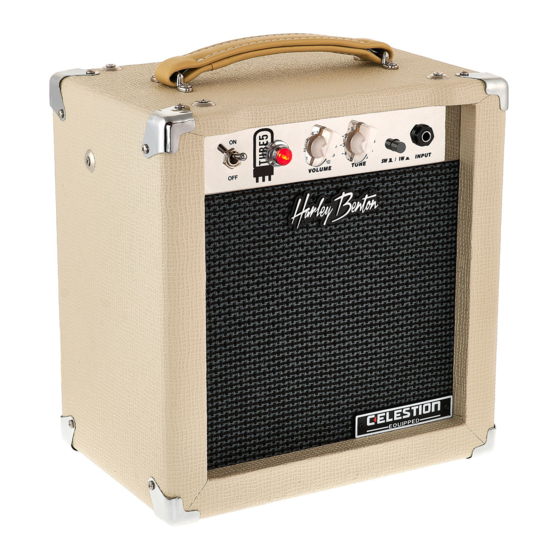

thomann Harley Benton TUBE5 Celestion User Manual

Guitar combo
Hide thumbs Also See for Harley Benton TUBE5 Celestion:
Table of Contents

Advertisement

Quick Links

TUBE5 Celestion
TUBE15 Celestion
guitar combo
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Harley Benton TUBE5 Celestion and is the answer not in the manual?

Questions and answers

Related Manuals for thomann Harley Benton TUBE5 Celestion

Summary of Contents for thomann Harley Benton TUBE5 Celestion

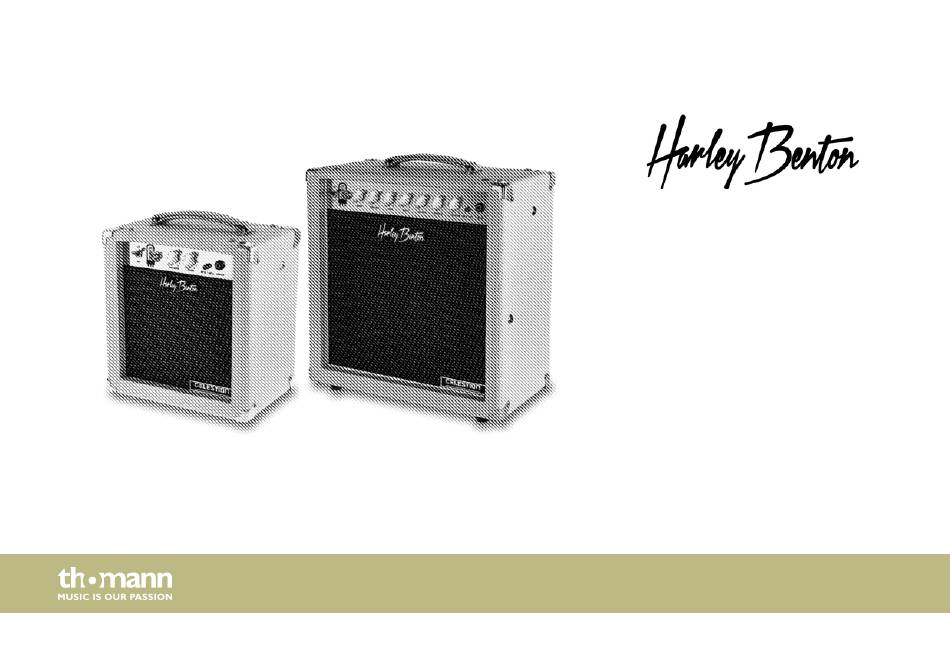

  • Page 1 TUBE5 Celestion TUBE15 Celestion guitar combo user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 22.06.2020, ID: 469677, 469683...

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 14 Installation and starting up........................ 15 Connections and operating elements................... 16 Technical specifications........................24 Plug and connection assignment....................

  • Page 4: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. guitar combo...

  • Page 5: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 6: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.

  • Page 8: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used for amplification and playback of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating condi‐ tions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
  • Page 9 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
  • Page 10 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
  • Page 11 Safety instructions NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. TUBE5 Celestion TUBE15 Celestion...
  • Page 12 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specified in the chapter ‘Technical specifications’...
  • Page 13 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.

  • Page 14: Features

    Features Features Item no. 469677 TUBE5 Celestion Output power: 5 watt @ 8 Ω 1 × 8" Celestion Super speaker Output for external speaker box Preamp tubes: 1 × ECC83/12AX7 Power tubes: 1 × 6V6GT Item no. 469683 TUBE15 Celestion Output power: 15 watt @ 8 Ω...

  • Page 15: Installation And Starting Up

    Installation and starting up Installation and starting up Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.

  • Page 16: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Item no. 469677 TUBE5 Celestion Front panel guitar combo...
  • Page 17 Connections and operating elements 1 [ON/OFF] Main switch. Turns the device on and off. 2 Status LED This LED lights when the device is turned on. 3 [VOLUME] Volume control 4 [TONE] Tone control 5 [5W/1W] Output power switch 6 [INPUT] 1/4"...
  • Page 18 Connections and operating elements Item no. 469677 TUBE5 Celestion Rear panel 7 [EXTERNAL SPEAKER] 1/4" output socket for connecting an external speaker box (recommended impedance: 8 Ω). The internal speaker will be turned off when this connector is used. 8 Power cord guitar combo...
  • Page 19 Connections and operating elements Item no. 469683 TUBE15 Celestion Front panel TUBE5 Celestion TUBE15 Celestion...
  • Page 20 Connections and operating elements 1 [ON/OFF] Main switch. Turns the device on and off. 2 Status LED This LED lights when the device is turned on. 3 [GAIN] Control to adjust the signals preamp gain 4 [VOLUME] Volume control 5 [TONE] Tone control 6 [BASS] Control to adjust the low frequencies...
  • Page 21 Connections and operating elements 8 [TREBLE] Control to adjust the high frequencies 9 [REVERB] Control to adjust the intensity of the reverb effect 10 [15W/1W] Output power switch 11 [INPUT] 1/4" jack socket to connect an instrument TUBE5 Celestion TUBE15 Celestion...
  • Page 22 Connections and operating elements Item no. 469683 TUBE15 Celestion Rear panel guitar combo...
  • Page 23 Connections and operating elements 12 [EXTERNAL SPEAKER] 1/4" output socket for connecting an external speaker box (recommended impedance: 8 Ω). The internal speaker will be turned off when this connector is used. 13 [SEND] 1/4" output socket for looping in an effects processor. 14 [RETURN] 1/4"...

  • Page 24: Technical Specifications

    Technical specifications Technical specifications Item no. 469677 TUBE5 Celestion Speaker 1 × 8" Celestion Super speaker Input connections Instruments 1/4" phone socket Output connections external speaker (min. impedance 8 Ω) 1/4" phone socket Input impedance 1 MΩ Output power 5 W (RMS) @ 8 Ω (external speaker) Frequency range 80 Hz…10 kHz Signal-to-noise ratio...
  • Page 25 Technical specifications Dimensions (W × H × D) 305 mm × 310 mm × 210 mm Weight 6 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 50 %, non-condensing TUBE5 Celestion TUBE15 Celestion...
  • Page 26 Technical specifications Further information Channels Reverb External effects loop Recording output MIDI port External speaker connector Headphone connection Foot switch connector Incl. foot switch guitar combo...
  • Page 27 Technical specifications Item no. 469683 TUBE15 Celestion Speaker 1 × 12" Celestion Seventy speaker Input connections Instruments 1/4" phone socket Effects device 1/4" phone socket optional footswitch 1/4" phone socket Output connections external speaker (min. impedance 8 Ω) 1/4" phone socket Effects device 1/4"...
  • Page 28 Technical specifications Operating supply voltage 230 V 50 Hz Dimensions (W × H × D) 427 mm × 435 mm × 235 mm Weight 11.5 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 50 %, non-condensing guitar combo...
  • Page 29 Technical specifications Further information Channels Reverb External effects loop Recording output MIDI port External speaker connector Headphone connection Foot switch connector Incl. foot switch TUBE5 Celestion TUBE15 Celestion...

  • Page 30: Plug And Connection Assignment

    Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’...
  • Page 31 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding 1/4"...

  • Page 32: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 33 Notes TUBE5 Celestion TUBE15 Celestion...
  • Page 34 Notes guitar combo...
  • Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
