Carolift Wheelchair lifts

Operation

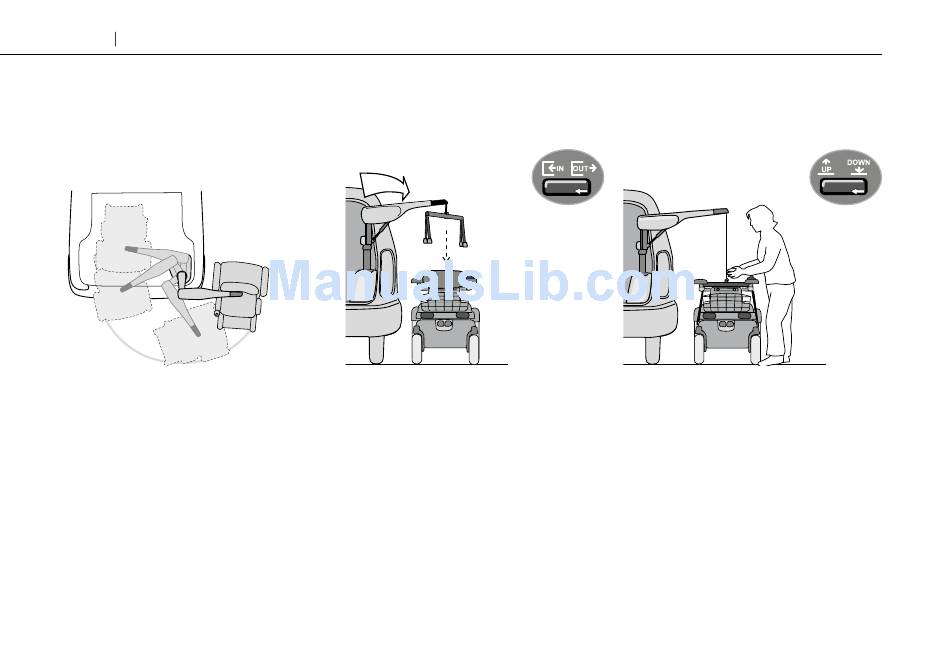

Loading the Carolift 6000
Place the wheelchair with the front in
the opposite direction compared to the
car. Prepare the wheelchair for loading
by removing /folding down the seat back
if fitted.
Swivel out the hoist using the hand
control. Make sure the lift belt with lifting
device is positioned as directly above the
wheelchair's fixing point as possible. Oth-
erwise there is a risk that the wheelchair
can start to swing when lifted.
Lower the lift belt with lifting device,
using the hand control. Hook/tension
the lifting device in the wheelchair's
attachment. Check that the wheelchair is
secured correctly in the hiost.
