AC WIRING ORIGINATION

Lexan cover protects AC Wiring
Compartment Board

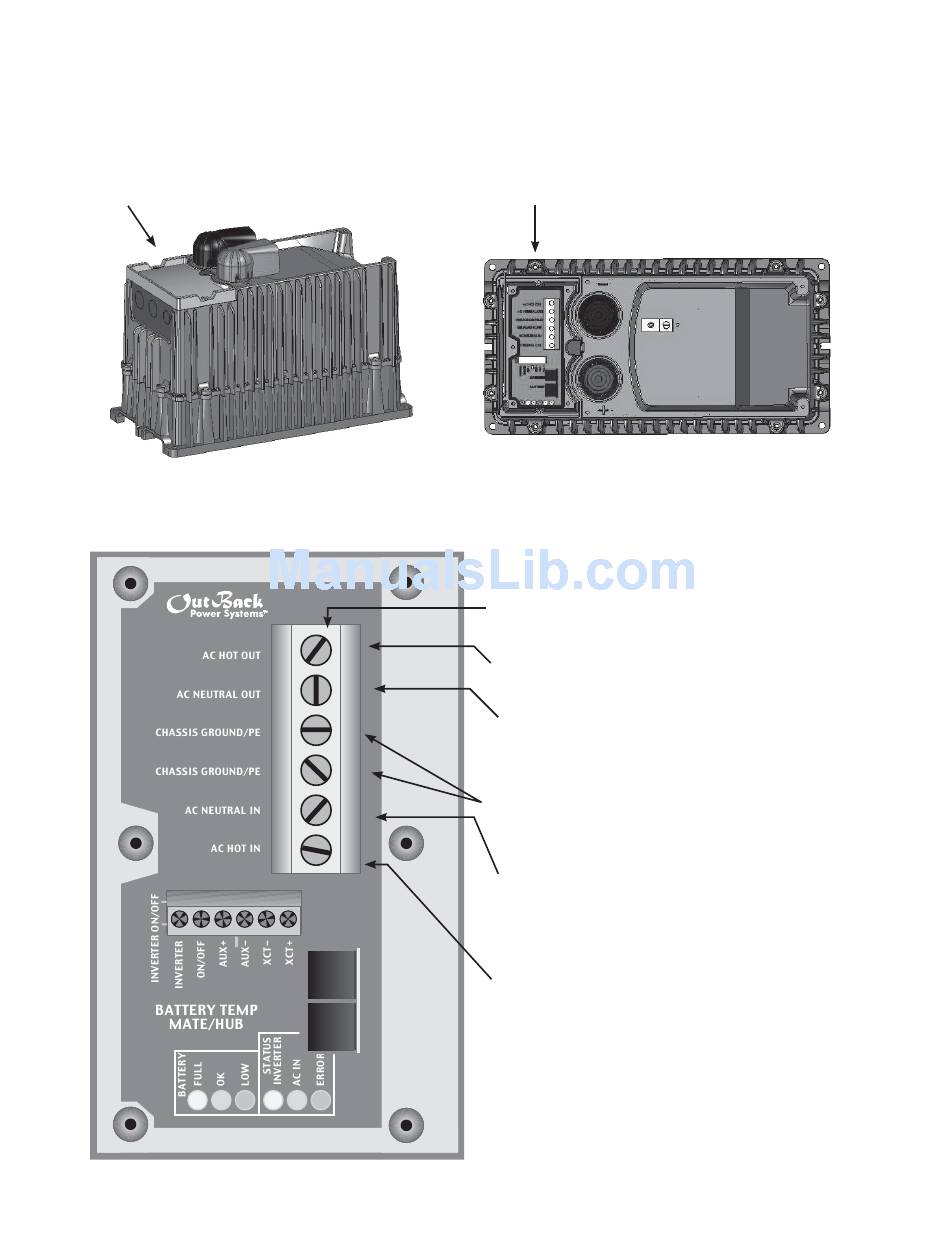

AC WIRING COMPARTMENT BOARD

AC Wiring Board
AC Terminal Block secures AC
connections to the FX using set screws
AC HOT (PHASE) OUT supplies power to the
loads.
AC NEUTRAL OUT acts as neutral leg for loads
supplied by the FX and is common with the AC
NEUTRAL IN.
CHASSIS GROUND connections are common
and act as grounds for both the incoming and
outgoing AC circuits.
AC NEUTRAL IN acts as the neutral leg for AC
power supplied by a generator to the FX and is
common with the AC NEUTRAL OUT.
AC HOT (PHASE) IN connects incoming AC from
the a generator to the FX through an internal AC
transfer relay. This AC is used to run loads and
recharge batteries.
NOTE: 6 AWG) is the largest wire
16.0 mm 2 (
size the AC Wiring Compartment Board can
accommodate.
